51 47 244 Removing and installing/replacing all luggage compartment trims (with ski bag)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .
Remove BACKREST FOR REAR SEAT .

Release screws (1) on ski bag trim (2).

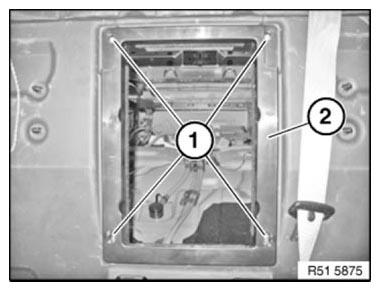

Fig 1: Identifying SKI Bag Trim And Screws

G06885910

Courtesy of BMW OF NORTH AMERICA, INC.

Not with cool box or high-voltage system

Lever out expanding rivets (1).

Remove skibag trim (2).

Remove cover for luggage compartment separating wall (3).

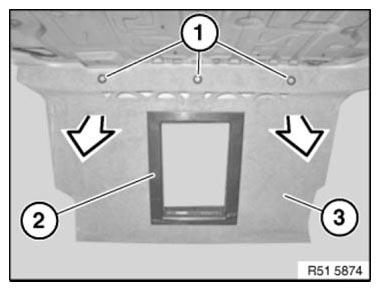

Fig 2: Removing Luggage Compartment Separating Wall Cover

G06885911

Courtesy of BMW OF NORTH AMERICA, INC.

With cool box or high-voltage system

Lever out expanding rivets (1).

Remove skibag trim (2).

Remove cover for luggage compartment separating wall (3).

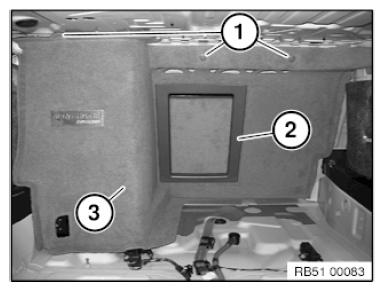

Fig 3: Identifying Luggage Compartment Separating Wall, Skibag Trim And Rivets

G08511880

Courtesy of BMW OF NORTH AMERICA, INC.
