51 47 243 Removing and installing/replacing all luggage compartment trims (without ski bag)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

NOTE: The luggage compartment partition wall F02 with optional equipment rear air conditioning is shown.

Lever out expanding rivet (1).

Feed out luggage compartment partition wall (2).

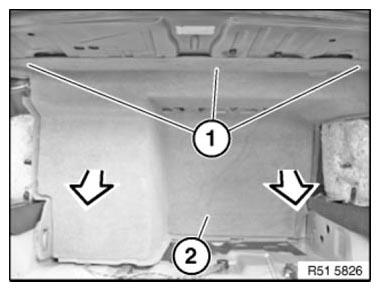

Fig 1: Removing Luggage Compartment Separating Wall

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement of luggage compartment partition wall only F02 with rear air conditioning:

If an old version of the luggage compartment partition wall is installed, it must be converted to the new version.

For this purpose, replace the removed left and right luggage compartment wheel arch panels. See REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM and REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .
