51 47 077 Removing and installing/replacing illuminated rocker panel trim on rear left or right entrance (outer)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary work:
- Remove REAR LEFT DOOR SILL COVER STRIP .

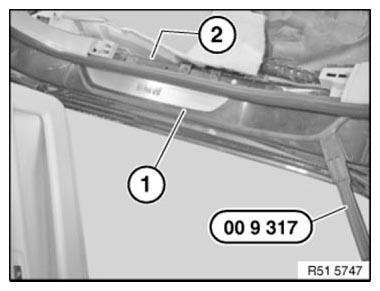

Lift out cover (1) with special tool 00 9 317 in upward direction.
Disconnect plug connection (2).
Remove cover (1).

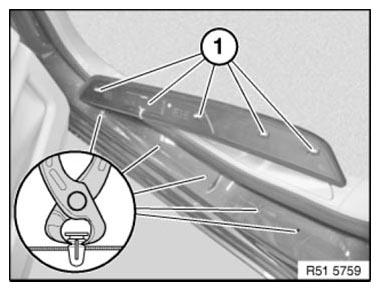

If necessary, remove clips.
If necessary, lever clips out of entrance with suitable tool.
