52 24 400 Replacing seat cover for rear seat

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SEATS - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

52 0 050

Necessary Preliminary Tasks:

Remove seat frame. Refer to 52 24 037 REMOVING AND INSTALLING/REPLACING SEAT FRAME .

Detaching cover and padding:

If necessary, mark seating of retainers.
Release retainers in marked areas.
Remove seat cover from padding.
Remove all remaining retainers from seat cover and/or padding.

Installation:

Feed cable through hole in padding.
Insert new retainers with special tool 52 0 050. In so doing, enclose wire in padding and trim wire of cover.

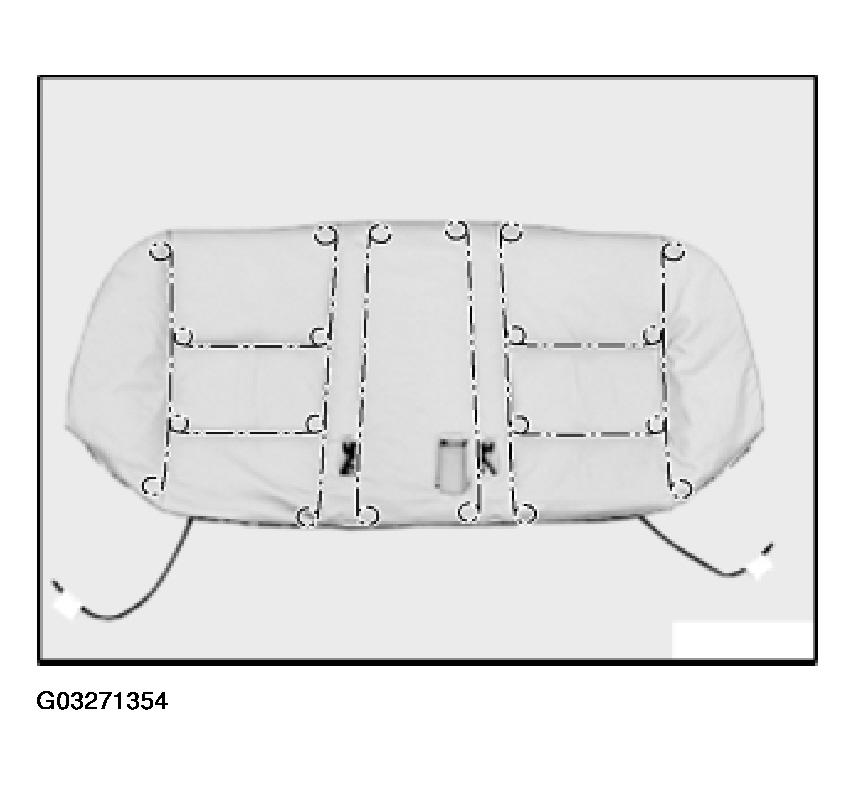

Fig 1: View Of Seat Cover Retainers
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Pull all trim wires out of seat cover.
If necessary, cut in take-up for trim wires of new cover.
Push trim wires into new seat cover.

Fig 2: Locating Trim Wires In Seat Cover
Courtesy of BMW OF NORTH AMERICA, INC.
