52 16 095 Removing and installing/replacing thigh support holder on front left or right seat (sports/electric)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Move thigh support forwards fully.

Unfasten plug connection (1) and disconnect.

Release screws (2).

Installation:

Insert screws (2) with Loctite.

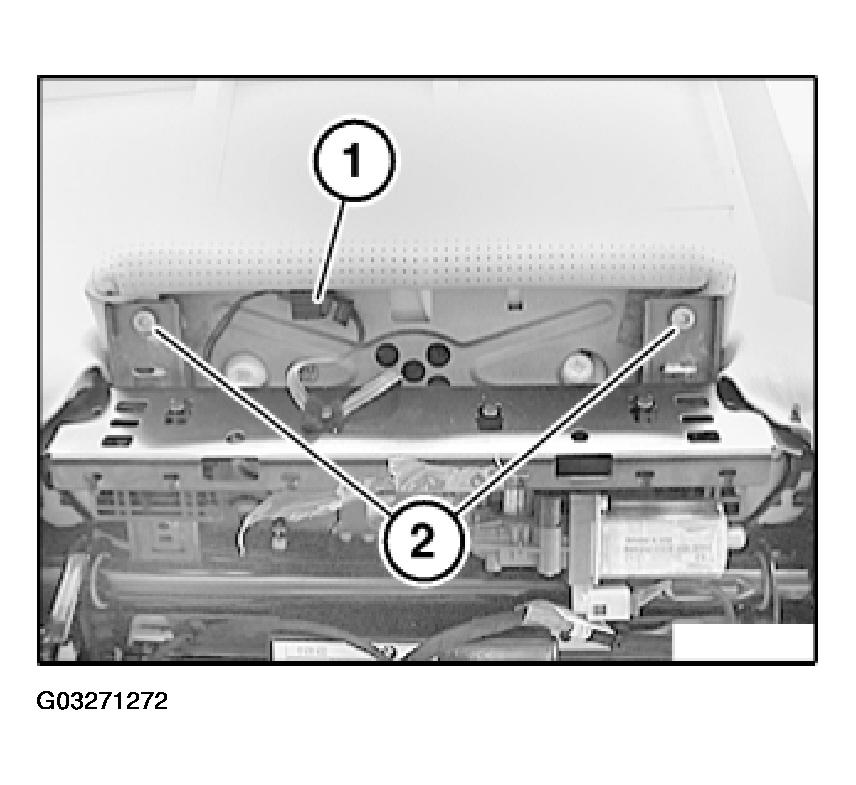

Fig 1: Identifying Retaining Screws Of Thigh Support Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Detach seat cover (1) in marked area from carrier (2) for thigh support.

Feed plug out of carrier (2) for thigh support.

Remove carrier (2) for thigh support.

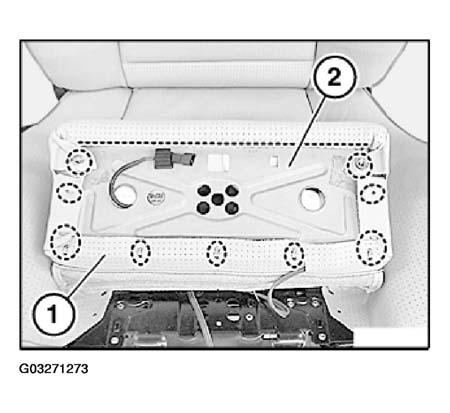

Fig 2: View Of Seat Cover On Carrier For Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.
