52 14 041 Removing and installing inner cover on left or right front seat (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) ..

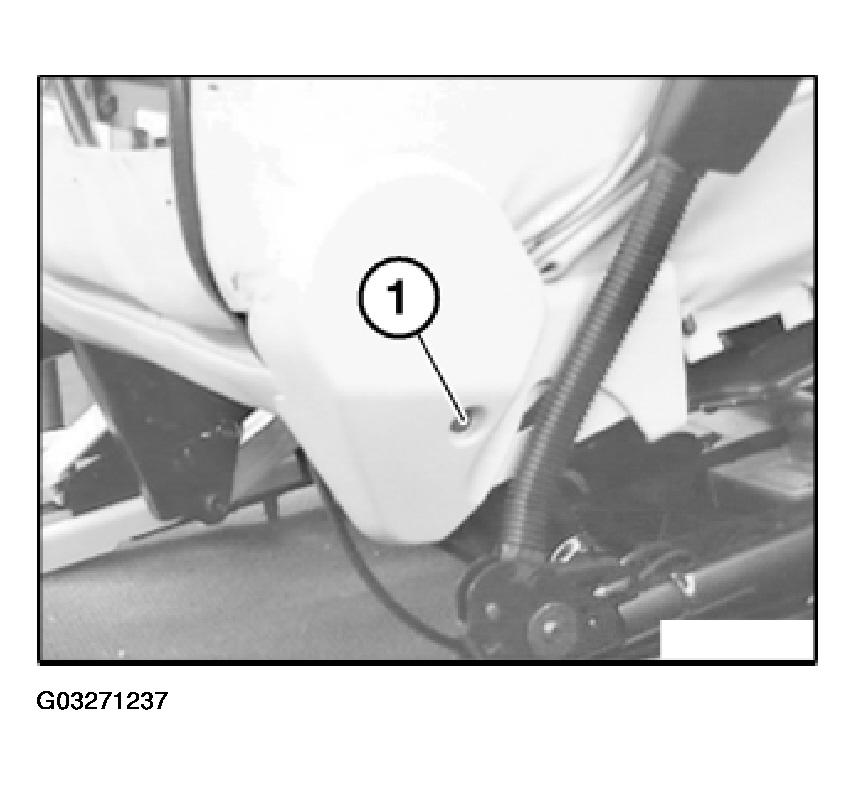

Unscrew bolt (1).

Fig 1: Locating Bolt Of Inner Cover On Front Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

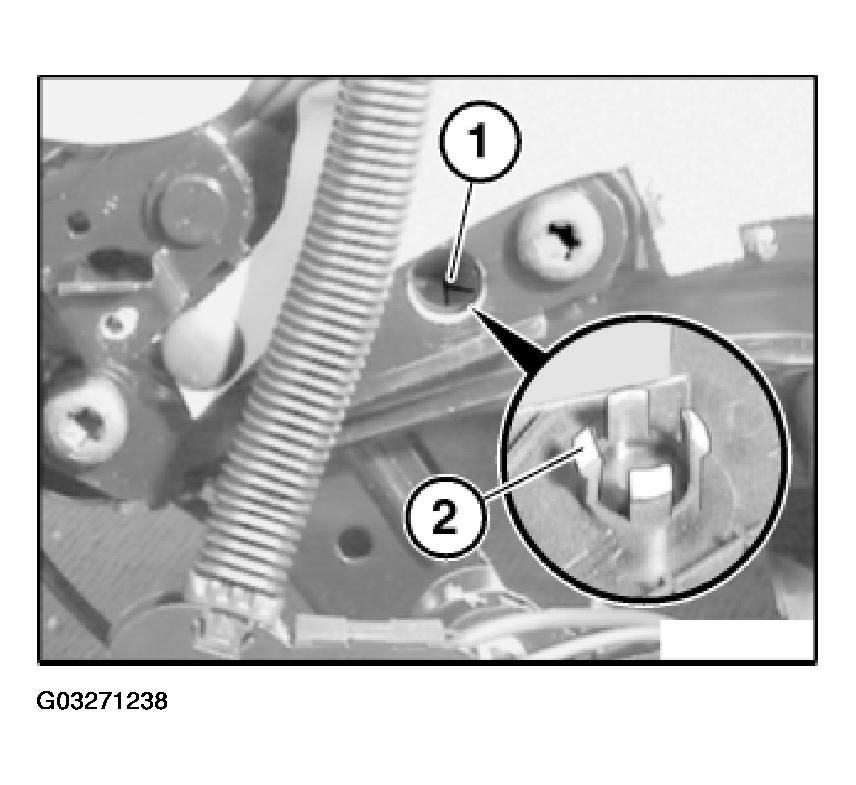

Cover is secured by guide (2) in hole (1).

Fig 2: View Of Guide

Courtesy of BMW OF NORTH AMERICA, INC.
