11 12 729 Checking cylinder head for watertightness (N63)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

Remove left cylinder head.
Remove right cylinder head.
Remove ALL VALVES .

NOTE: Set of special tools 11 8 080 can be used for cylinder bank 1 to 4 and cylinder bank 5 to 8.

Position special tool 11 8 081 on cylinder head.

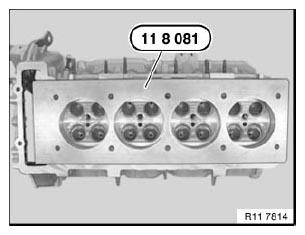

Fig 1: Positioning Special Tool 11 8 081 On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 8 083 and tighten in sequence (1 to 10) in several steps.

Tightening torque: 25 Nm

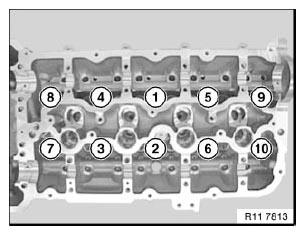

Fig 2: Cylinder Head Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vent screw (1).

Tightening torque: 11 12 8 AZ .

Installation note:

Replace sealing ring.

Fig 3: Identifying Vent Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Max: 0.8 Nm.

Screw in special tool 11 8 082 with suitable tool and special tool 00 9 250 to 0.8 Nm.

Connect compressed air hose with pressure gauge.

Immerse cylinder head in a water bath.

Inspection pressure 4.0 bar.

Check cylinder head for escaping air (cracks).

Fig 4: Screwing In Special Tool (11 8 082)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If necessary, add cleaning agent to water bath.

Assemble engine.
