64 51 600 Removing and installing/replacing evaporator for rear air conditioner (F02 only)

Necessary preliminary tasks:

• Remove REAR AIR CONDITIONER .
• REMOVE RIGHT FLAP ACTUATOR DRIVE .

Release screws (1) on flange holder (2).

Installation note:

Make sure flange holder (2) is correctly seated in designated guide on rear air conditioner housing.

Fig 1: Identifying Flange Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

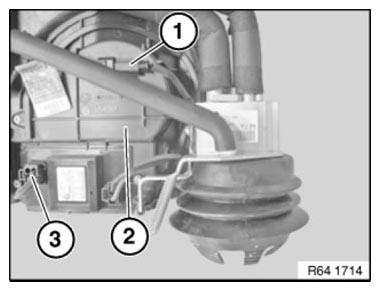

Unfasten plug connection (1) and disconnect.

Unclip associated plug housing from blower motor cover (2).

Unlock plug connection (3) and disconnect.

Fig 2: Identifying Plug Connection And Blower Motor Cover

Courtesy of BMW OF NORTH AMERICA, INC.

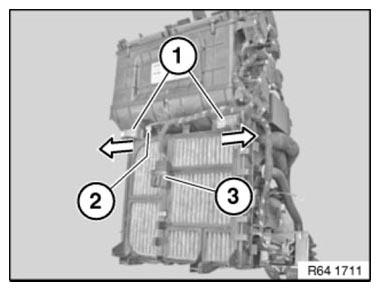

Slide retaining clasps (1) in direction of arrow and remove.

Unlock plug connections (2) and disconnect.

Snap plug housing (3) out of filter housing and remove.

Fig 3: Sliding Retaining Clasps

Courtesy of BMW OF NORTH AMERICA, INC.

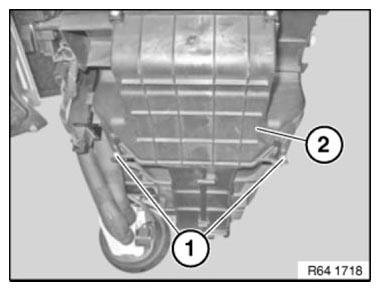

Release screws (1).

Remove upper housing section (2) from lower housing section.

Fig 4: Identifying Upper Housing Section And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

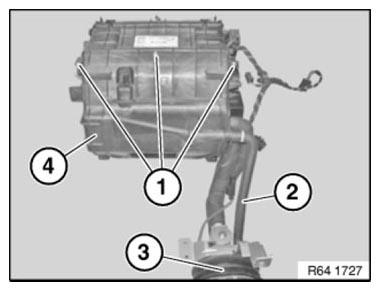

Release screws (1).

Pull condensation water drain hose (2) out of gaiter (3).

Remove evaporator housing (4).

Fig 5: Identifying Condensation Water Drain Hose, Gaiter, Evaporator Housing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

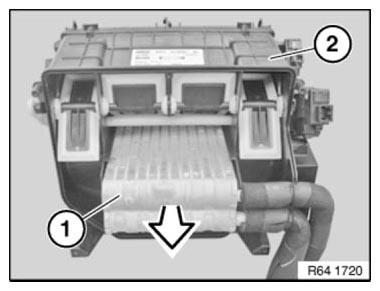

Remove evaporator (1) in direction of arrow out of upper housing section (2).

Fig 6: Removing Evaporator

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Remove EXPANSION VALVE .
