17..... Replace the mounts for the module carrier on top and bottom (N63, N74)

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750i, and 2015 BMW 750Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Only if the rubber mount for the top module carrier has to be removed:
Remove CROSS CONNECTION .
Only if the rubber mount for the bottom module carrier has to be removed:
Remove front UNDERBODY PROTECTION .

Removing the rubber mount for the top module carrier

Remove the rubber mount (1) from the upper section of the module carrier from the top.

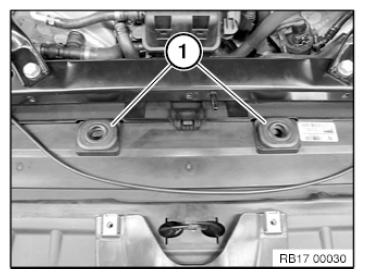

Fig 1: Identifying Rubber Mount

G08504310

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apply mounting lubricant to the new rubber mounts (1) prior to installation.

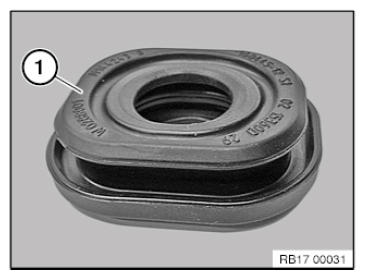

Fig 2: Identifying Rubber Mount

G08504311

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the rubber mount for the bottom module carrier

Release screws (1) on left and right on holder for module carrier.

Tightening torque 17 10 10AZ .

Fig 3: Identifying Holder Screws

G08504299

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture shows left side. Procedure on right side identical.

Lift module carrier (1) upwards slightly.

Disengage holder with rubber mount for module carrier (2) from bumper support (3).

Fig 4: Disengaging Module Carrier Holder From Bumper Support

G08504302

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Picture shows left side. Procedure on right side identical.
For purposes of clarity, the graphic shows the front bumper removed.

Pull holder with rubber mount for module carrier (1) off module carrier (2), feed out and remove.

Installation note:

Apply mounting lubricant to the new rubber mounts prior to installation.

Fig 5: Removing Module Carrier Holder

G08504303

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
