51 36 047 Replacing trim on rear left or right door window (Z3 Coupe, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Ensure car is at room temperature (> 18 °C), if necessary, heat up adhesive area.

Adhesion is not guaranteed below this temperature (formation of condensation water).

Remove trim (1) from side window (2) with special tool 00 9 318 (universal wedge) or special tool 00 9 322 (adhesive wedge).

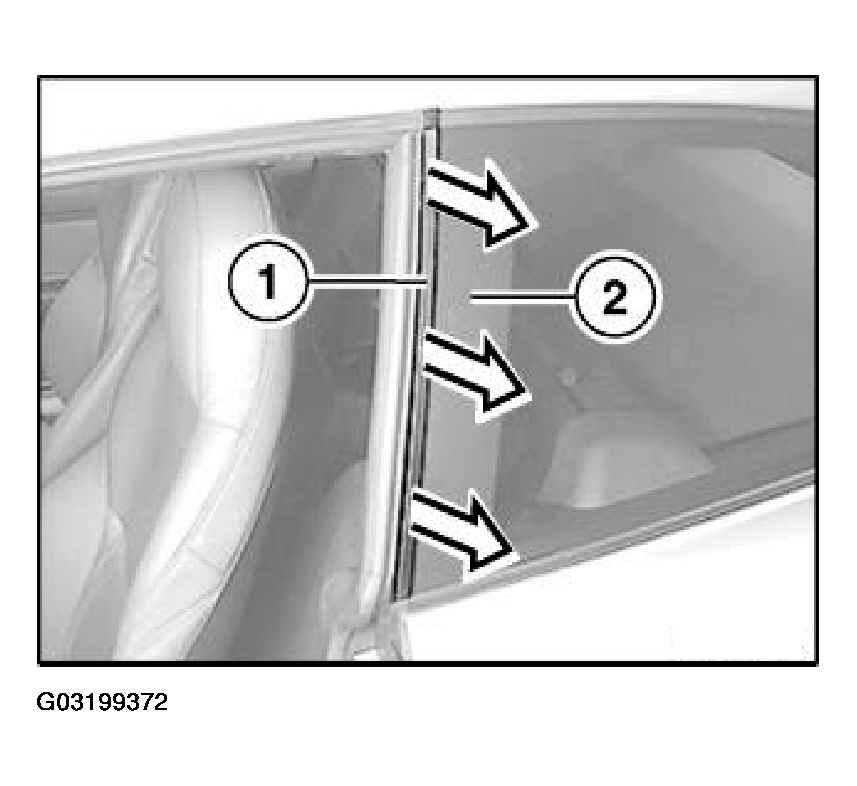

Fig 1: Removing Trim From Side Window
G03199372Courtesy of BMW OF NORTH AMERICA, INC.
