Only for removing luggage compartment lid lock (trunk lid lock upper part):
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Remove tailgate trim panel, refer to 51 49 008 REMOVING AND INSTALLING (ENTIRE) TAILGATE TRIM (Z3 COUPE, M COUPE)

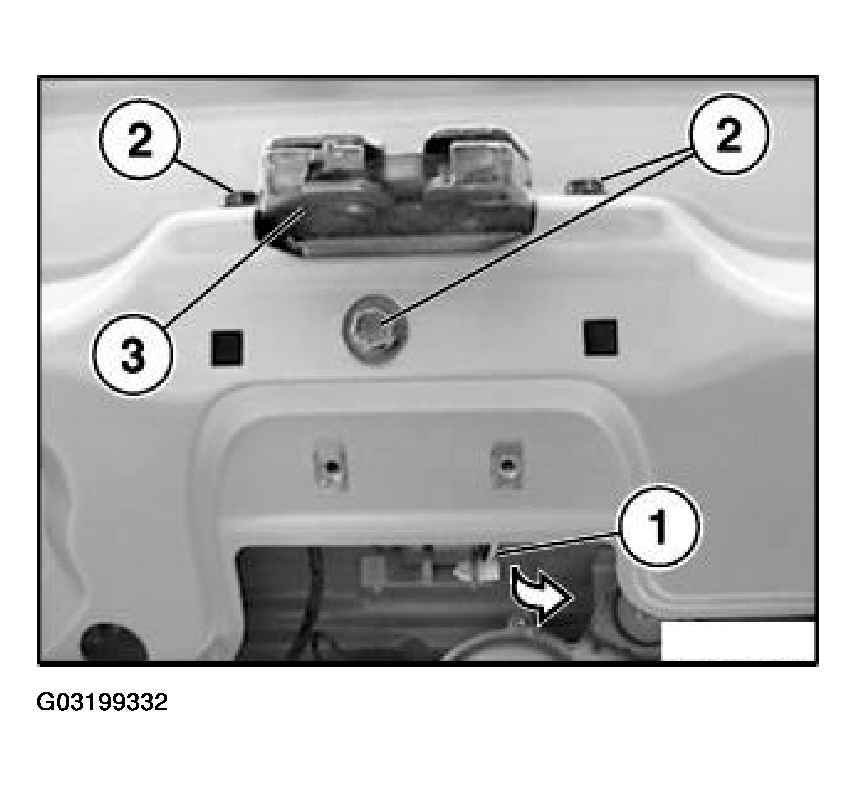

Lift out actuating rod (1).
Unfasten screws (2).
Push luggage compartment lid lock (3) into tailgate and to right.
