51 24 040 Removing and installing/replacing luggage compartment lid lock and striker (Z3 coupe, M coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Mount actuating rod tension-free and readjust if necessary.

Check operation with trunk lid open.

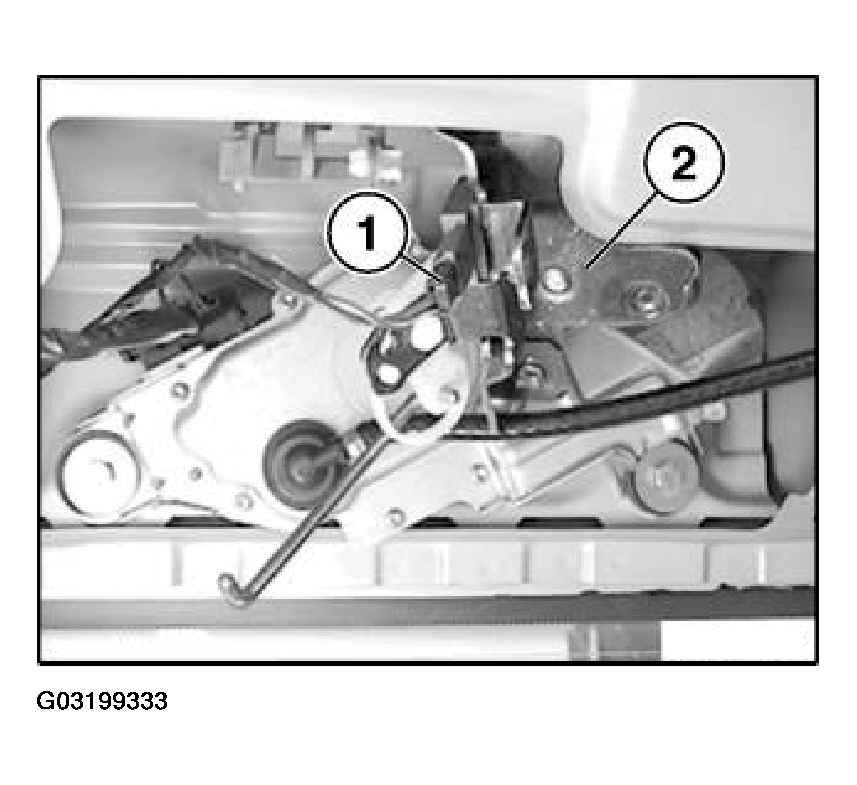

Disconnect plug connector (1) and remove luggage compartment lid lock (2).

Fig 1: Removing Luggage Compartment Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust luggage compartment lid lock. .

NOTE: Operation "Removing and installing/replacing luggage compartment lid lock" ends here.

Removing and installing/replacing striker for luggage compartment lid lock, refer to 51 24 130 .
