51 49 511 Replacing tailgate trim at top (Z3 coupe, M coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing tailgate trim, refer to 51 49 008 REMOVING AND INSTALLING (ENTIRE) TAILGATE TRIM (Z3 COUPE, M COUPE)

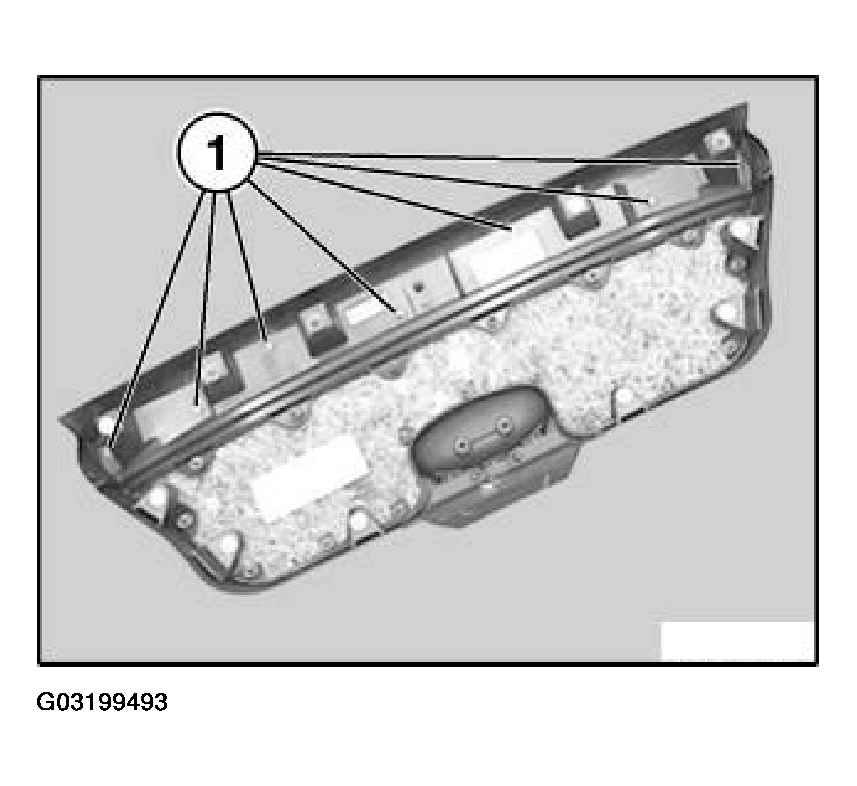

Unscrew bolts (1).

Fig 1: Locating Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

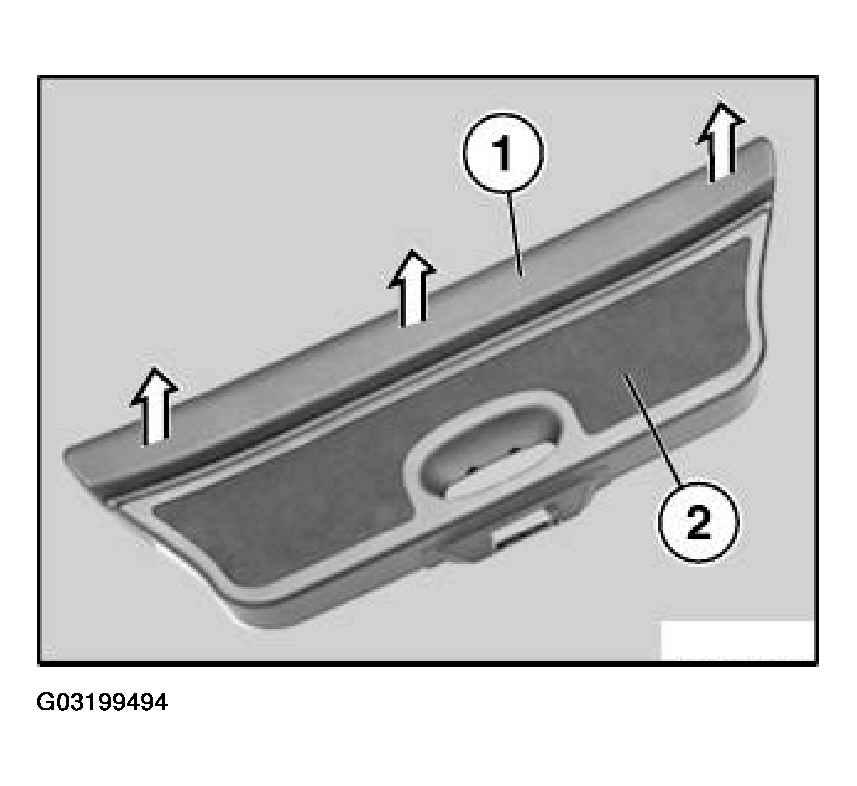

Pull tailgate trim (1) at top off panelling (2).

Fig 2: Removing Tailgate Trim

Courtesy of BMW OF NORTH AMERICA, INC.
