51 49 015 Removing and installing/replacing trim for rear window frame at top (Z3 coupe, M coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

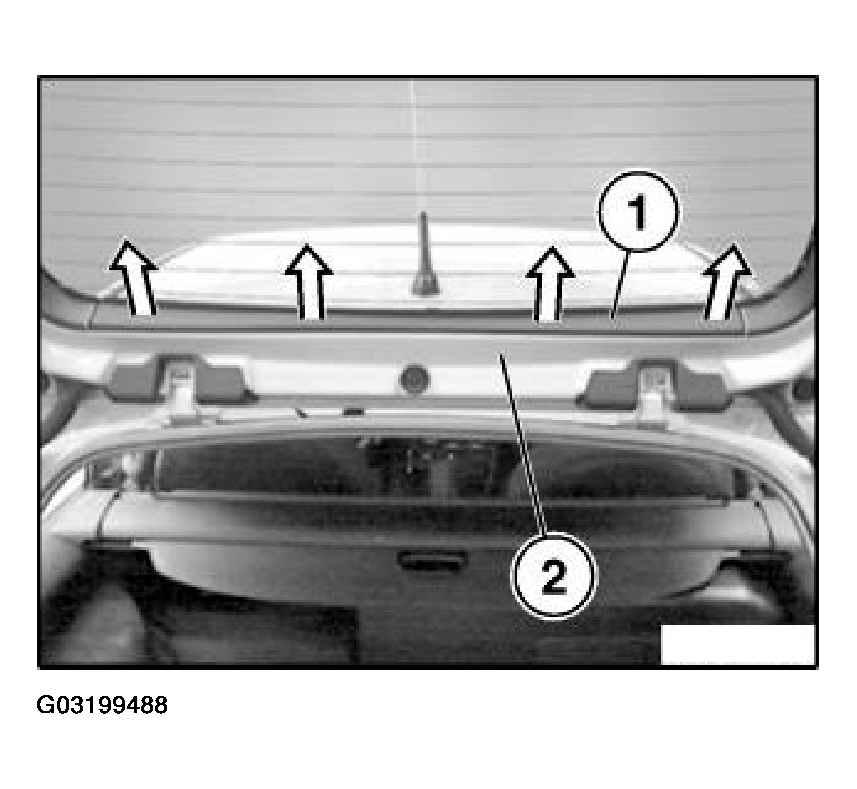

Pull trim (1) off rear window frame (2).

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

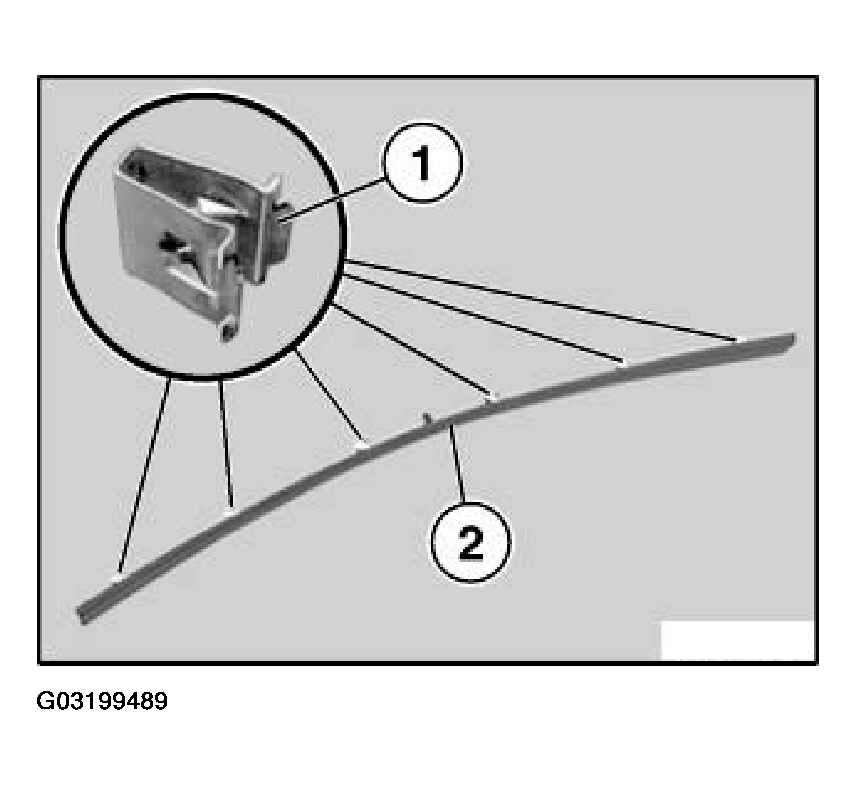

If necessary, pull clips (1) off trim (2) and insert in rear window frame.

Fig 2: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.
