51 12 000 Removing and installing complete rear bumper (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Installation:

Tightening Torque, refer to 51 12 REAR BUMPER .

6-cylinder engines only:

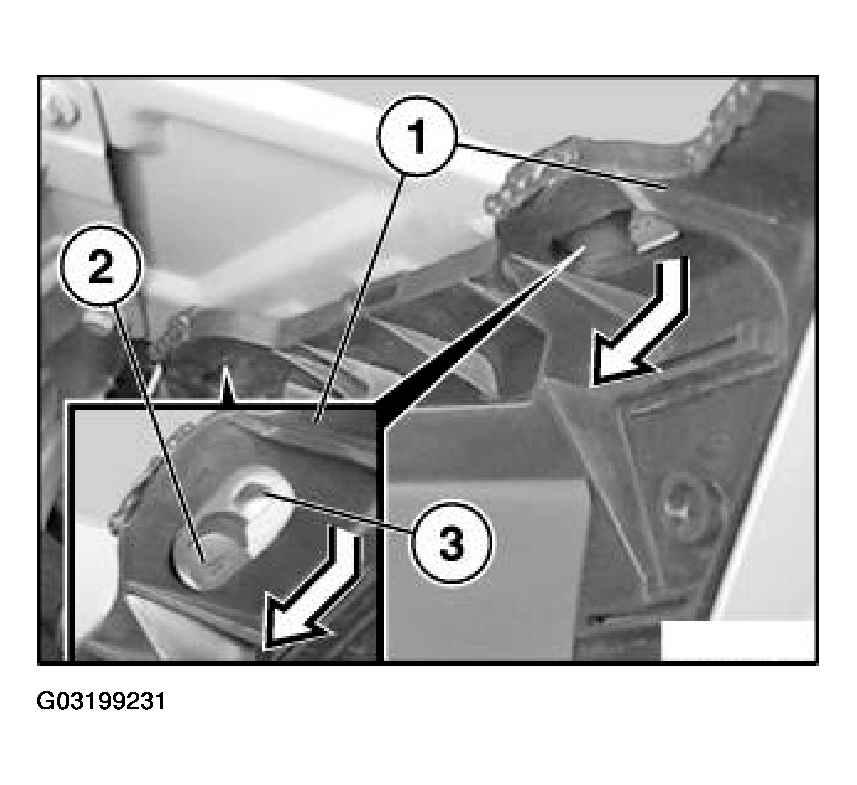

Push bumper (1) forwards until clips (2) are located in assembly opening.

Fig 1: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

6-cylinder engines only:

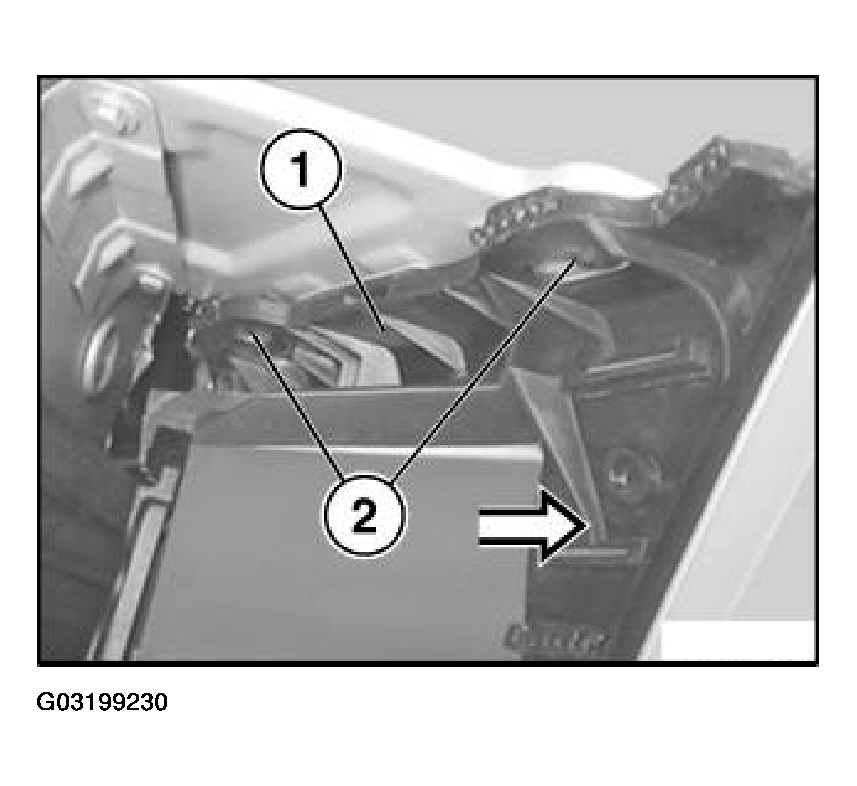

Press bumper (1) downwards/towards rear until clips (2) are out of assembly opening (3).

Fig 2: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

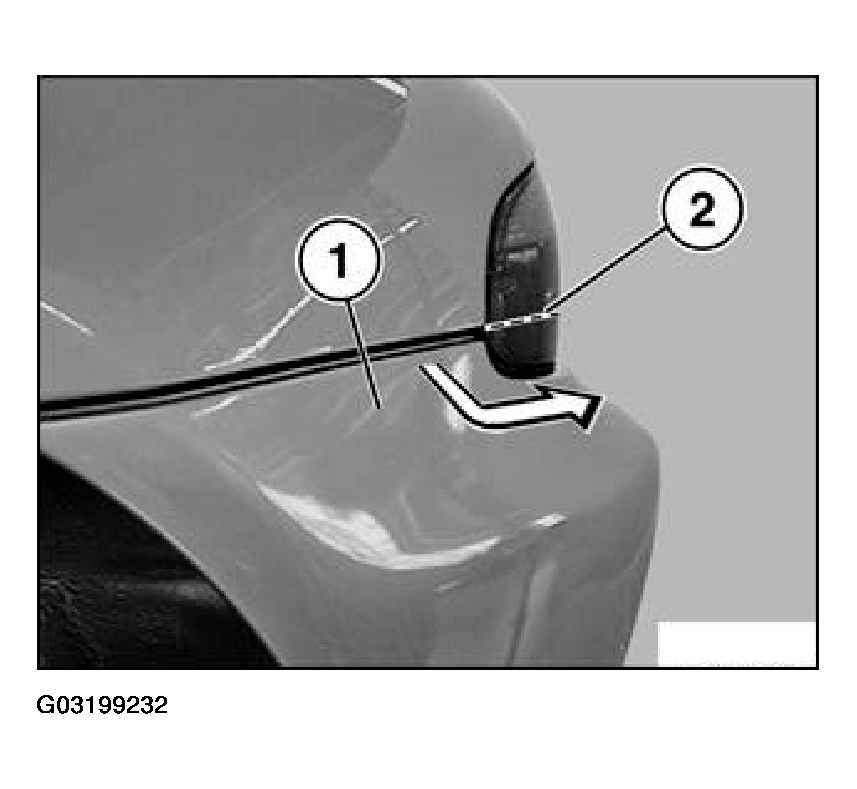

Carefully press bumper (1) from wheel housing over tail lights (2) on left/right (risk of damage to tail light rubber) and remove bumper (1) towards rear.

Fig 3: Removing Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

6-cylinder engines only:

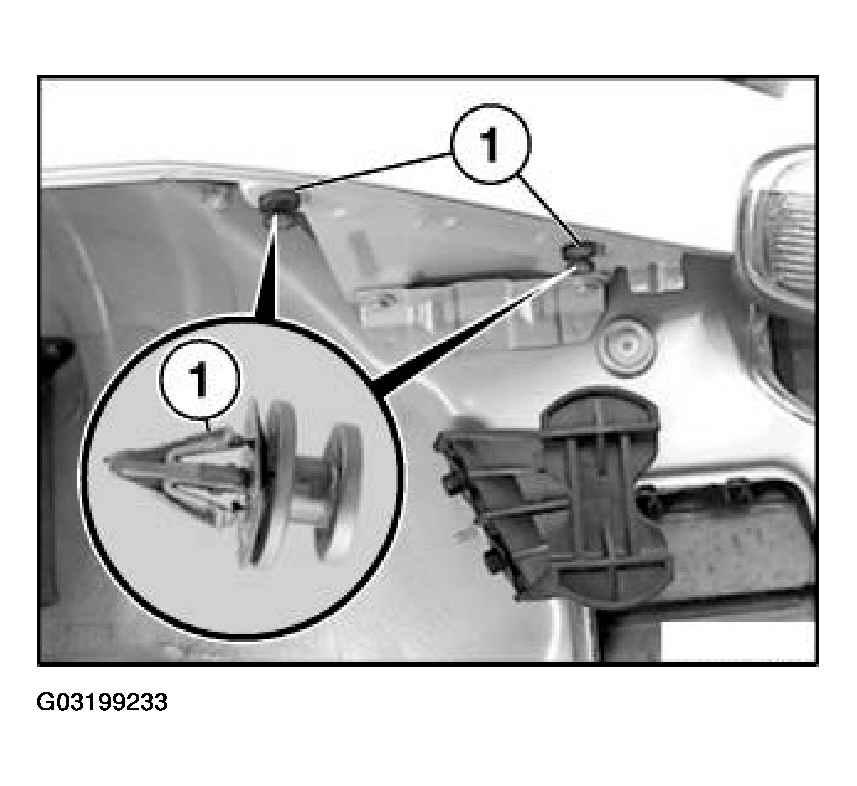

If necessary, replace defective clips (1).

Fig 4: Removing Defective Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening Torque, refer to 51 12 REAR BUMPER .

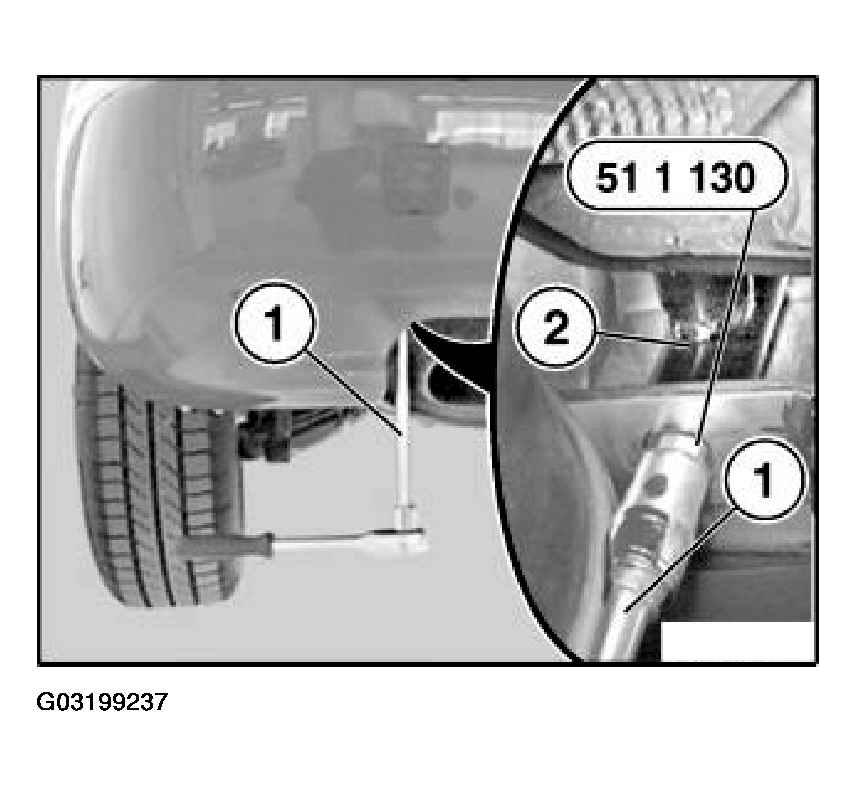

Insert special tool 51 1 130 on standard extension (1) through bore with reversible handle into shock absorber (2).

Fig 1: Inserting Special Tool Into Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

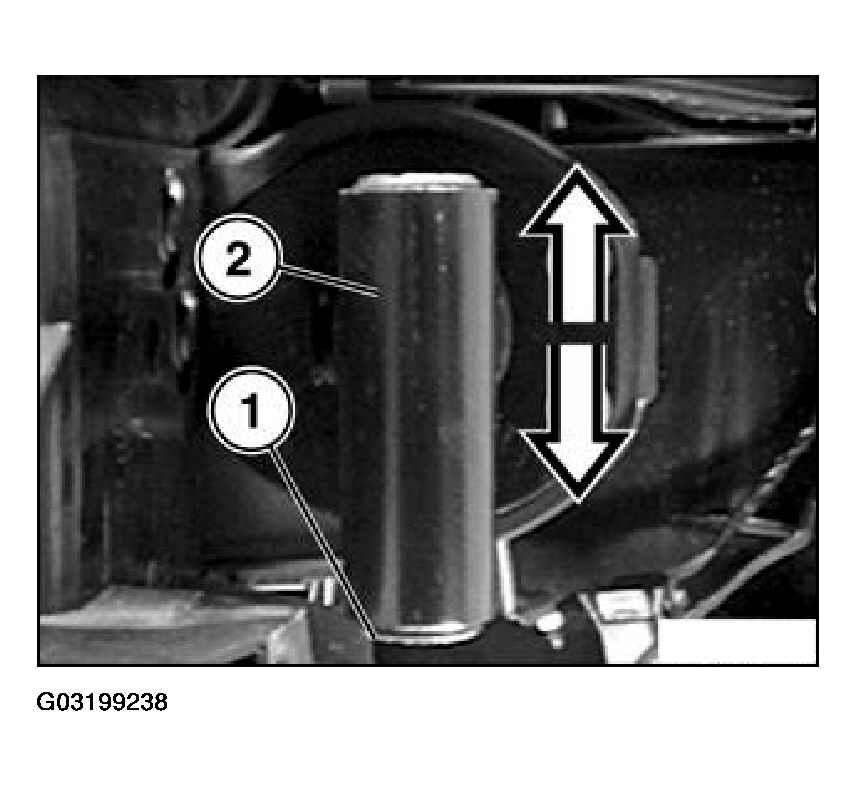

Height of bumper (in rear area) is now set by twisting socket head cap screw (1) in shock absorber (2).

Fig 2: Adjusting Height Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.
