51 46 041 Removing and installing/replacing luggage compartment separating wall trim on left or right (Z3 coupe, M coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear storage box, refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE BOX (Z3 COUPE, M COUPE) .

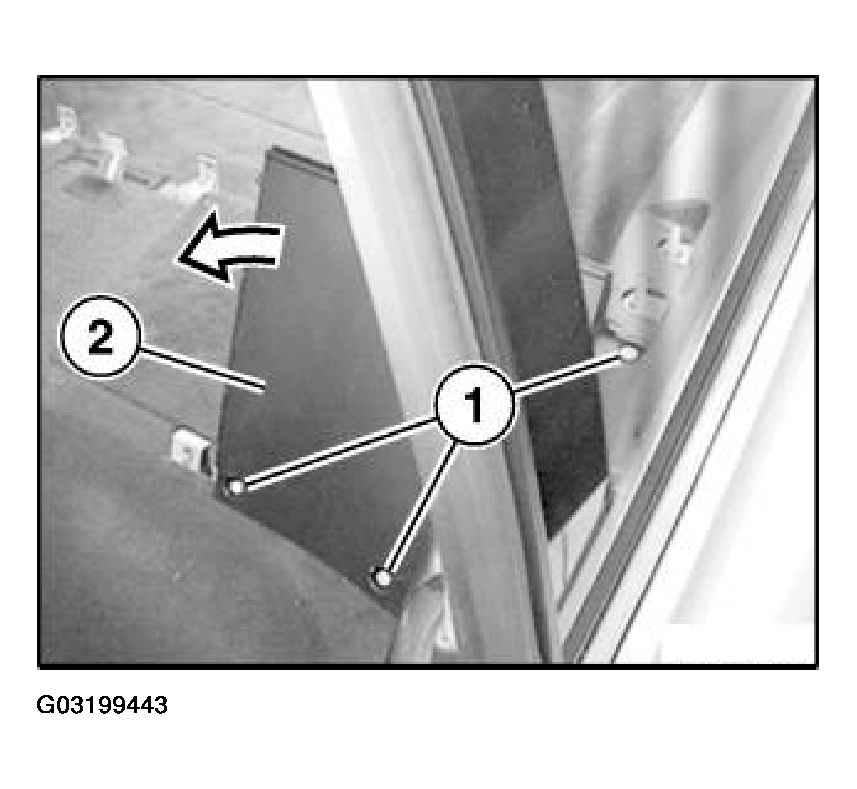

Unfasten screws (1) and remove luggage compartment separating wall (2).

Fig 1: Removing Luggage Compartment Separating Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

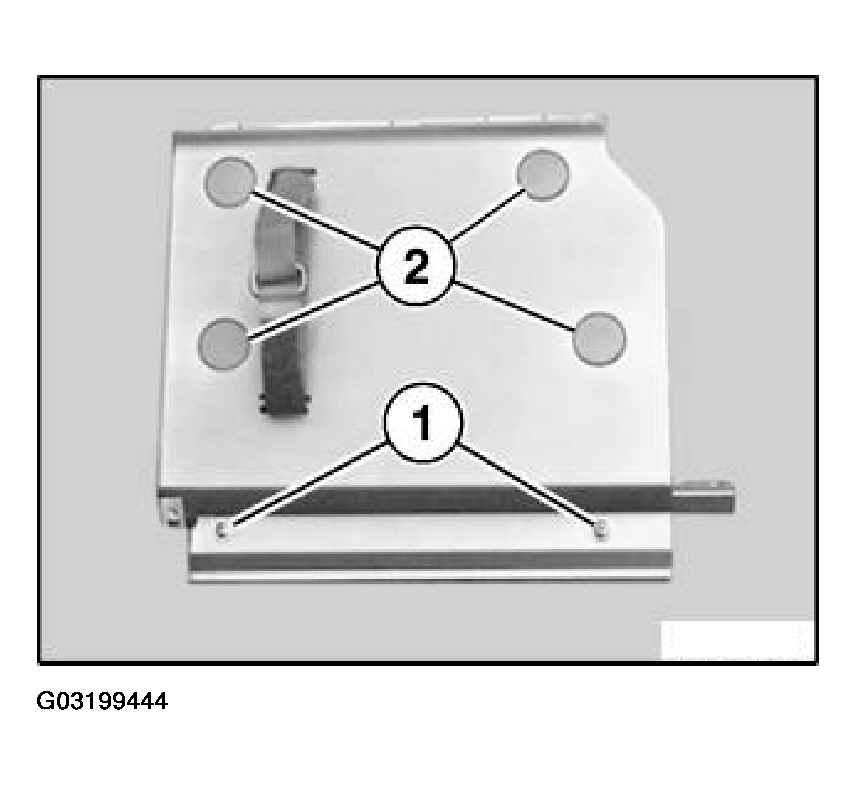

Unscrew bolts (1). Lift out finisher strips (2) and unfasten screws.

Pull front section off rear section.

Fig 2: Removing Finisher Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

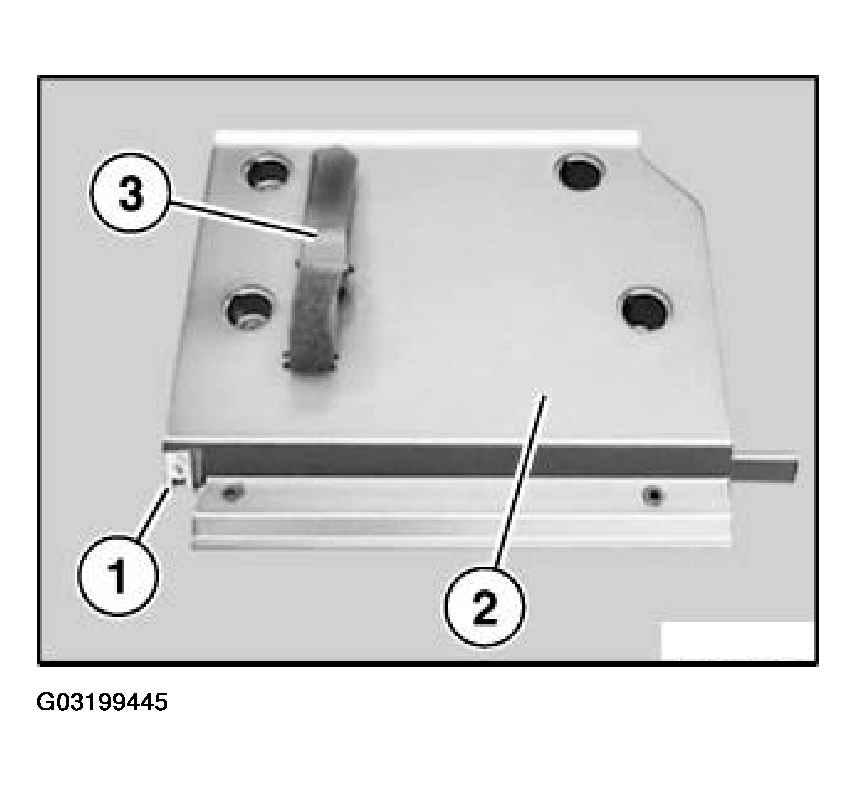

Pull sheet metal nut (1) off trim (2).

Left-hand trim only:

Open Velcro (3) and remove.

Fig 3: Removing Sheet Metal Nut

Courtesy of BMW OF NORTH AMERICA, INC.
