51 16 360 Removing and installing glovebox, right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

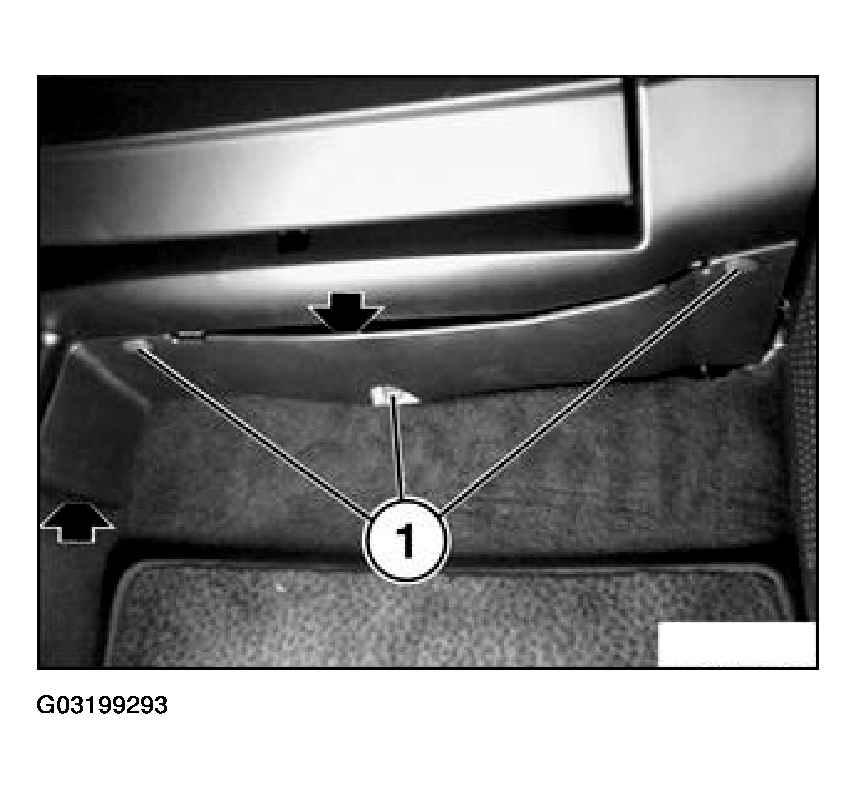

Release rotary clips (1) at bottom and lever out lower trim panel on left (risk of damage) and center.

Fig 1: Releasing Rotary Clips At Bottom

Courtesy of BMW OF NORTH AMERICA, INC.

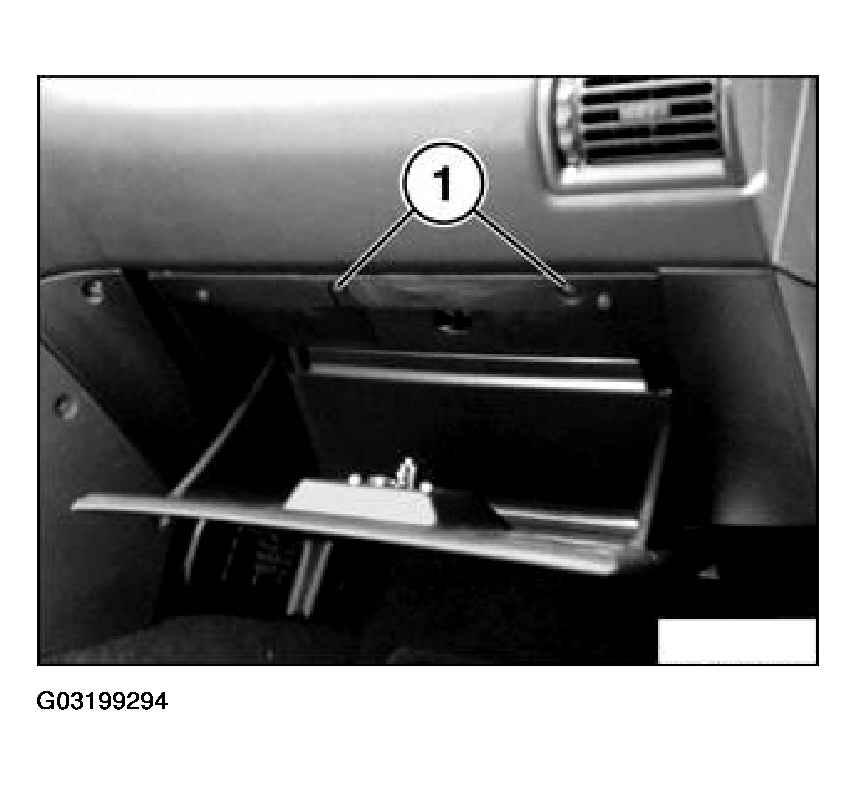

Open glove compartment cover.

Lift out finisher strips (1) and unfasten screws.

Fig 2: Removing Finisher Strips

Courtesy of BMW OF NORTH AMERICA, INC.

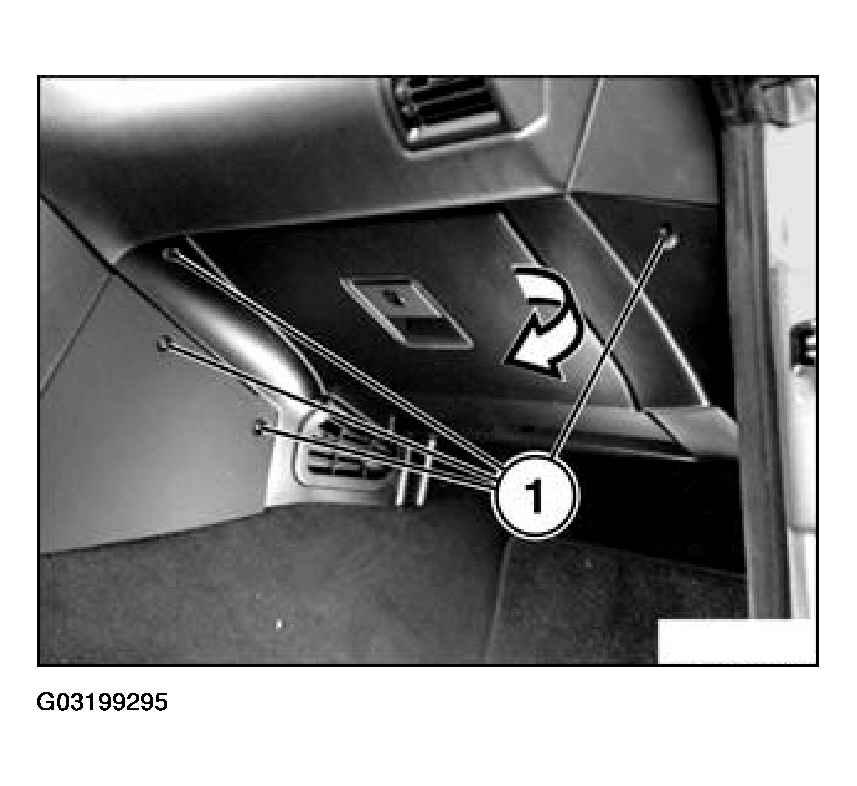

Close glove compartment cover.

Lift out finisher strips (1) and unfasten screws. Remove glove compartment outward/downward.

Fig 3: Removing Glove Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
