51 16 340 Removing and installing/replacing lock for glovebox, right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Perform function check on removed lock.

NOTE: The operation "Removing and installing/replacing glovebox lock" for US version ends here.

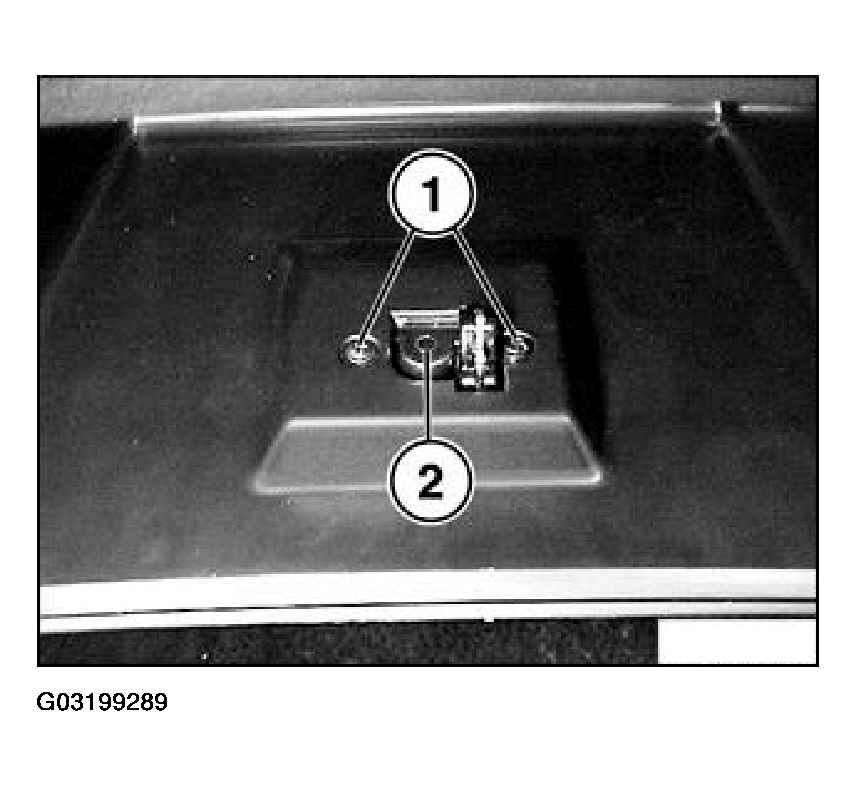

Unfasten screws (1) and remove lock (2).

Fig 1: Removing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

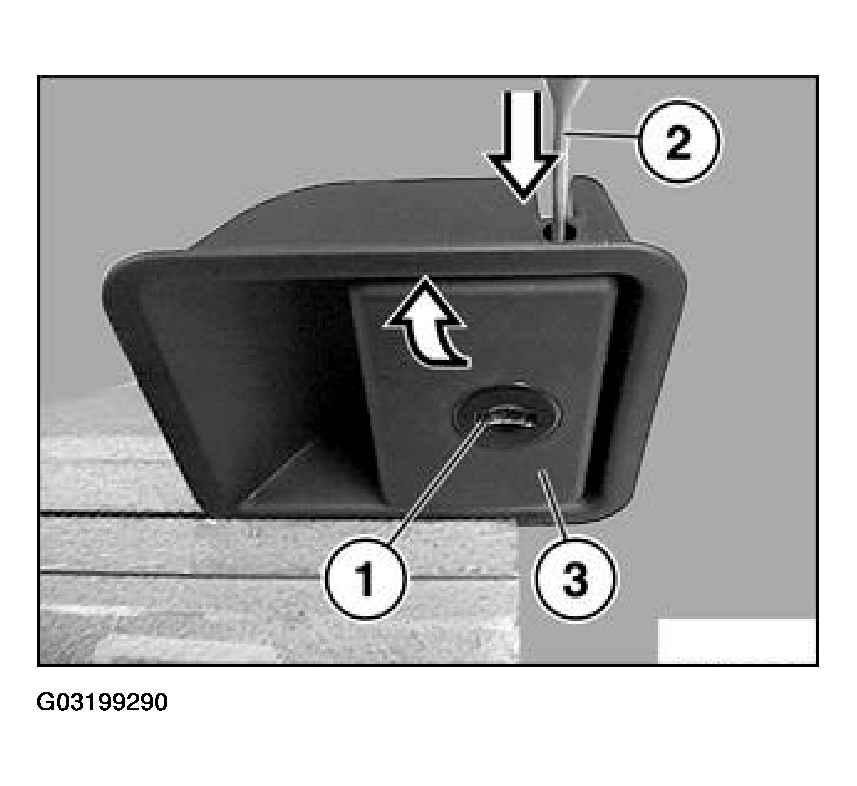

NOTE: The lock cylinder (1) must remain in open position.

Clamp lock in vise. Drive out pin with punch (2) until handle (3) can be pulled upwards and removed.

Fig 2: Driving Out Pin

Courtesy of BMW OF NORTH AMERICA, INC.

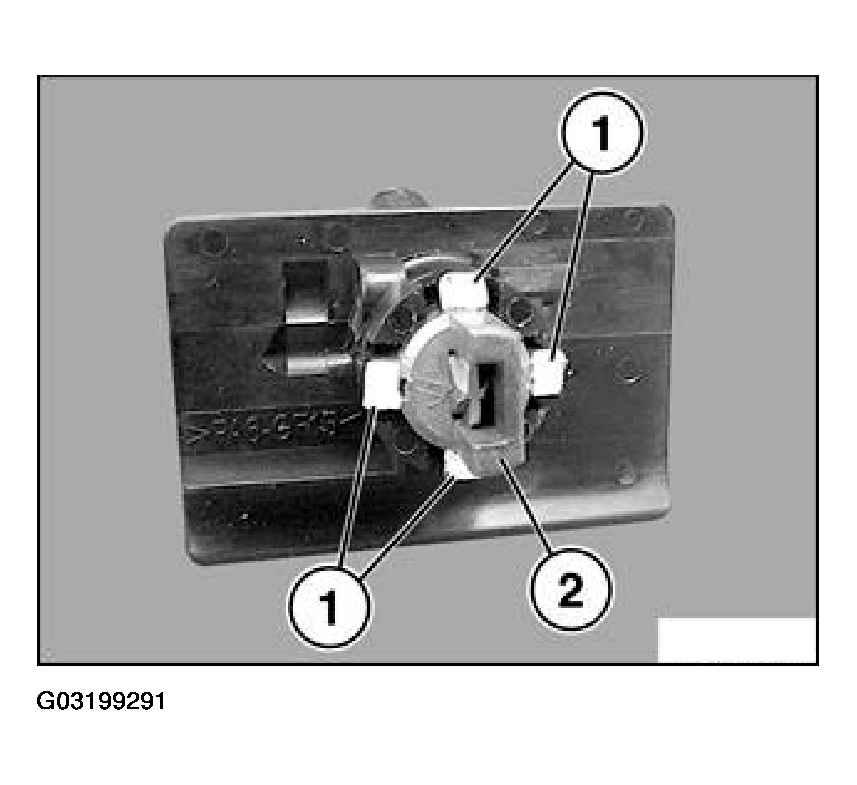

Insert vehicle key in lock cylinder (2).

Break open locks (1) if necessary and pull out lock cylinder (2) with vehicle key.

Fig 3: Inserting Vehicle Key In Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not pull vehicle key.
Do not pull vehicle key out of removed lock cylinder (retainers and springs would drop out of lock cylinder).

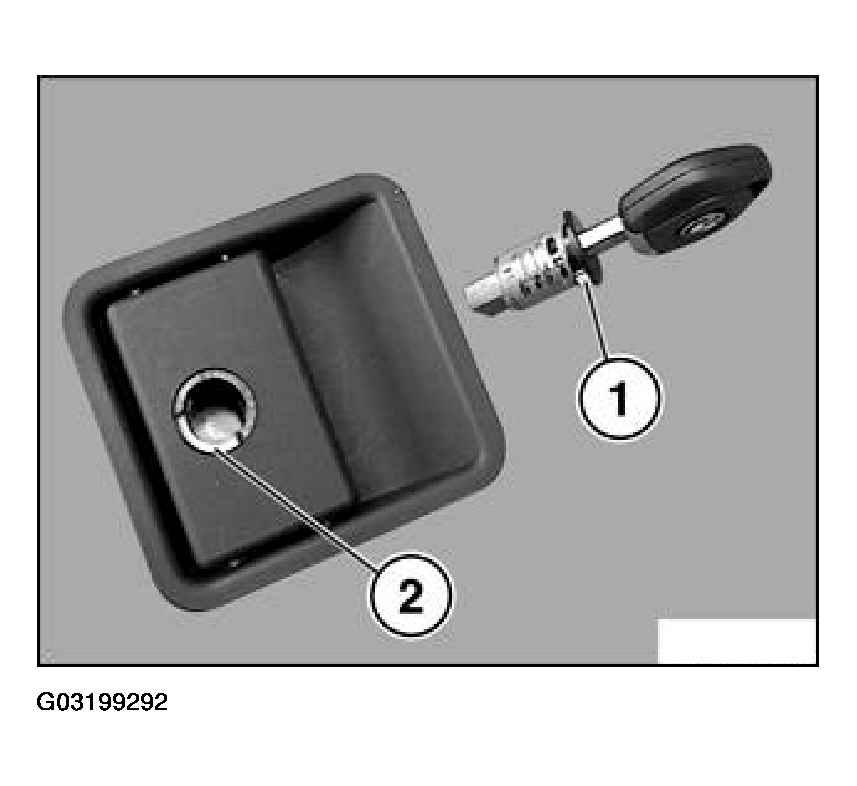

Insert lock cylinder with aperture (1) in groove (2) of locking disc.

Fig 1: Installing Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Perform function check on removed lock.
