51 16 241 Replacing rear storage box (Z3 coupe, M coupe)

Remove rear storage box, refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE BOX (Z3 COUPE, M COUPE)

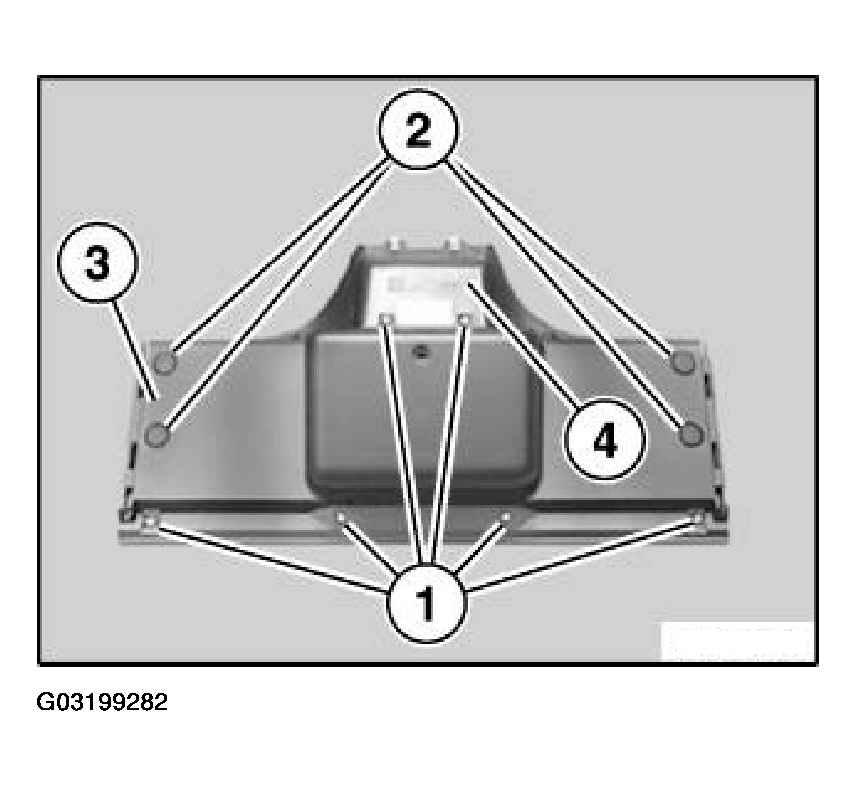

Unscrew bolts (1). Lift out finisher strips (2) and unfasten screws. Pull front section (3) off rear section (4).

Fig 1: Removing Finisher Strips

Courtesy of BMW OF NORTH AMERICA, INC.

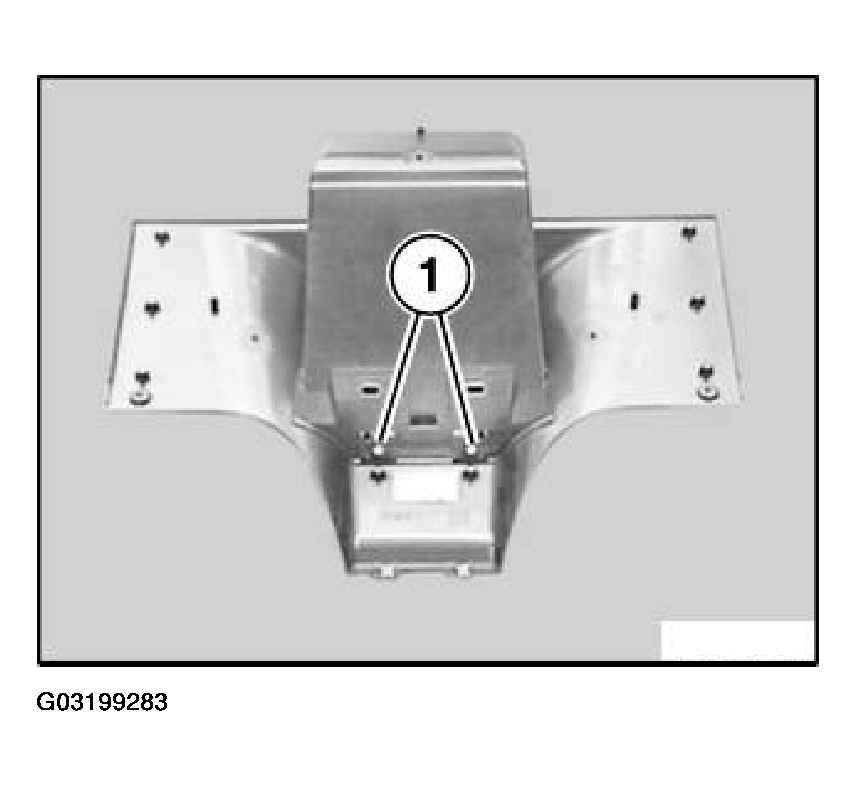

Unscrew bolts (1).

Fig 2: Removing Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

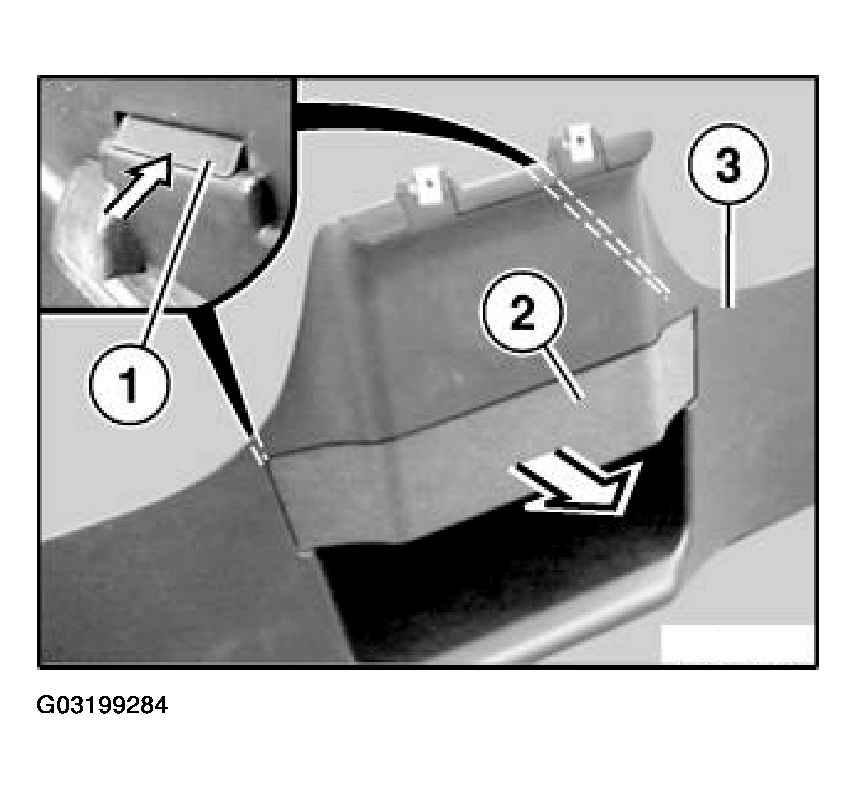

Release left/right detent (1) and pull finisher (2) off storage box (3).

Fig 3: Removing Finisher From Storage Box

Courtesy of BMW OF NORTH AMERICA, INC.

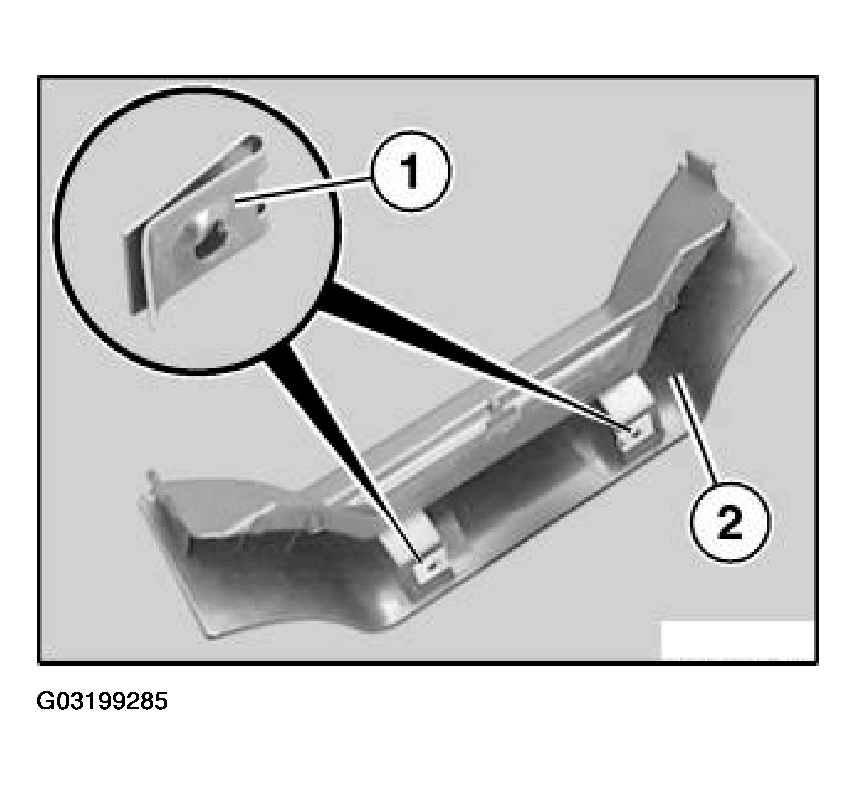

Pull sheet metal nuts (1) off finisher (2).

Fig 4: Removing Sheet Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

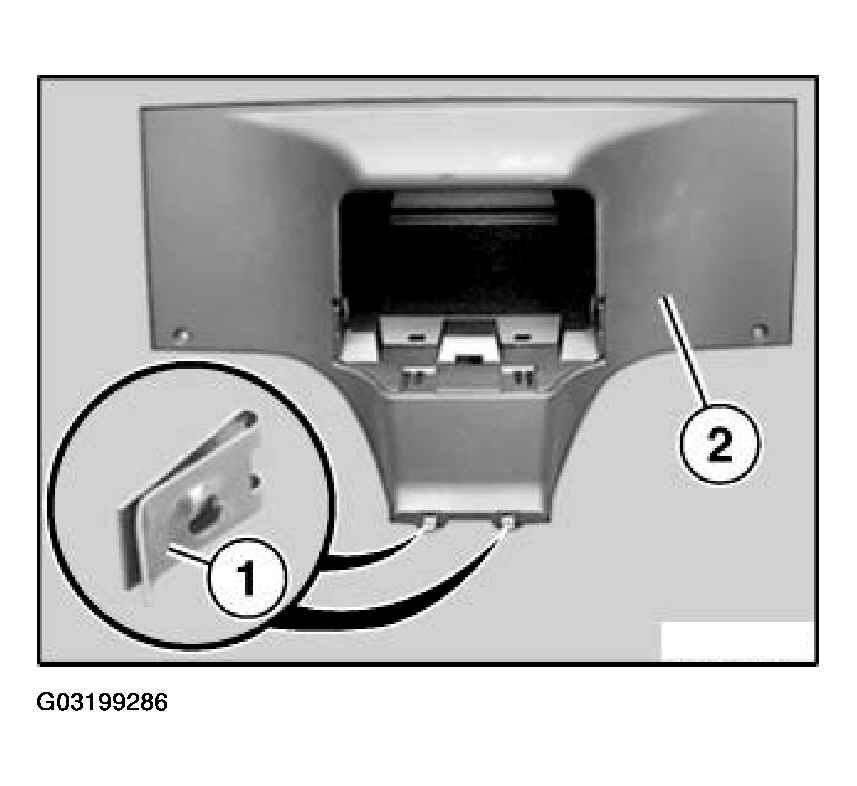

Pull sheet metal nuts (1) off storage box (2).

Fig 5: Removing Sheet Metal Nuts From Storage Box

Courtesy of BMW OF NORTH AMERICA, INC.
