51 16 201 Replacing oddments tray (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

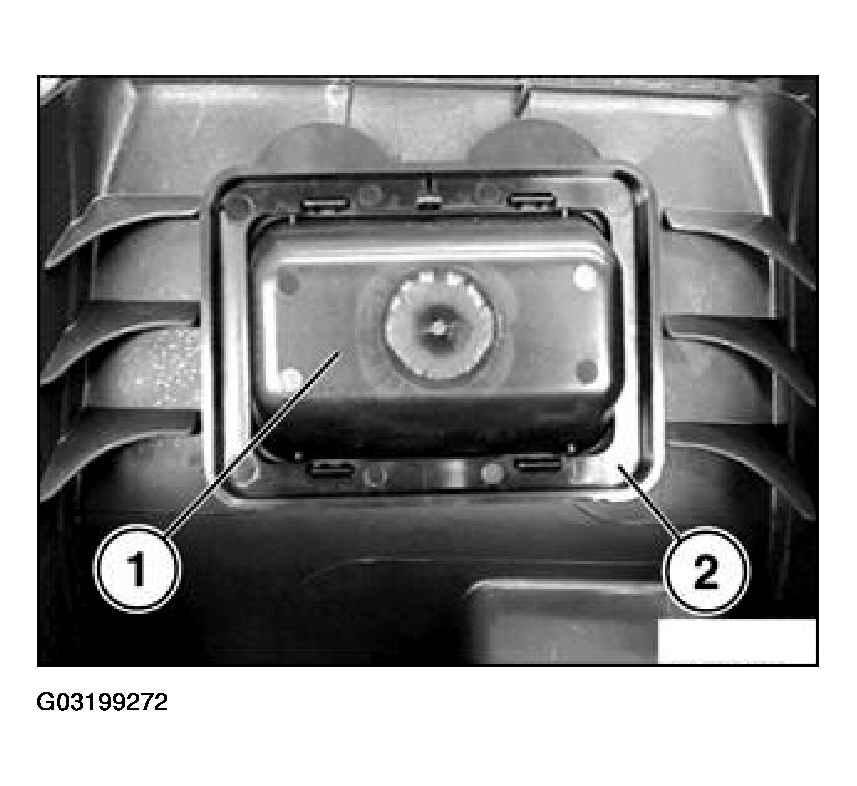

Clip tray (1) correctly into frame (2).

Fig 1: Installing Tray Into Frame

G03199272

Courtesy of BMW OF NORTH AMERICA, INC.

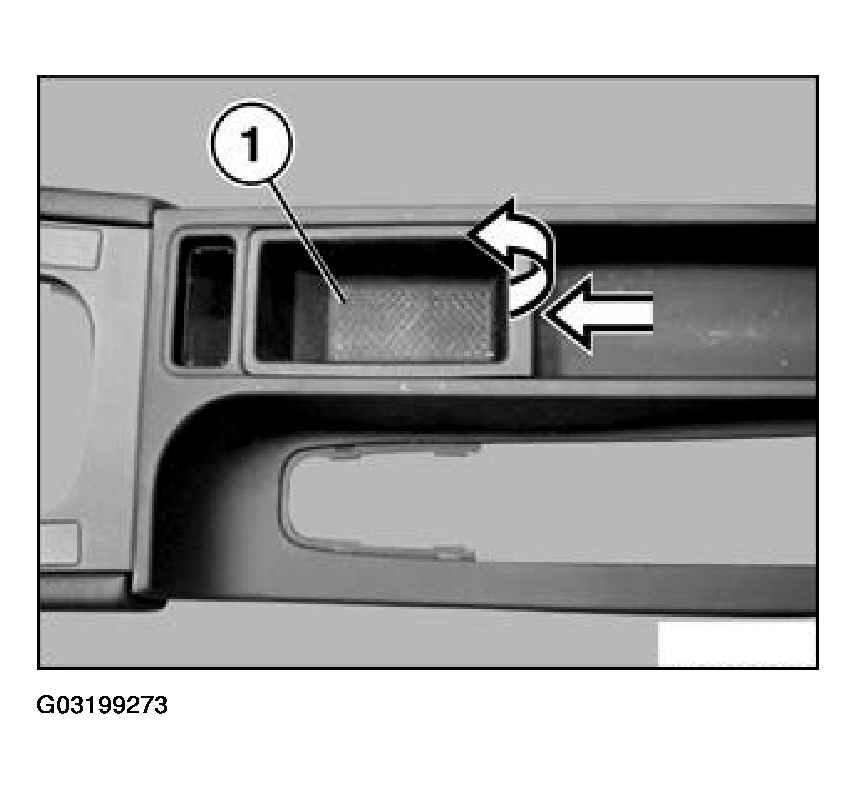

Unclip tray (1).

Fig 2: Unclipping Tray

G03199273

Courtesy of BMW OF NORTH AMERICA, INC.

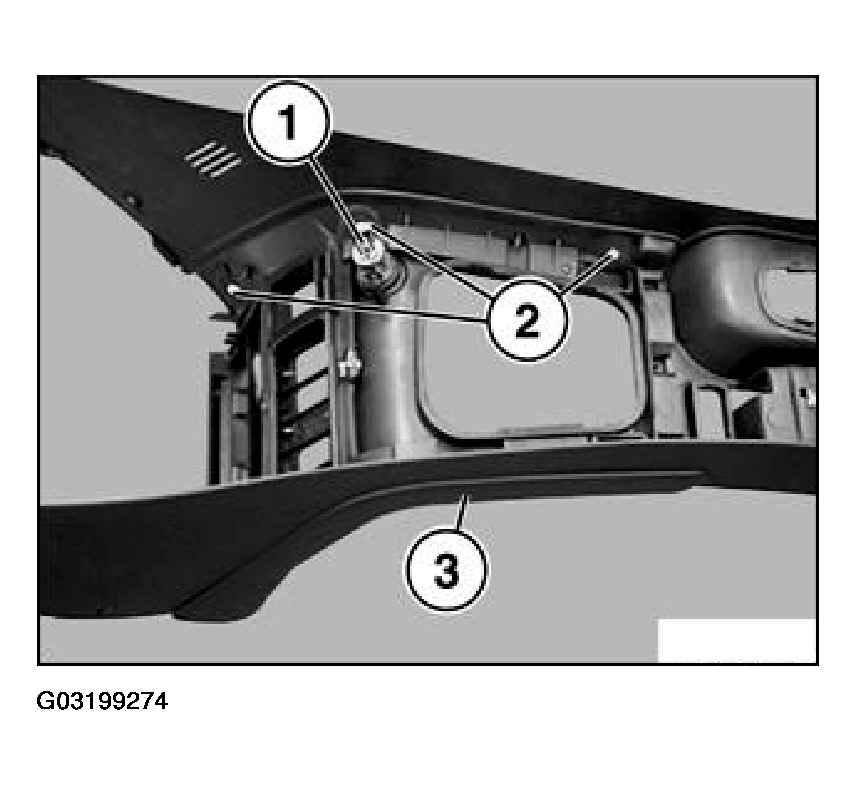

Remove cigar lighter (1).

Unfasten left / right screws (2) and remove left / right finisher strips (3).

Fig 3: Removing Left / Right Finisher Strips

G03199274

Courtesy of BMW OF NORTH AMERICA, INC.

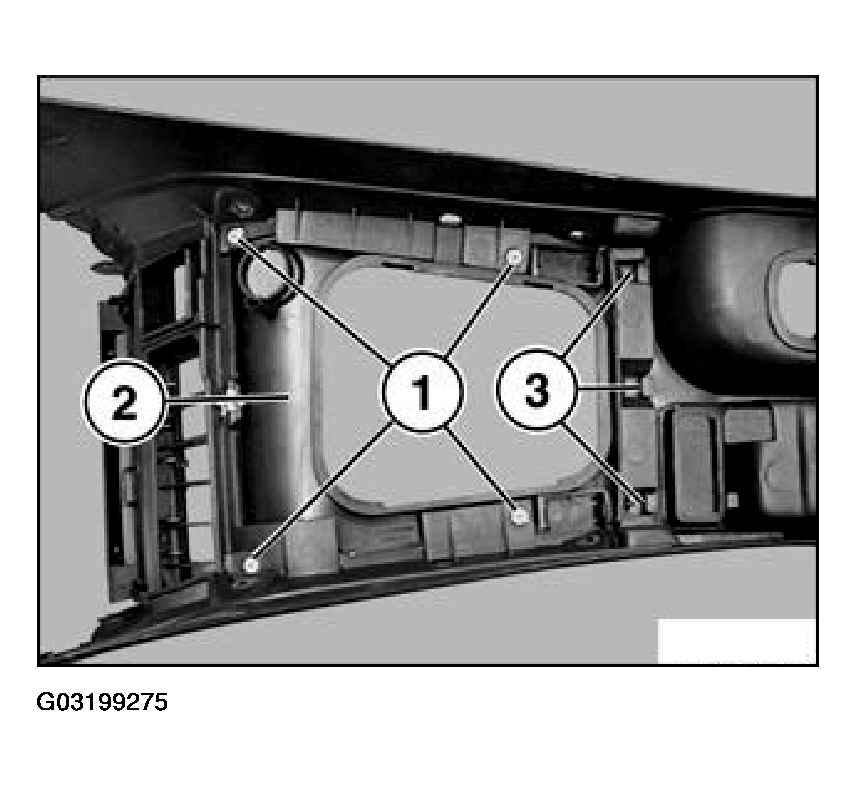

Unfasten screws (1) and remove selector lever finisher strip (2).

Fig 4: Removing Selector Lever Finisher Strip

G03199275

Courtesy of BMW OF NORTH AMERICA, INC.

Insert correctly in supports (3).

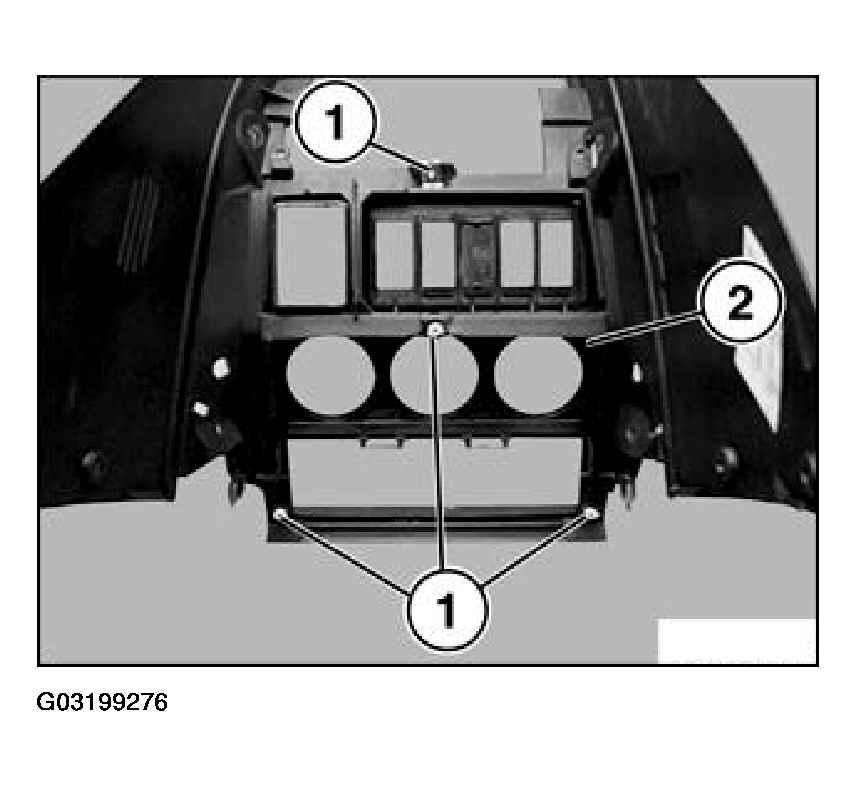

Unfasten screws (1) and remove radio finisher strip (2).

Fig 1: Removing Radio Finisher Strip

G03199276

Courtesy of BMW OF NORTH AMERICA, INC.

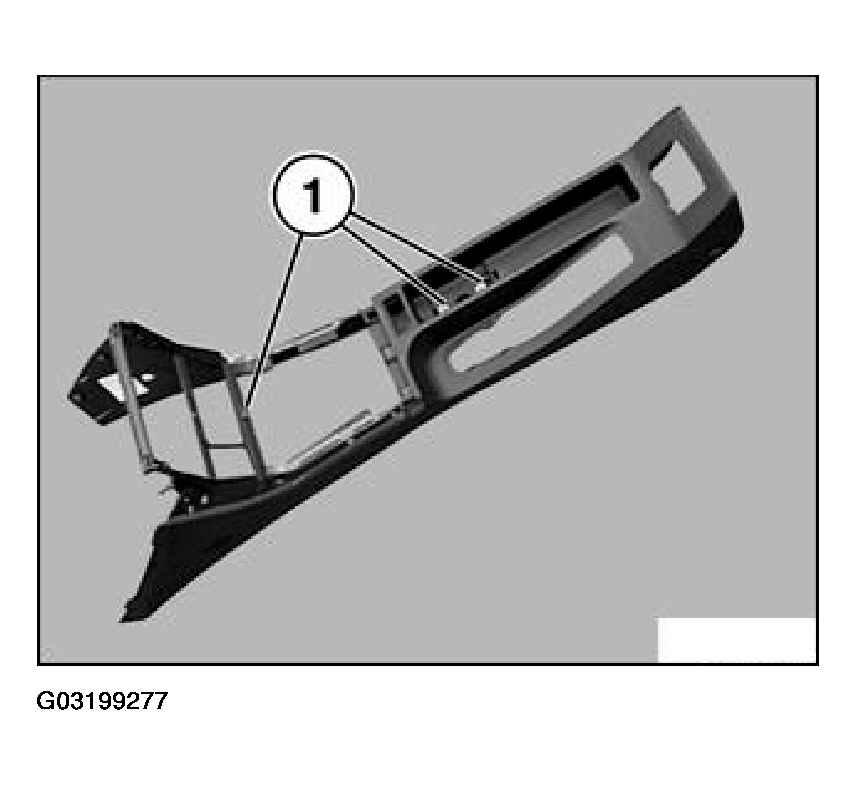

Remove speed nuts (1).

Fig 2: Removing Speed Nuts

G03199277

Courtesy of BMW OF NORTH AMERICA, INC.
