51 16 080 Removing and installing/replacing sun visor and counter support on left or right (Z3 coupe, M coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Lift sun visor out of counter support.

Unfasten screws (1) and remove sun visor.

Lift out covers (2), unfasten screws and remove counter support.

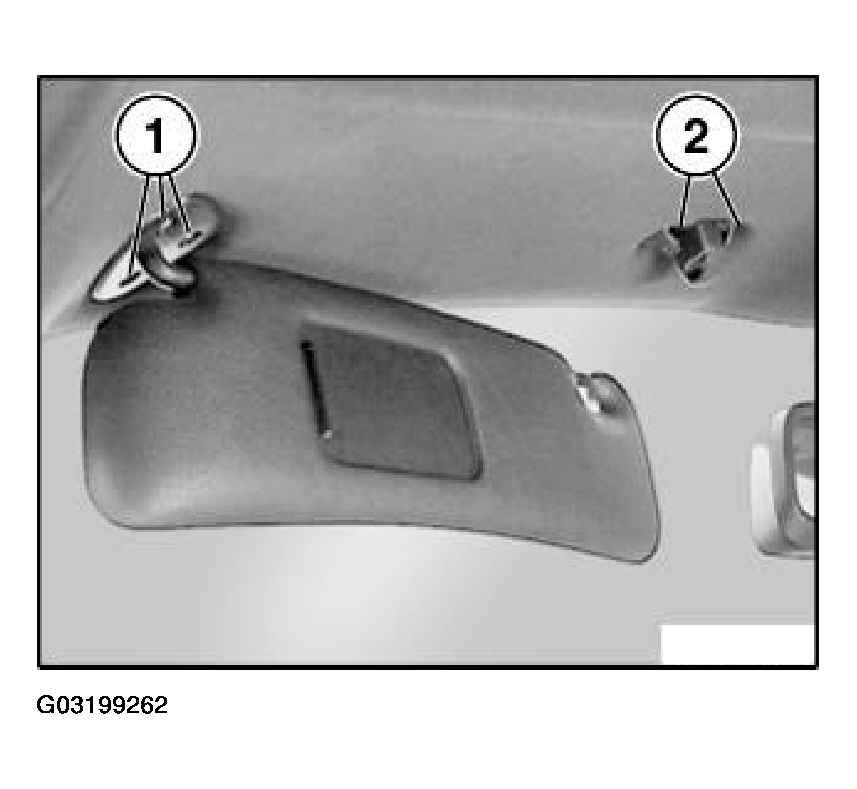

Fig 1: Removing Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.
