51 71 190 Removing and installing seal on side window (rear), left or right (Z3 Coupe, M Coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

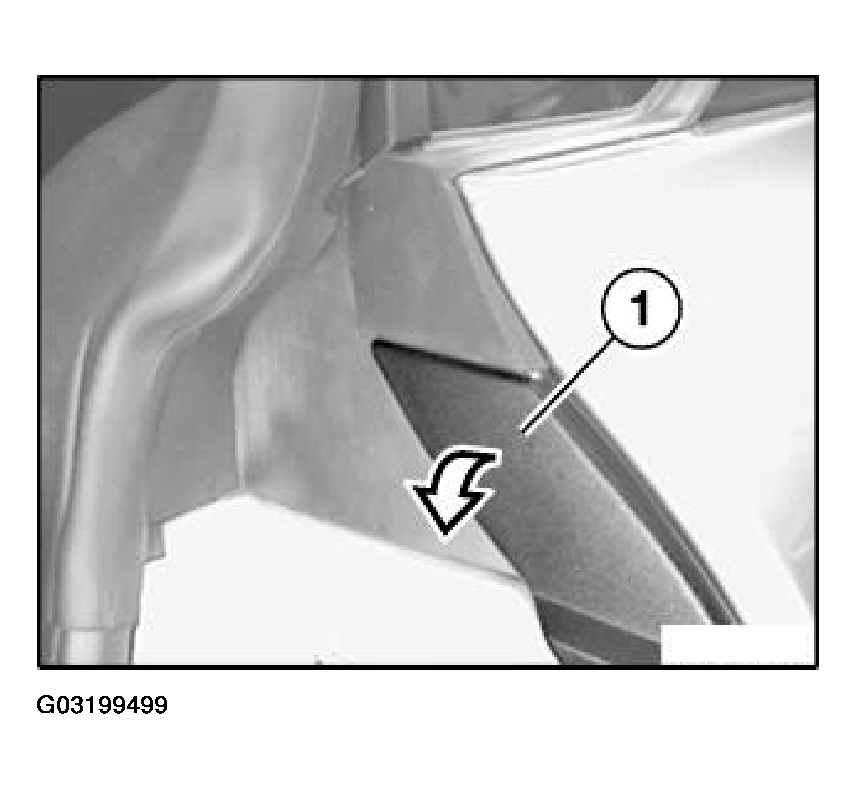

Partially unclip trim (1).

Fig 1: Unclipping Trim

Courtesy of BMW OF NORTH AMERICA, INC.

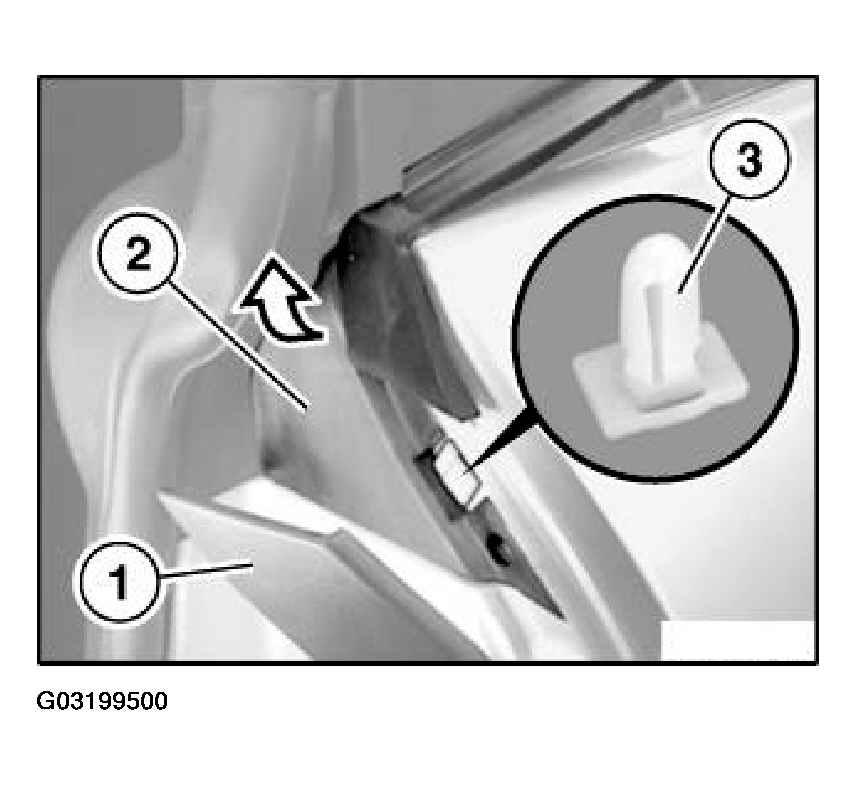

Pull trim (1) out a little and lever out seal (2).

Installation:

If necessary, lever out clip (3) and slide into trim (1).

Fig 2: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

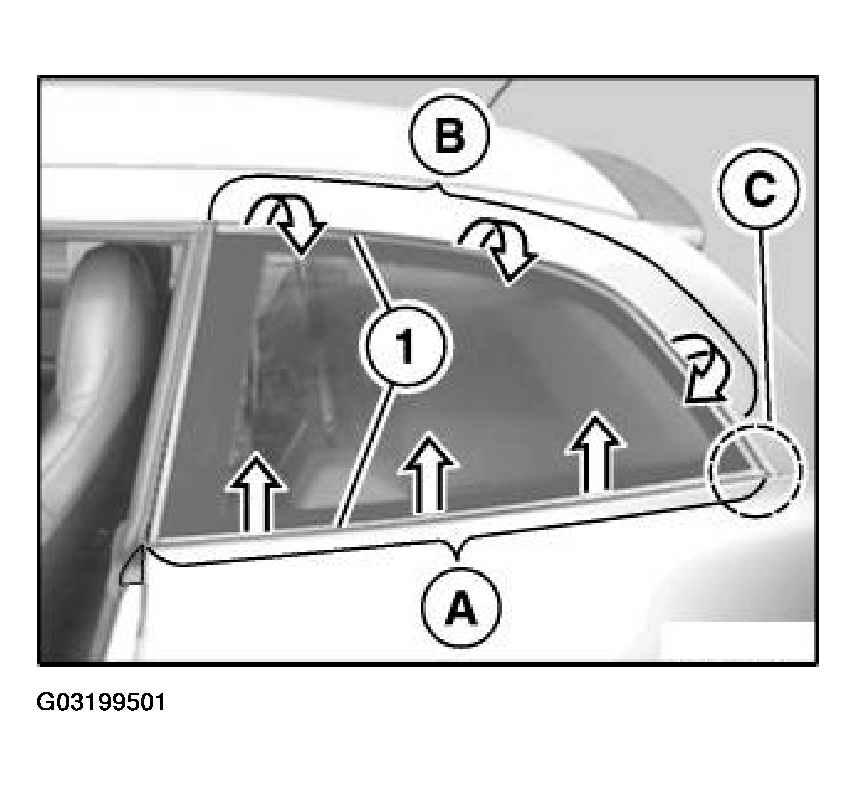

CAUTION: During removal of seal (1), carefully work in area (C) otherwise seal will tear off.

In area (A), pull off seal (1) upwards from trim.

In area (B), pull off seal (1) from side window.

In area (C), carefully pull off seal (1) from side window and trim.

Fig 3: Removing Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

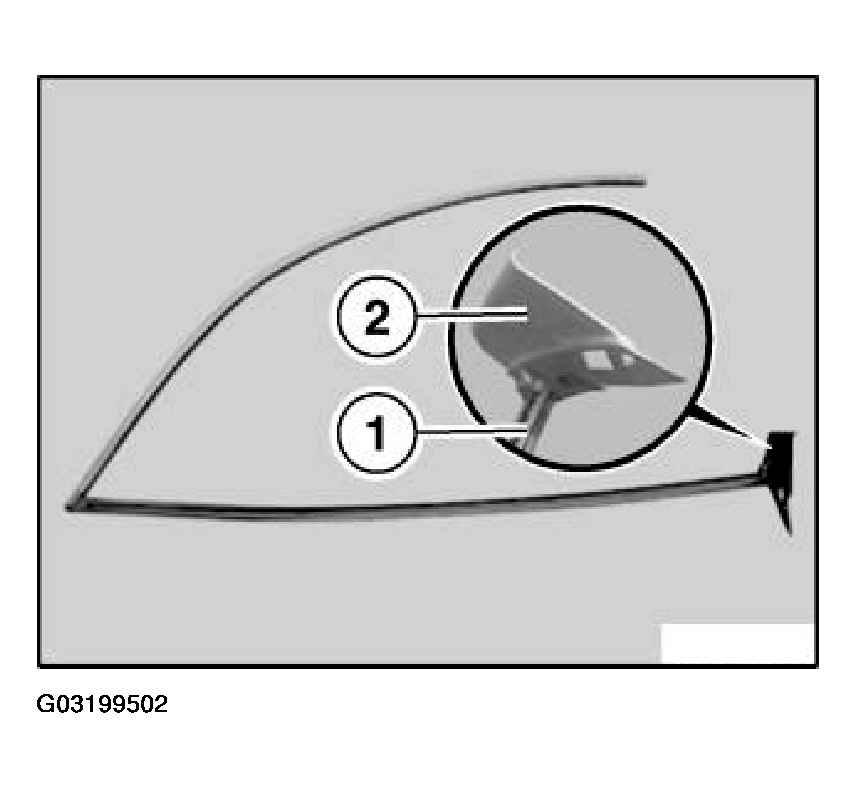

For installation, coat plug-in groove (1) of seal (2) with turpentine substitute (sourcing reference: BMW Parts Service).

Fig 4: Installing Seal

Courtesy of BMW OF NORTH AMERICA, INC.
