51 45 180 Removing and installing/replacing trim for instrument panel, bottom left (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Turn rotary clips (1) through 90° and remove. Pull trim (2) downwards/backwards to remove.

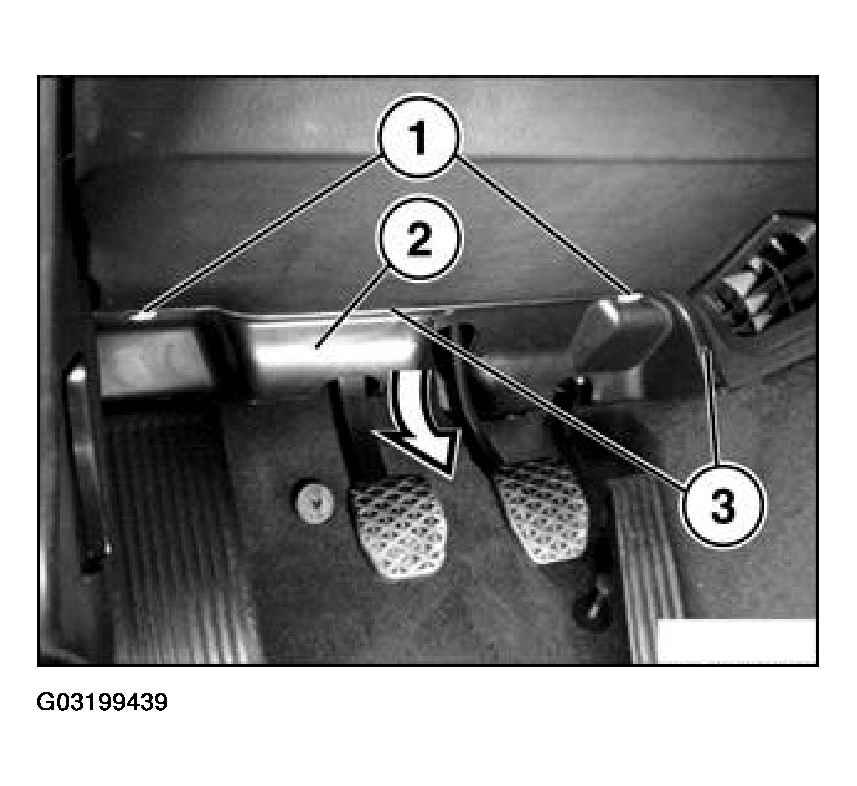

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not damage the guides (3).
