51 45 180 Removing and installing/replacing trim for instrument panel, bottom left (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

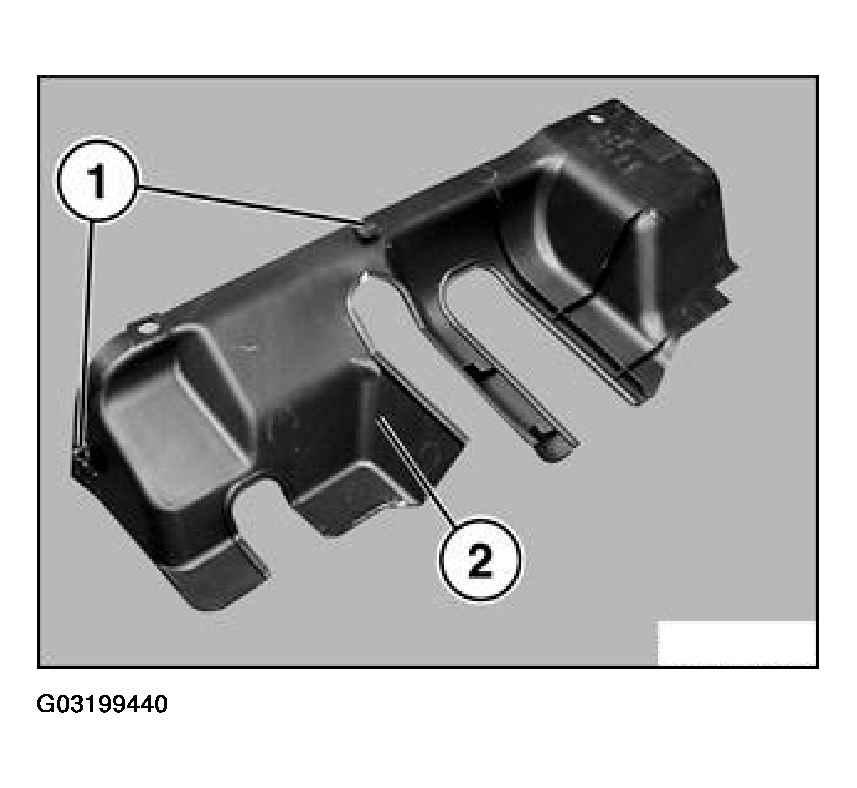

Guides (1) on the trim (2) must not be damaged.

Fig 1: Identifying Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

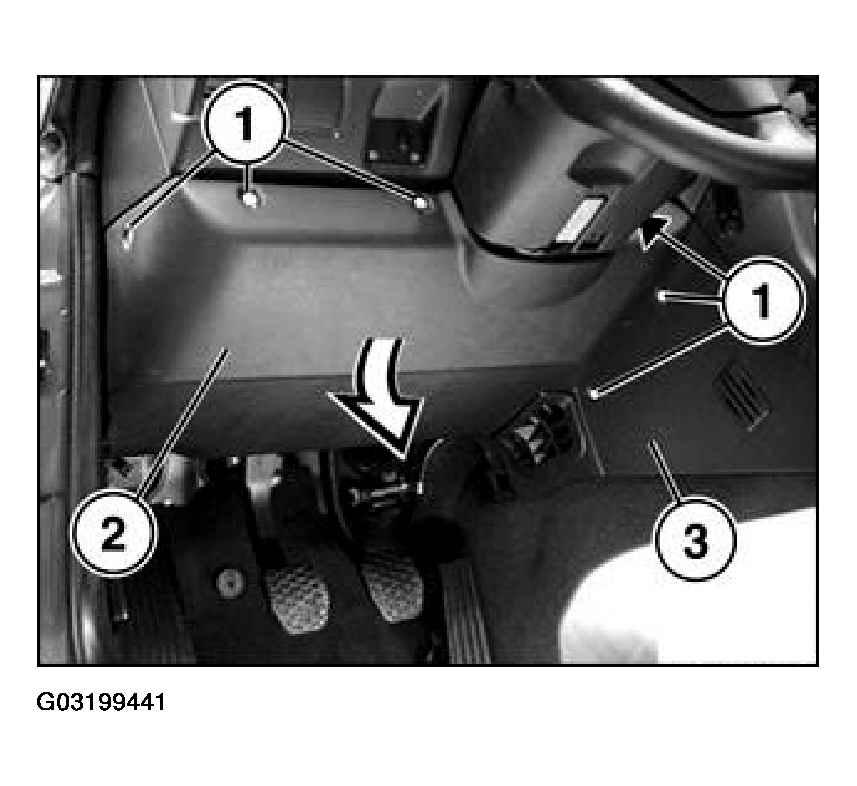

Remove caps (1) and screws. Unscrew trim (2) and pull outwards/downwards to remove from oddments tray (3).

Fig 2: Removing Caps And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replace defective covers (1).

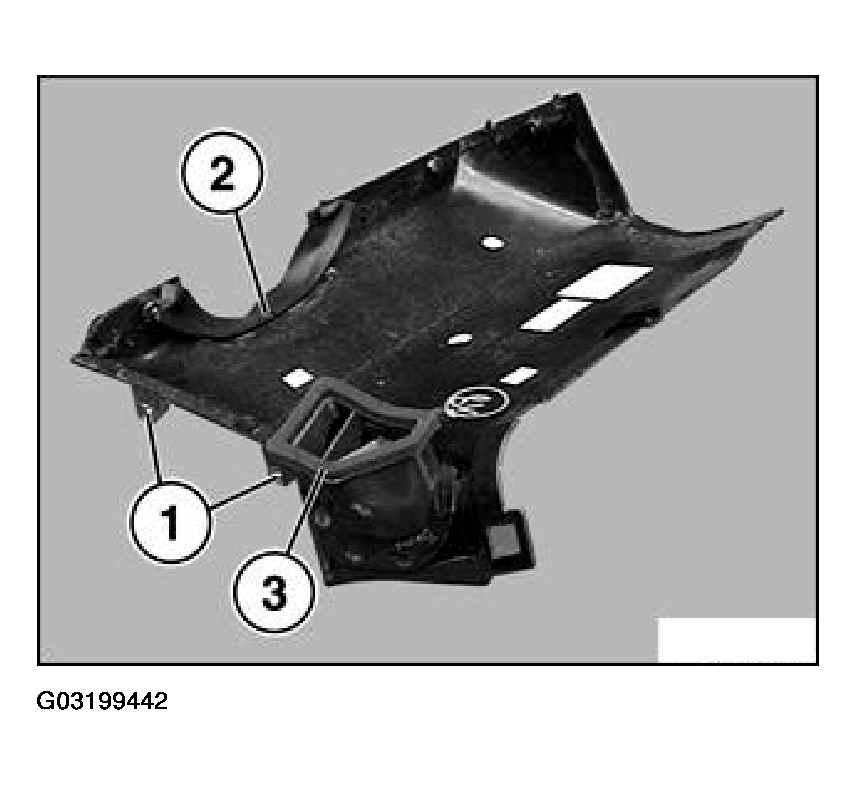

Slide on speed nuts (1). Fit seal (2) on steering column and seal (3) on air outlet (heating) correctly.

Fig 1: Locating Seals

Courtesy of BMW OF NORTH AMERICA, INC.
