51 45 031 Replacing trim for instrument panel (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel, refer to 51 45 030 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE)

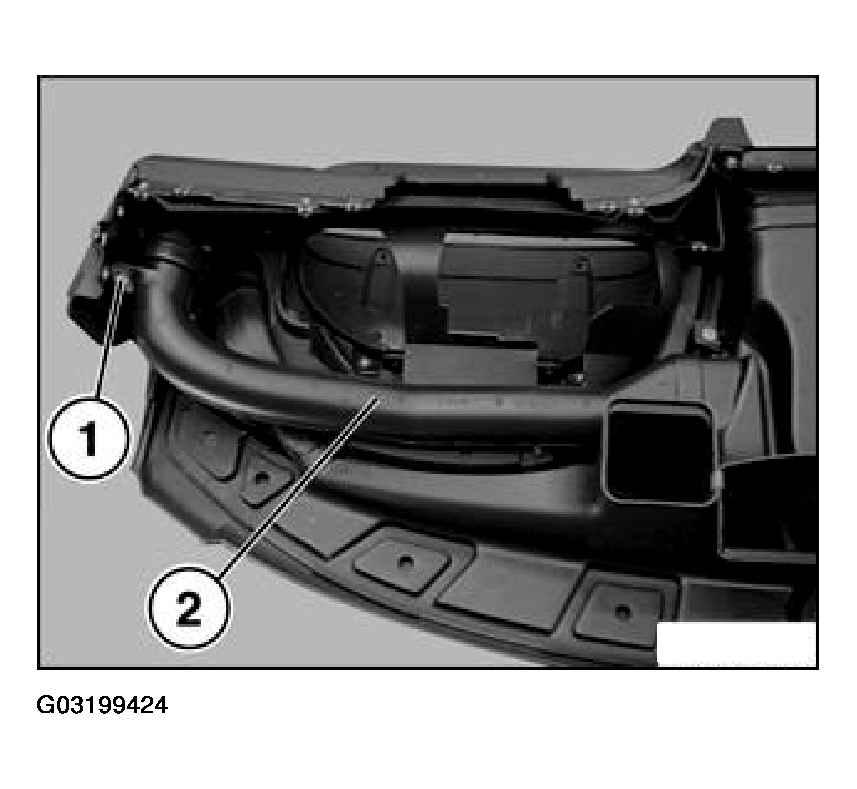

Unfasten left/right screw (1) and remove left/right air guide (2).

Fig 1: Removing Left/Right Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.

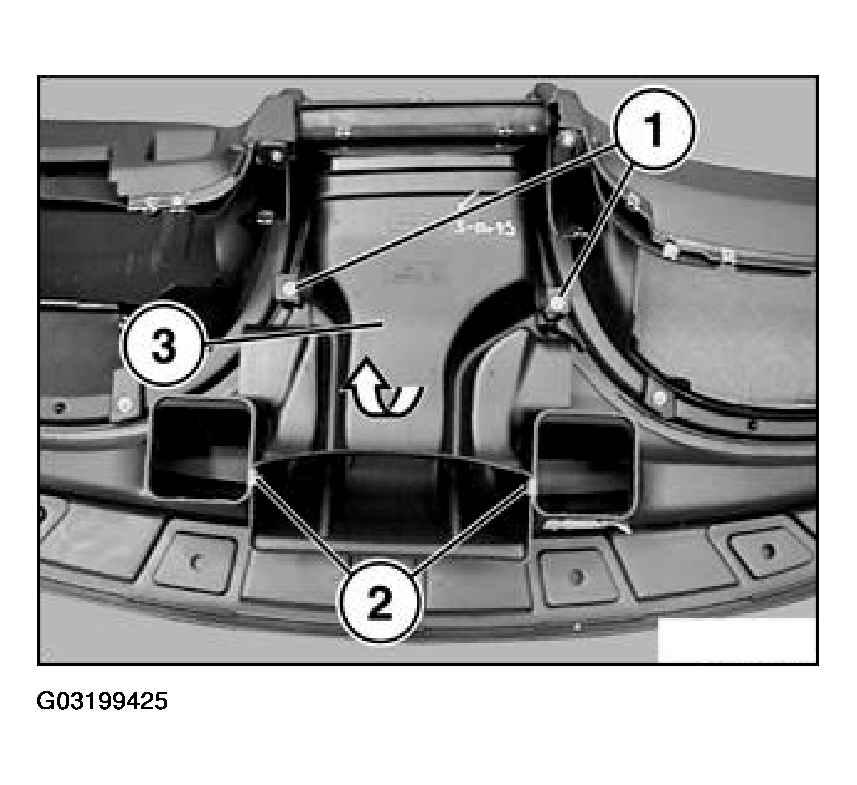

Unfasten screws (1) and metal tabs (2) and remove center of air guide (3).

Fig 2: Removing Center Of Air Guide

Courtesy of BMW OF NORTH AMERICA, INC.

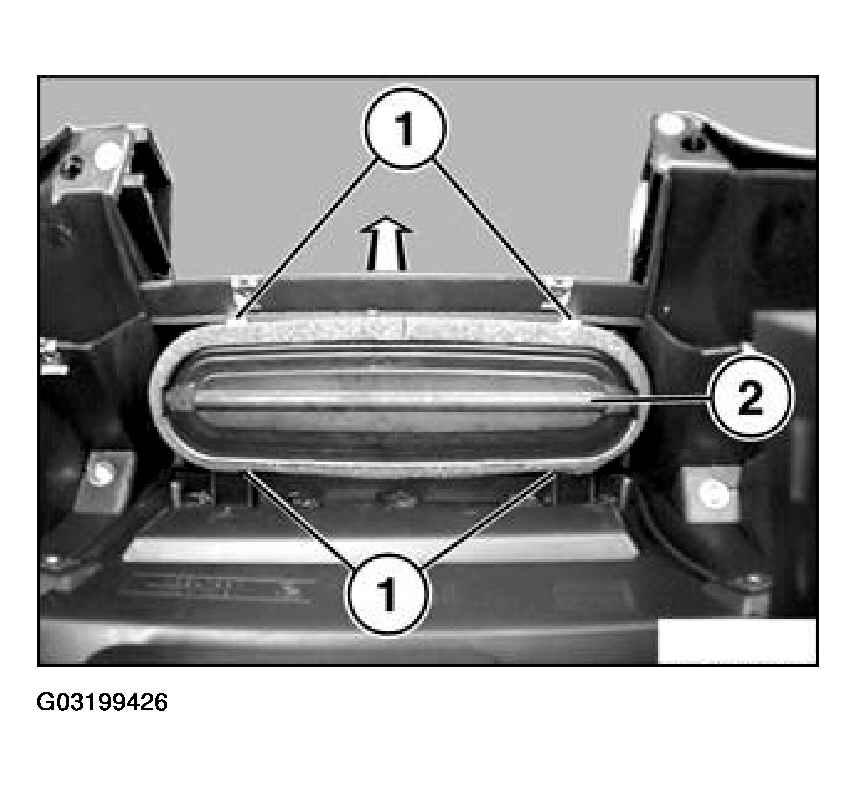

Lift out interlock (1) and pull out center of air vent (2).

Fig 3: Removing Centre Of Air Vent

Courtesy of BMW OF NORTH AMERICA, INC.

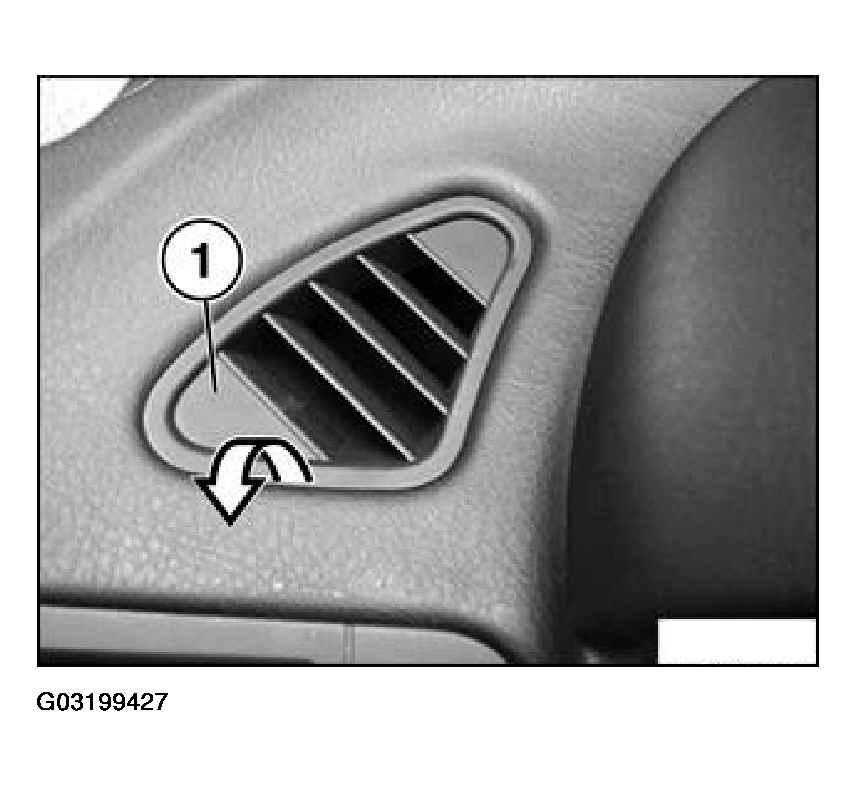

Pull left/right air vent (1) downwards (with feeler gauge) and remove.

Fig 4: Removing Air Vent

Courtesy of BMW OF NORTH AMERICA, INC.
