51 45 031 Replacing trim for instrument panel (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

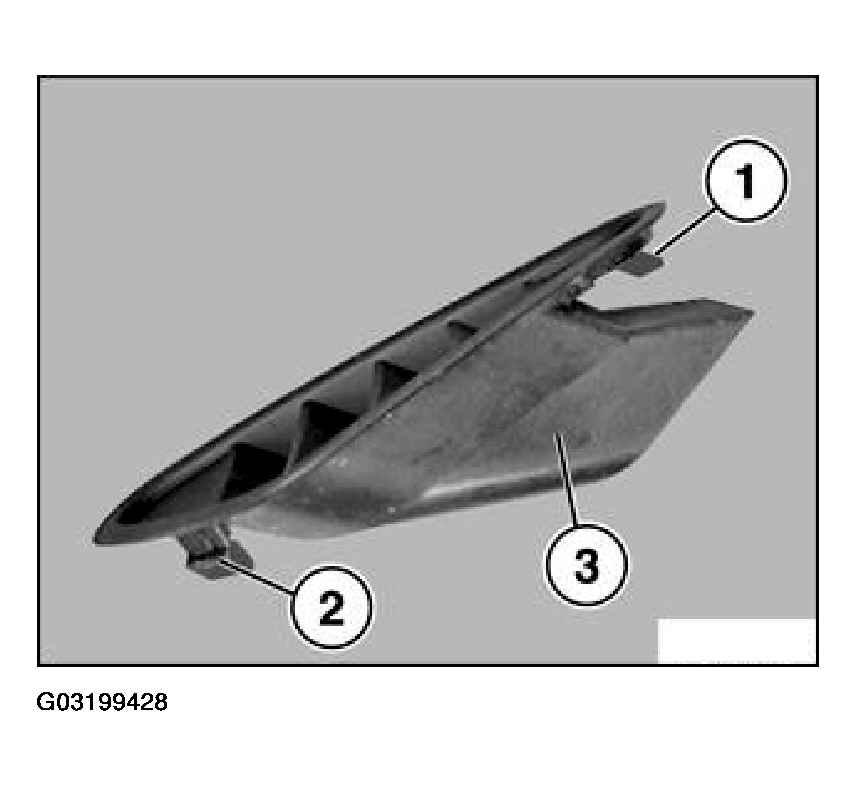

Interlock (1) and guide (2) on air vent (3) must not be damaged.

Fig 1: Locating Interlock And Guide

G03199428

Courtesy of BMW OF NORTH AMERICA, INC.

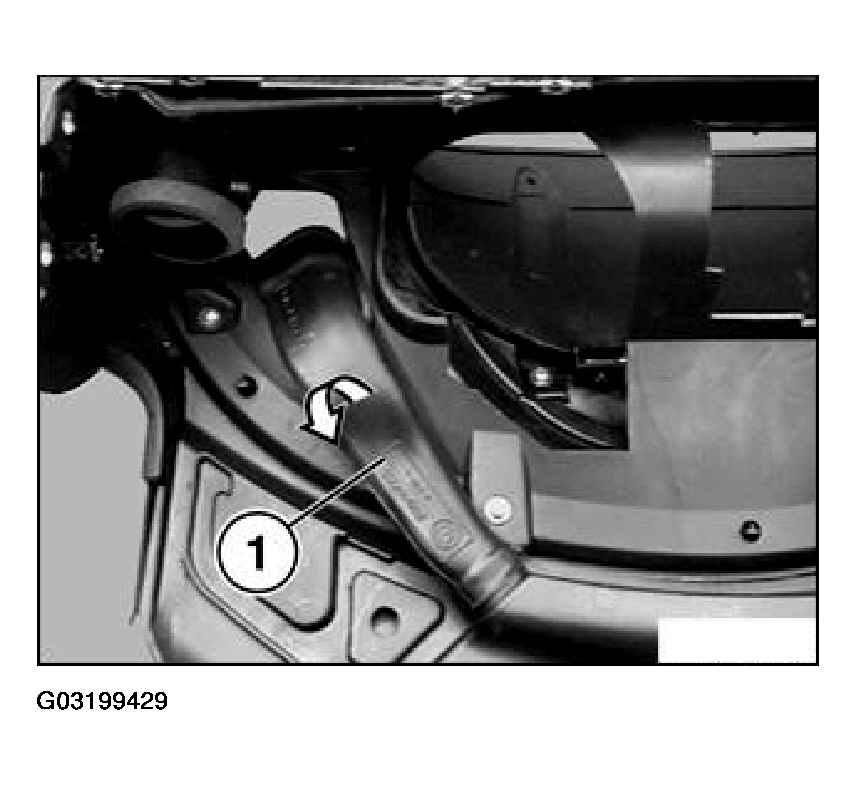

Pull left/right air guide (1) forwards to remove.

Fig 2: Removing Left/Right Air Guide

G03199429

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and lift off insert (2).

Fig 3: Removing Insert

G03199430

Courtesy of BMW OF NORTH AMERICA, INC.

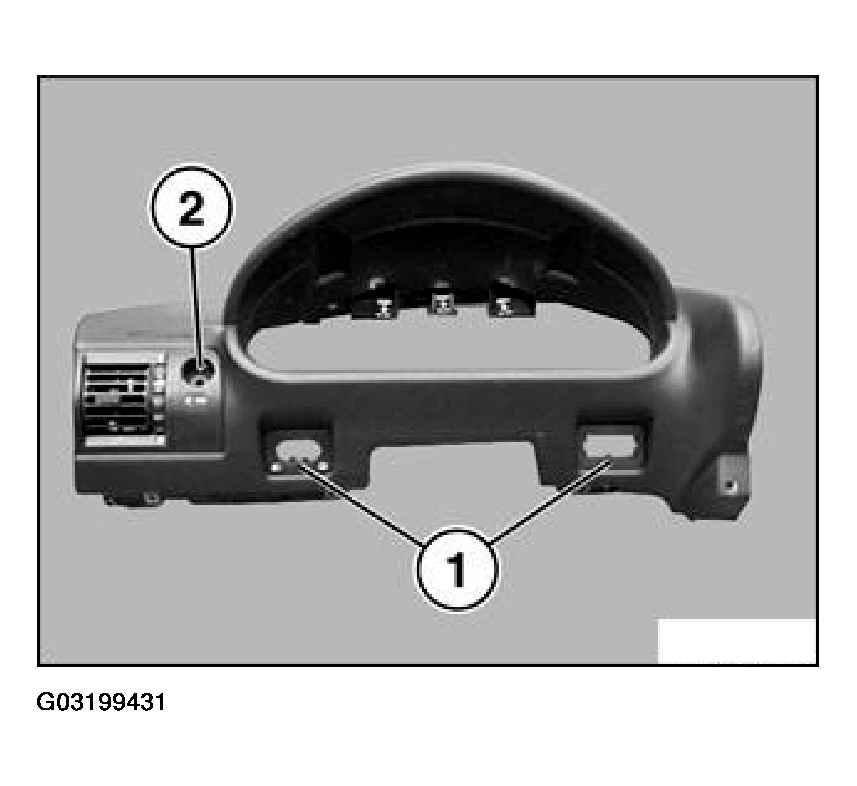

Lift off finisher strips (1) and unfasten screw (2).

Fig 4: Removing Finisher Strips

G03199431

Courtesy of BMW OF NORTH AMERICA, INC.

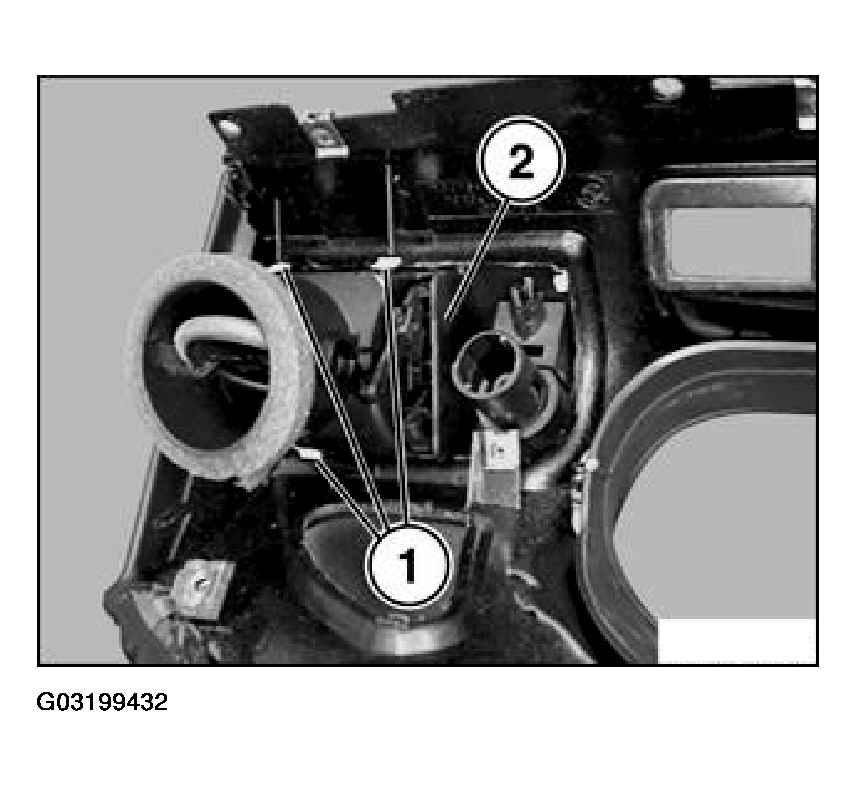

Lift off interlocks (1) and pull air vents (2) forwards to remove.

Fig 5: Removing Air Vents

G03199432

Courtesy of BMW OF NORTH AMERICA, INC.

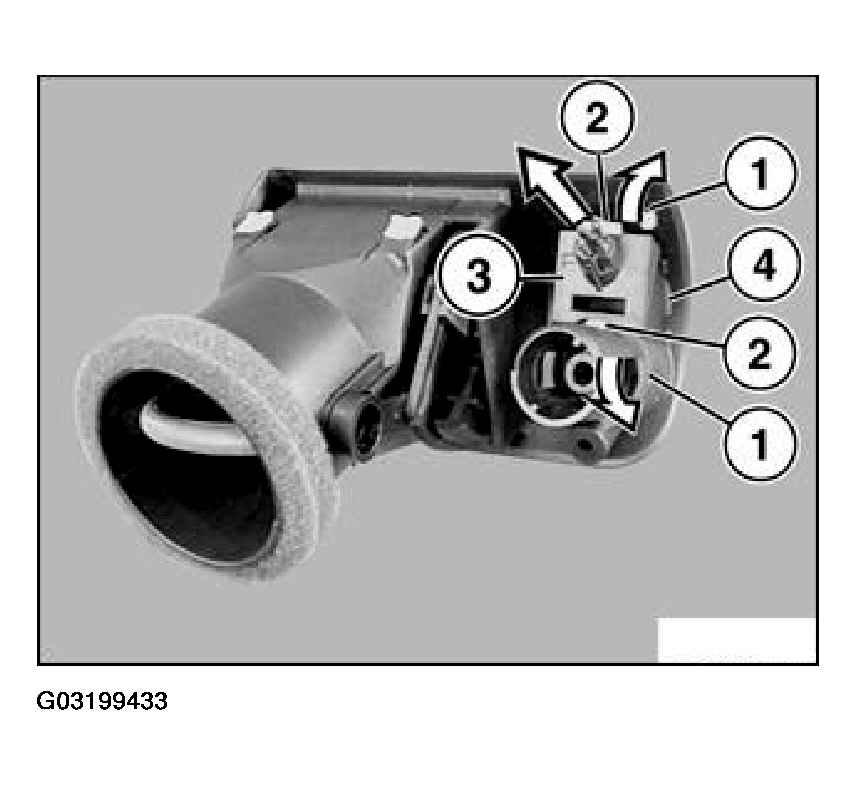

Press air vents (1) apart until the interlocks (2) are released and remove light insert (3).

Fig 6: Removing Light Insert

G03199433

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove symbol disc (4).

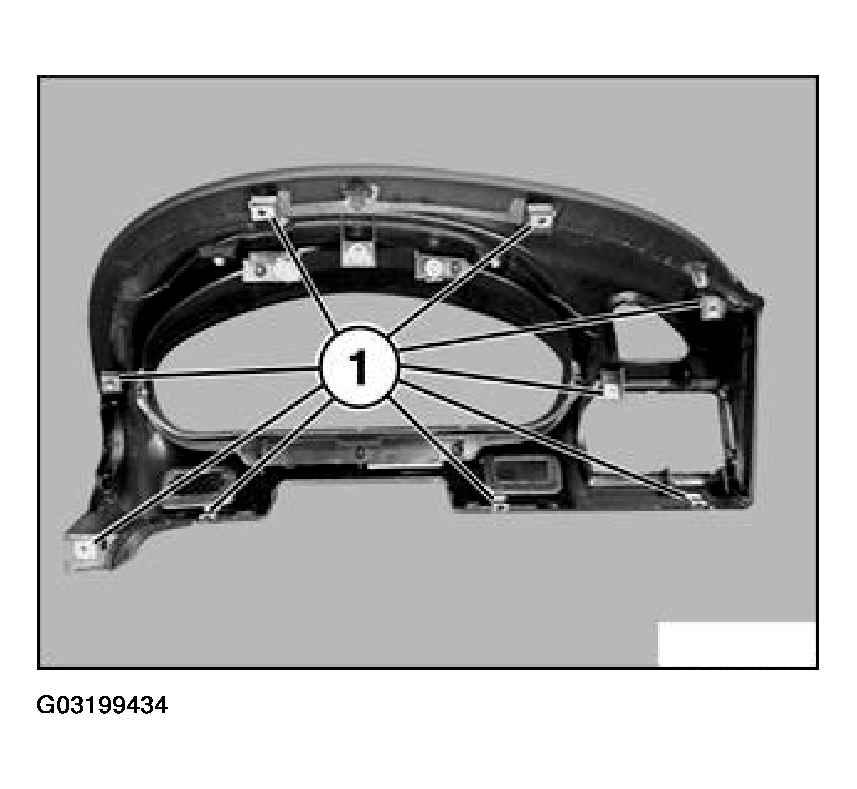

Remove speed nuts (1).

Fig 7: Removing Speed Nuts

G03199434

Courtesy of BMW OF NORTH AMERICA, INC.

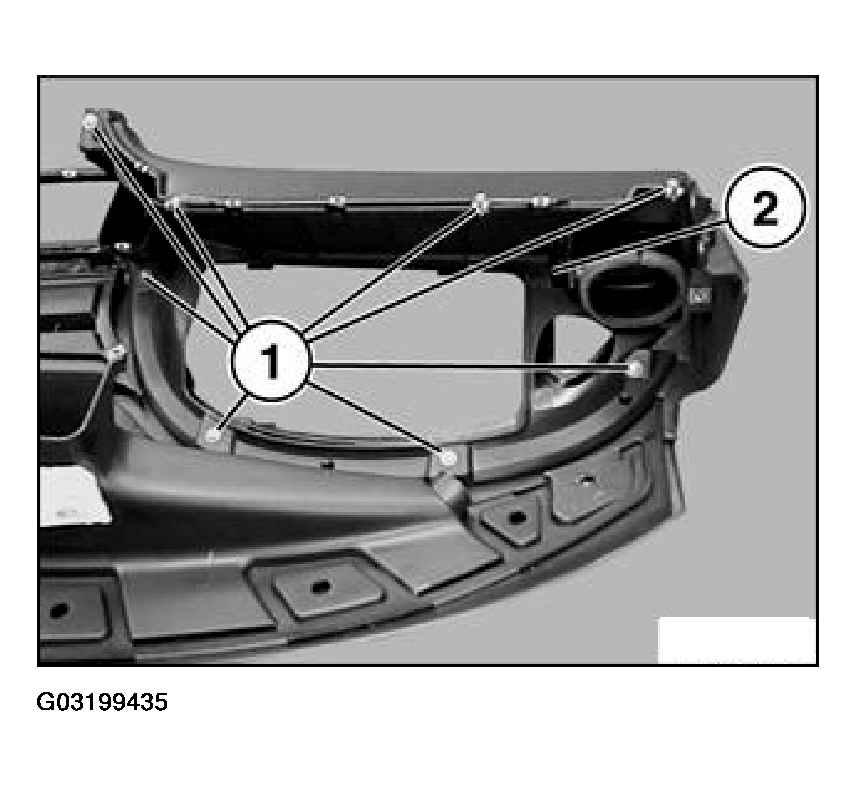

Unfasten screws (1) and lift off frame (2).

Fig 8: Removing Frame

G03199435

Courtesy of BMW OF NORTH AMERICA, INC.

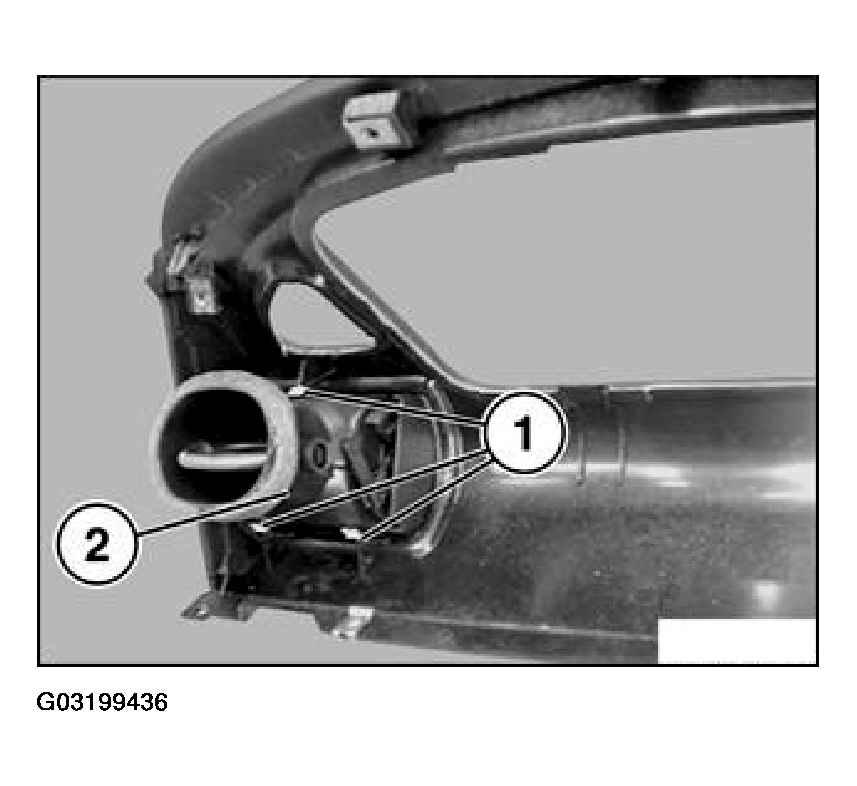

Lift off interlocks (1) and remove air vents (2).

Fig 9: Removing Air Vents

G03199436

Courtesy of BMW OF NORTH AMERICA, INC.

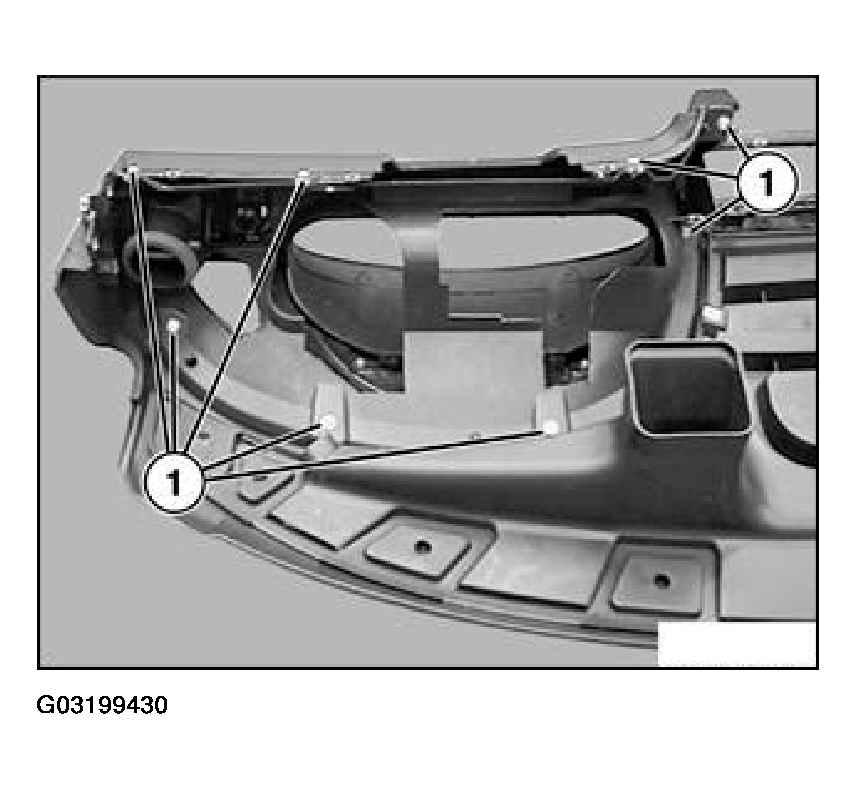

Remove speed nuts (1).

Fig 10: Removing Speed Nuts

G03199437

Courtesy of BMW OF NORTH AMERICA, INC.

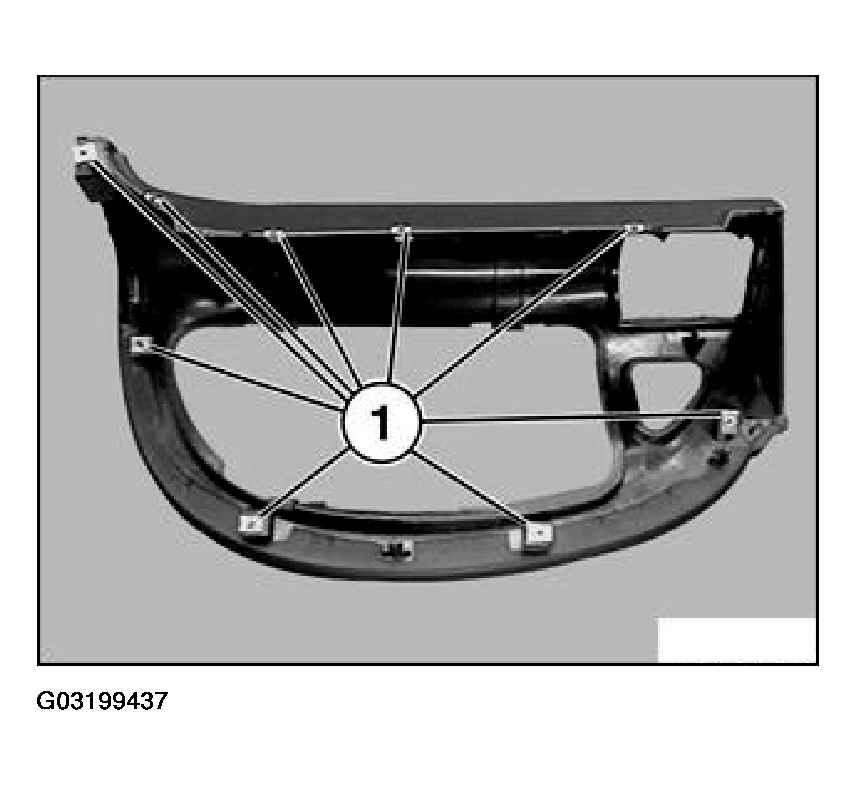

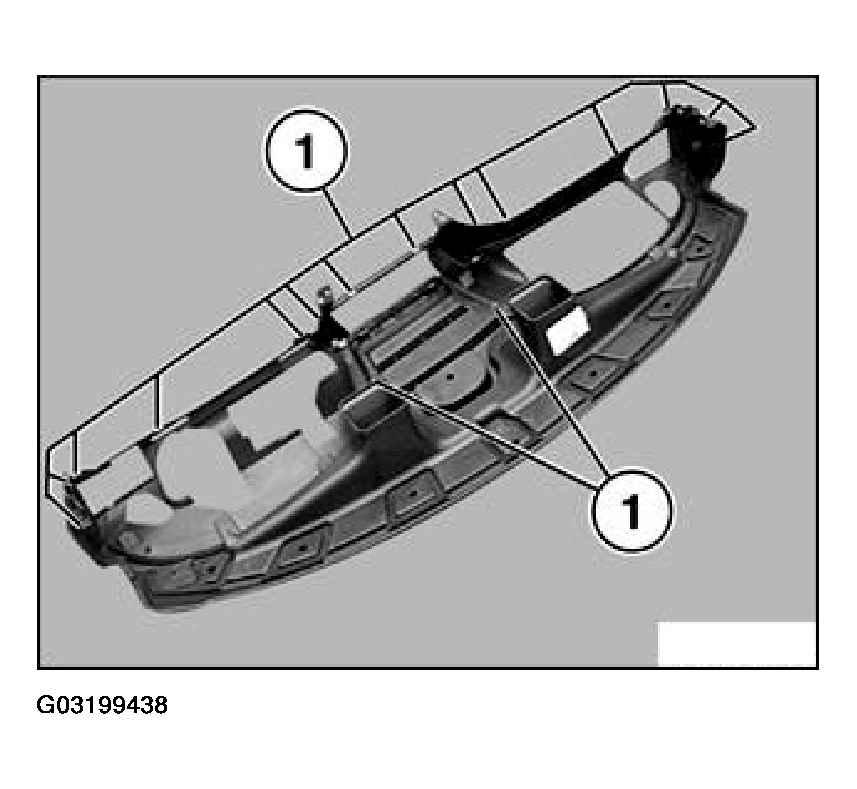

Remove speed nuts (1).

Fig 11: Removing Speed Nuts

G03199438

Courtesy of BMW OF NORTH AMERICA, INC.
