51 45 030 Removing and installing trim for instrument panel (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Screw down screws (2) with spacer sleeve (3).

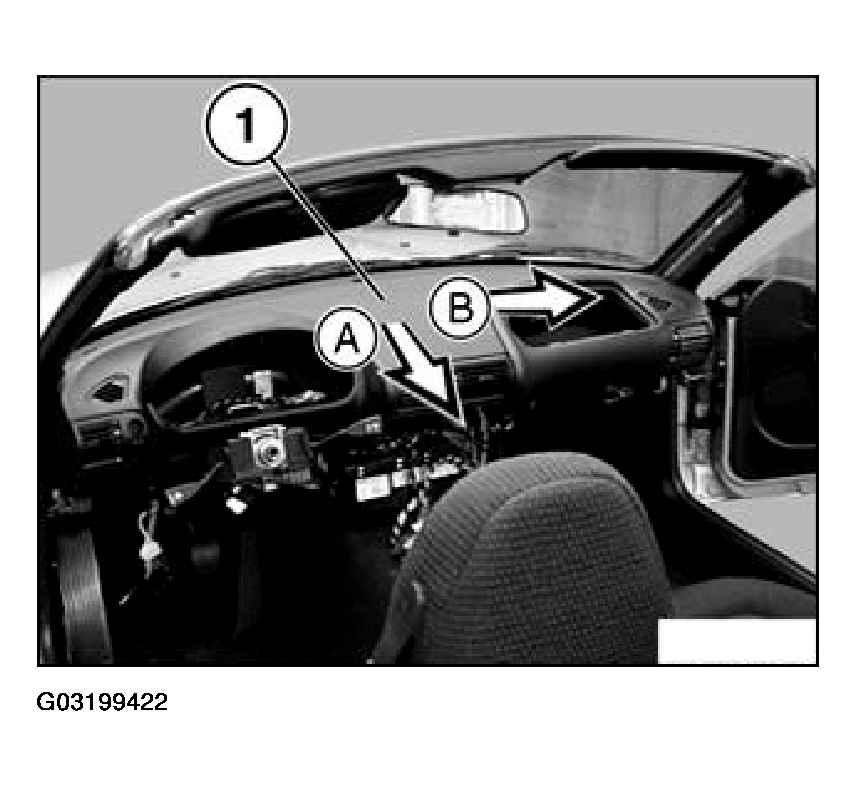

Lift instrument panel (1) upwards and backwards (A) and remove on passenger side (B).

Fig 1: Removing Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

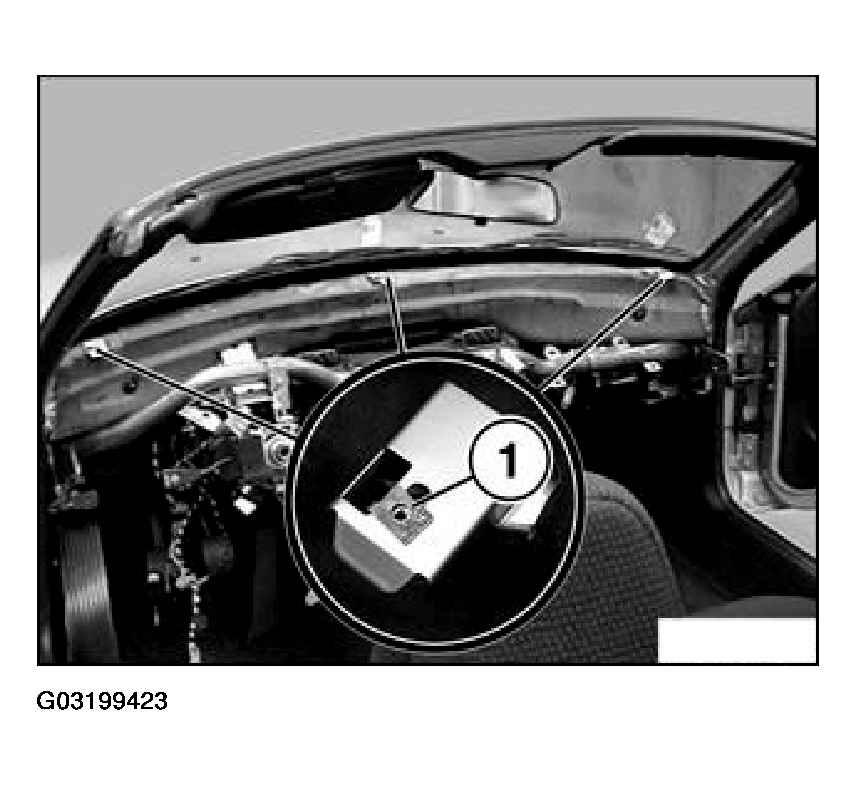

Slide on speed nuts (1).

Fig 1: Installing Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.
