51 41 000 Removing and installing front left or right door trim panel (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Model with side AIRBAG:

Follow safety instructions for working on cars with AIRBAG systems, refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS

Lift out cover plate.

Release screw and remove window crank.

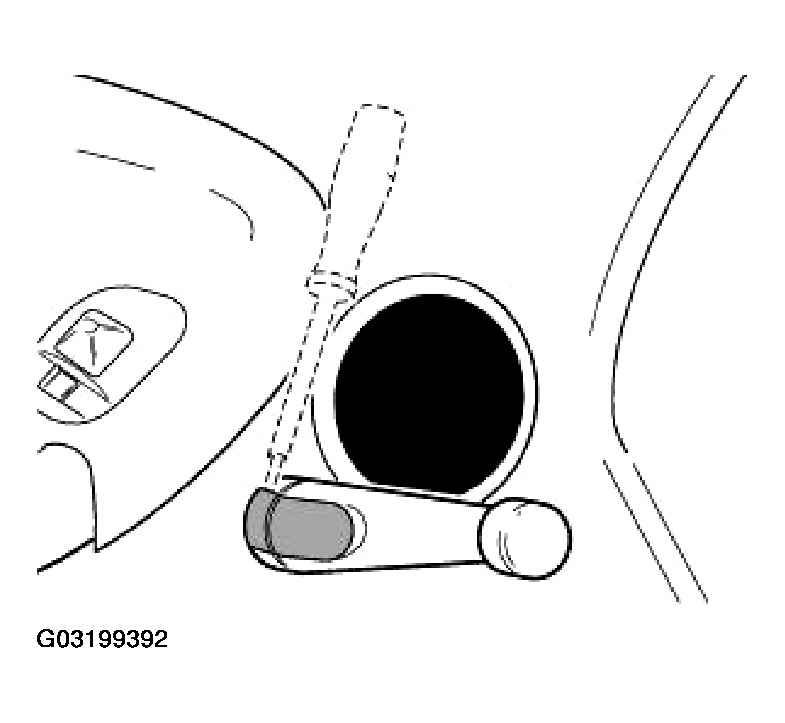

Fig 1: Removing Window Crank

G03199392

Courtesy of BMW OF NORTH AMERICA, INC.

Remove outside mirror adjusting button.

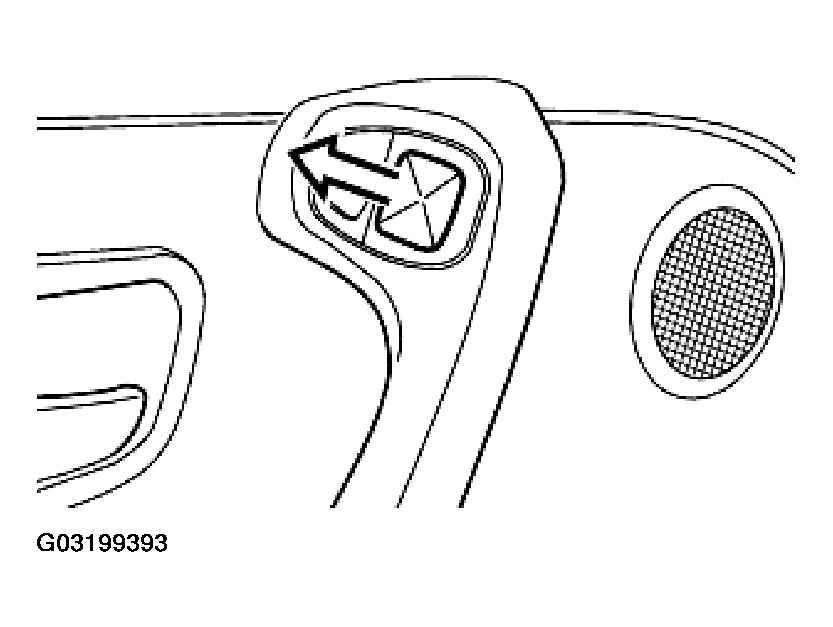

Fig 2: Removing Outside Mirror Adjusting Button

G03199393

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mirror switch with special tool 61 1 300 and pull apart plug connection.

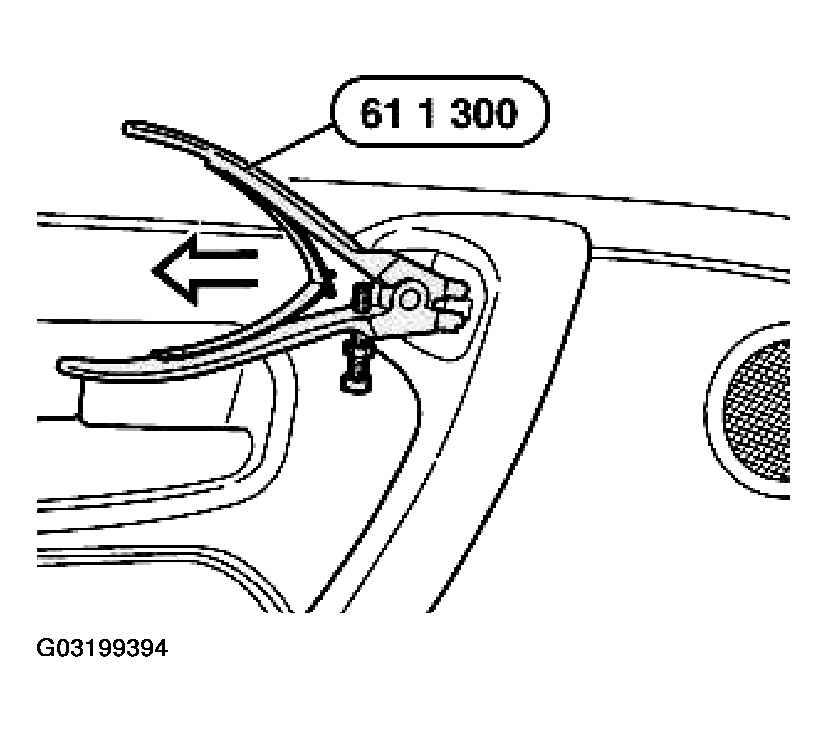

Fig 3: Removing Mirror Switch

G03199394

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plate forwards.

Unscrew screw.

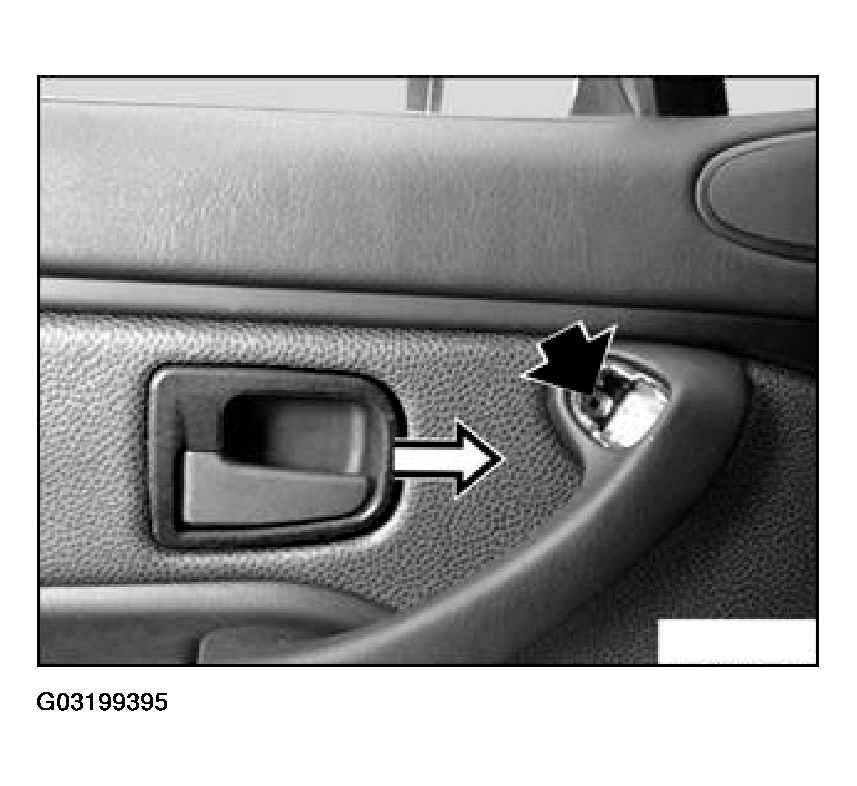

Fig 4: Removing Plate

G03199395

Courtesy of BMW OF NORTH AMERICA, INC.

Model with side AIRBAG:

If necessary, lever out cover cap (1) and release screw underneath.

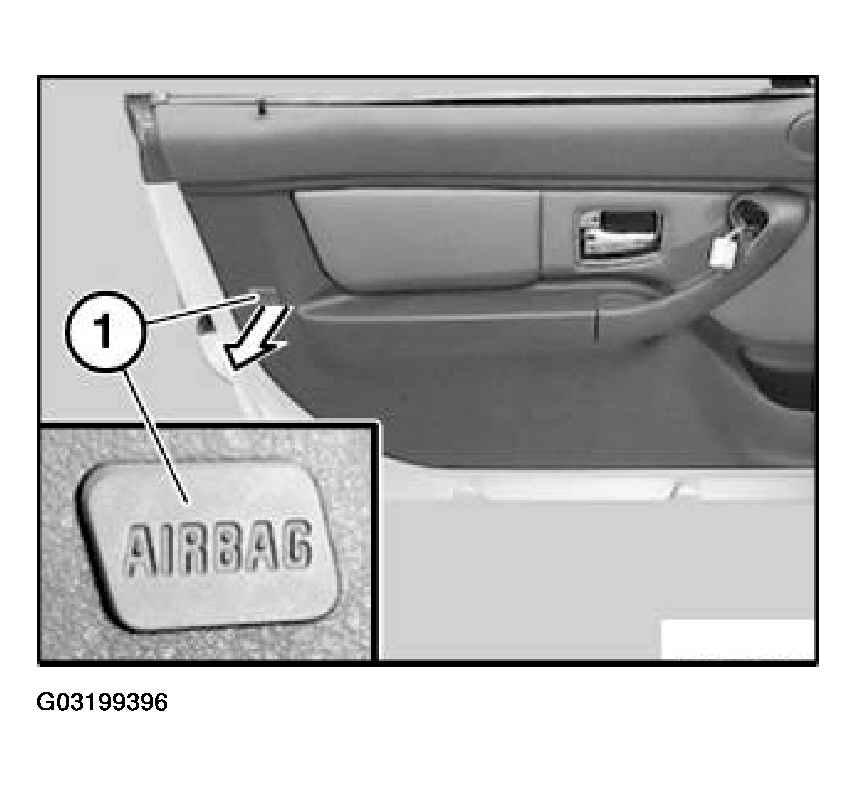

Fig 5: Removing Cover Cap

G03199396

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not pull handle (risk of damage).

Unclip door trim panel.

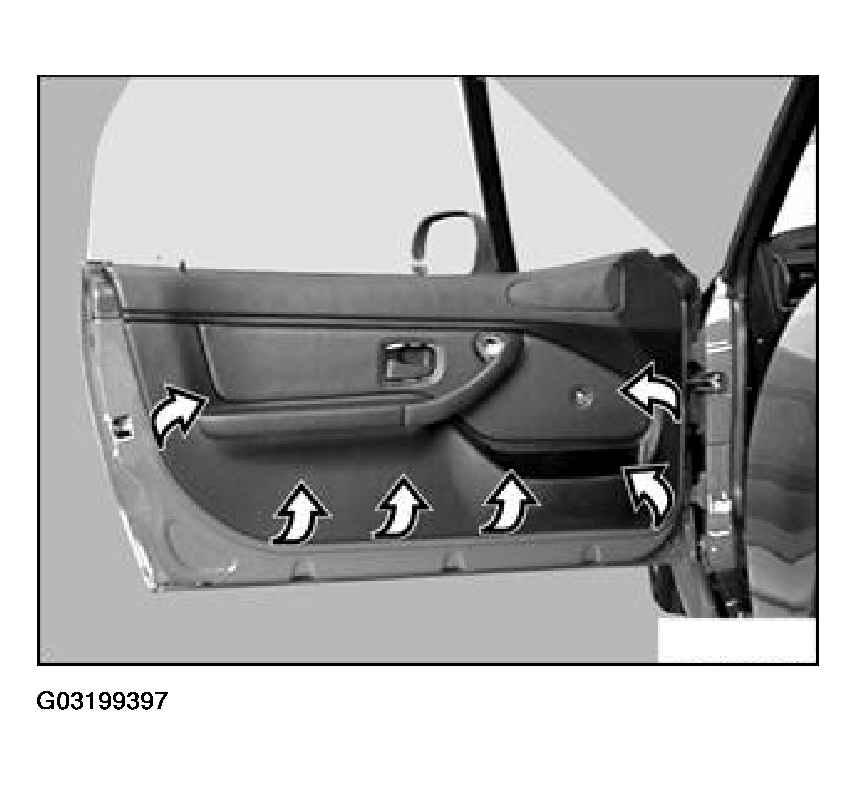

Fig 6: Unclipping Door Trim Panel

G03199397

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off door trim panel upwards.

If necessary, disconnect plug connection on speaker.

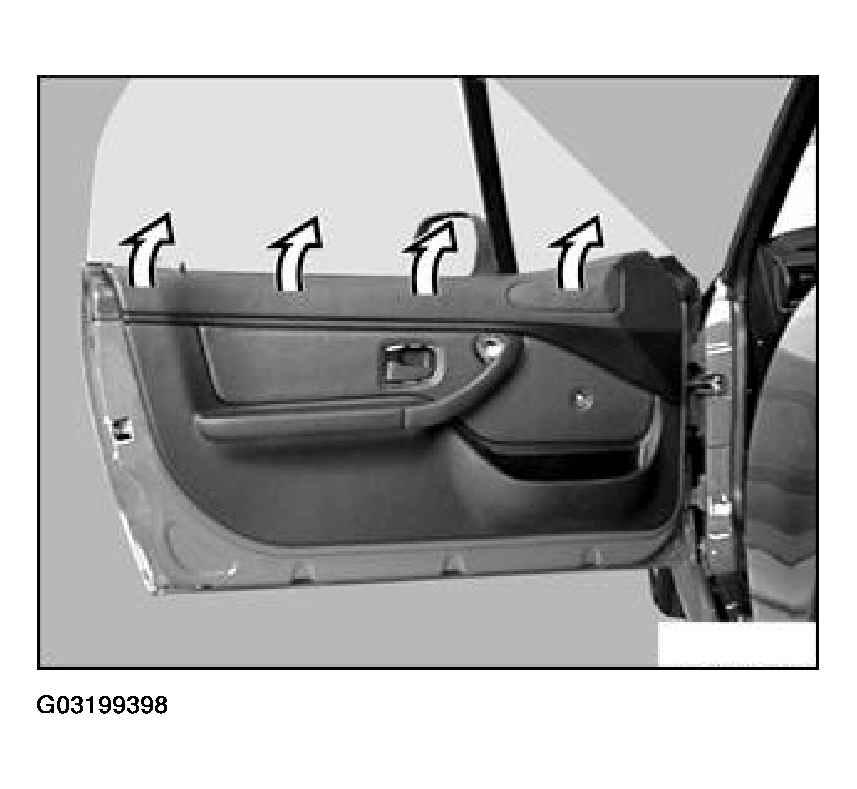

Fig 7: Removing Door Trim Panel

G03199398

Courtesy of BMW OF NORTH AMERICA, INC.
