51 21 300 Removing and installing or replacing window recess cover strip on outside of left or right front door

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

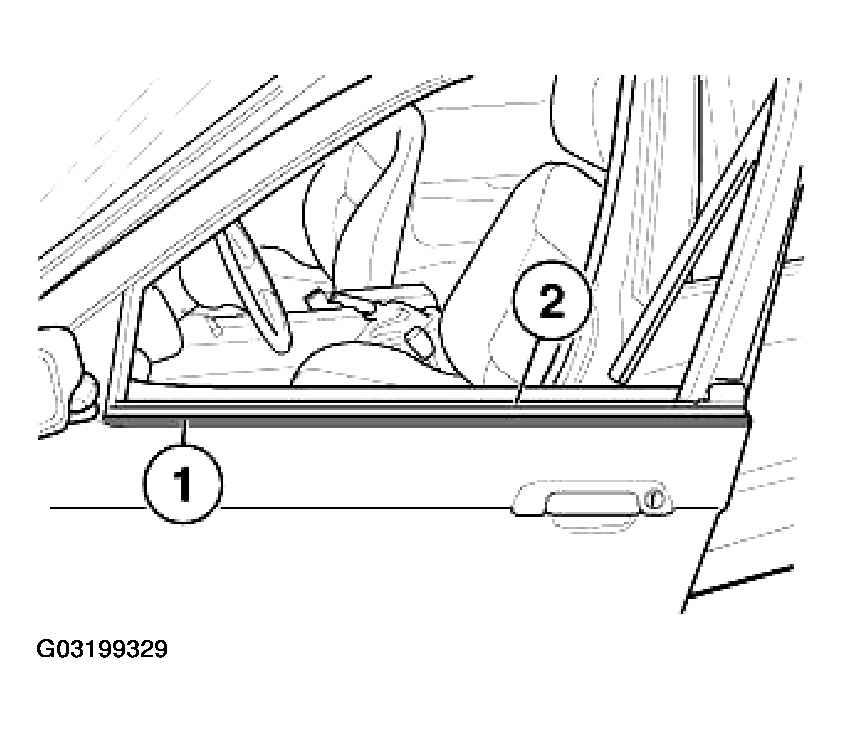

Fig 1: Attaching Adhesive Tape
G03199329Courtesy of BMW OF NORTH AMERICA, INC.

Using special tool 00 9 311, starting at back, (1) and moving to front (2), lift out window cavity cover strip.

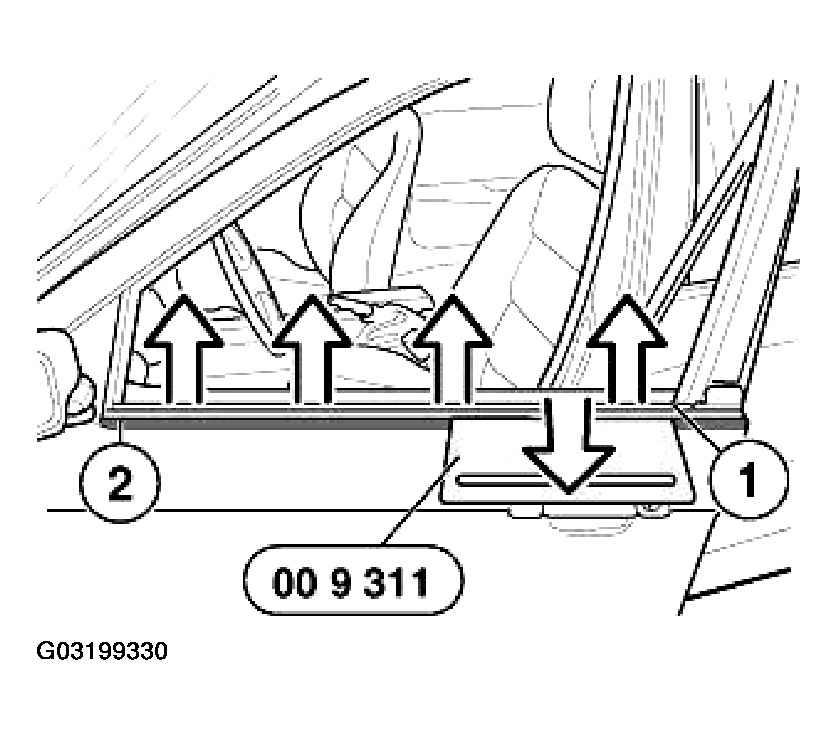

Fig 2: Removing Window Cavity Cover Strip
G03199330Courtesy of BMW OF NORTH AMERICA, INC.
