51 21 090 Removing and installing/replacing door lock on front left or right door (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Removing front door window, refer to 51 37 170 Removing and installing side window glass, rear left or right (Z3 Coupe, M Coupe) .

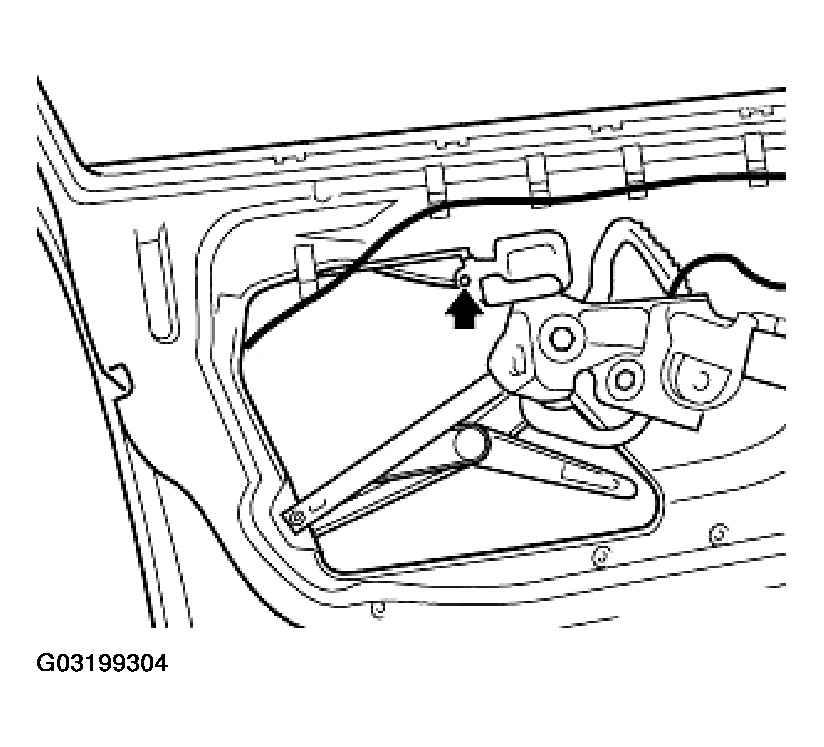

Unscrew bolt. Unhook door opener on linkage and remove.

Fig 1: Removing Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

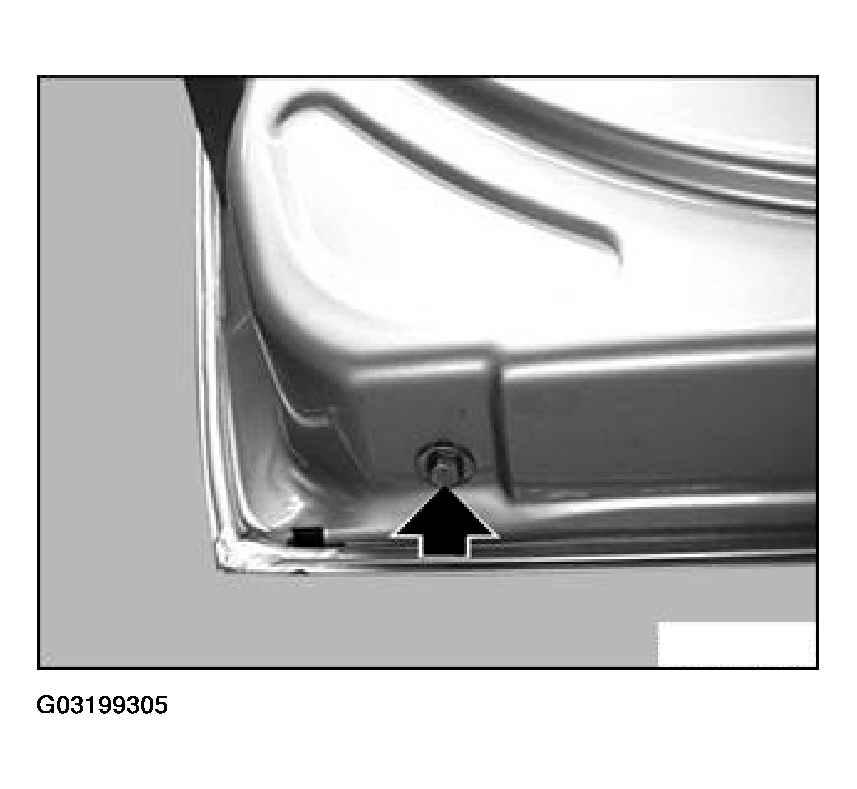

Unfasten lower screw on window guide rail.

Fig 2: Removing Lower Screw On Window Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

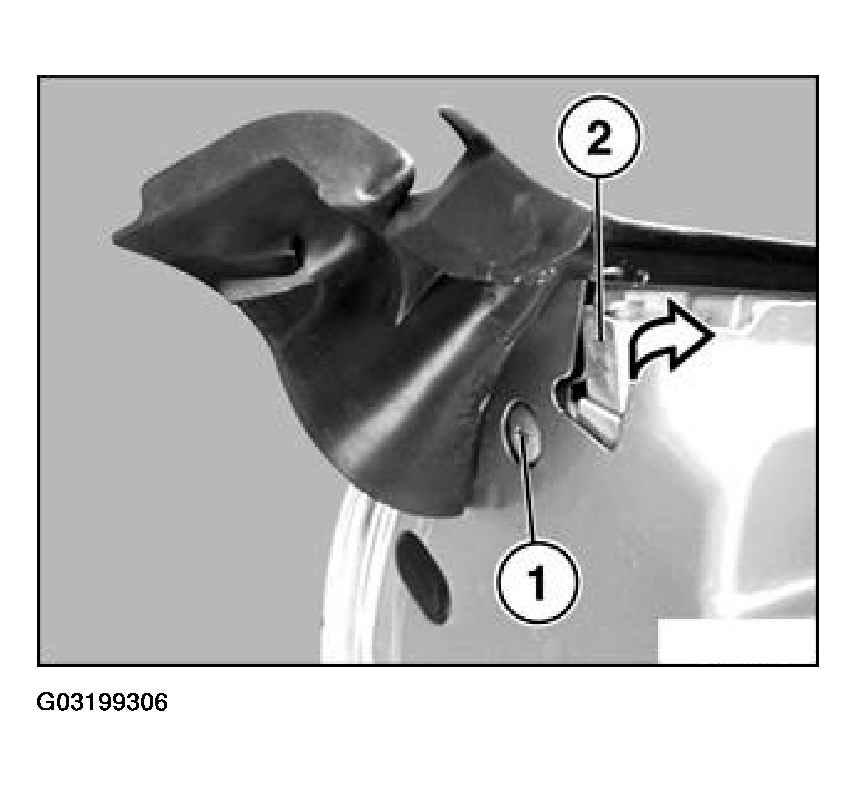

Unscrew bolt (1). Twist window guide rail (2) towards door hinge and remove through aperture in metal panel.

Fig 3: Removing Window Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.
