51 21 003 Replacing door detent (lock striker), front left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear side trim (lower section), refer to 51 43 015

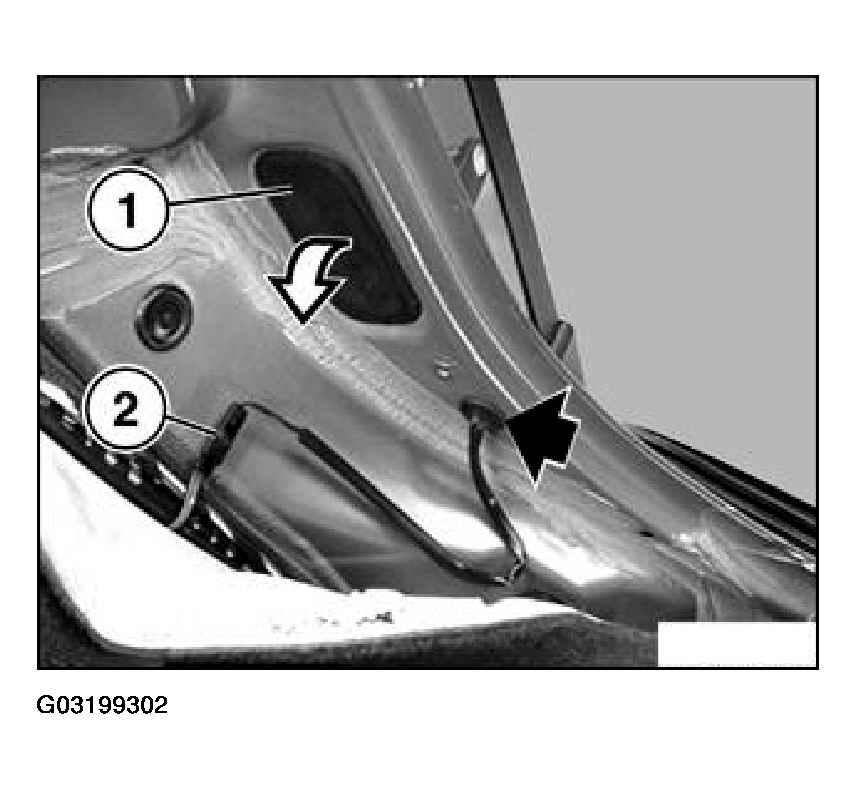

Lift off cover (1). Unfasten connector (2) and withdraw cable.

Fig 1: Withdrawing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

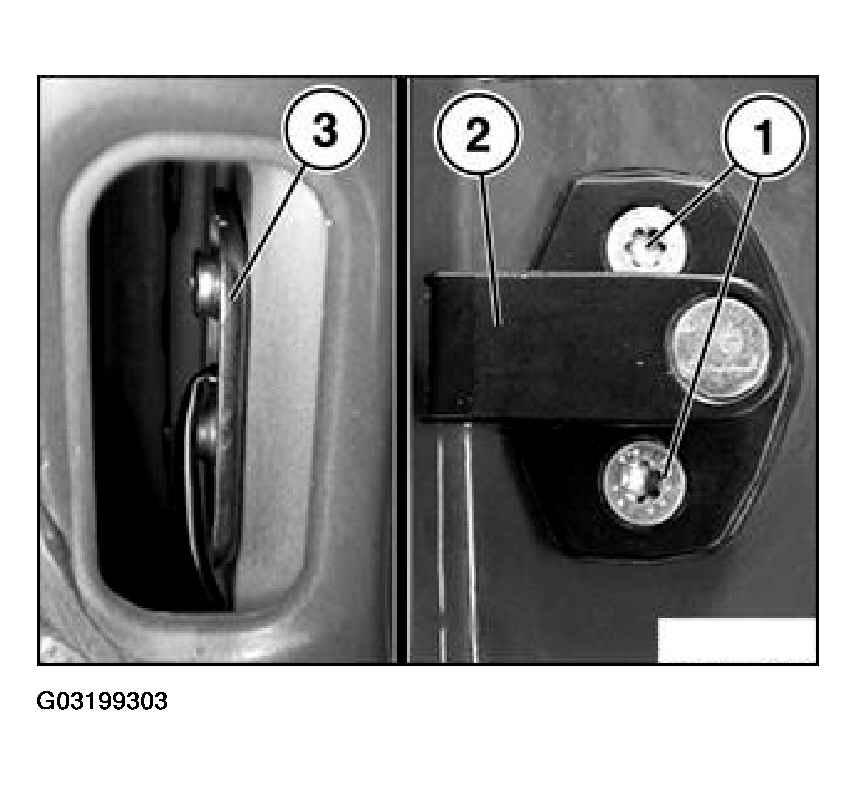

Unfasten screws (1) then remove threaded plate (2) and striker (3)

Fig 2: Removing Threaded Plate And Striker

Courtesy of BMW OF NORTH AMERICA, INC.
