Unscrew and remove license plate

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete front bumper.

Replace center section (support member) of front bumper:

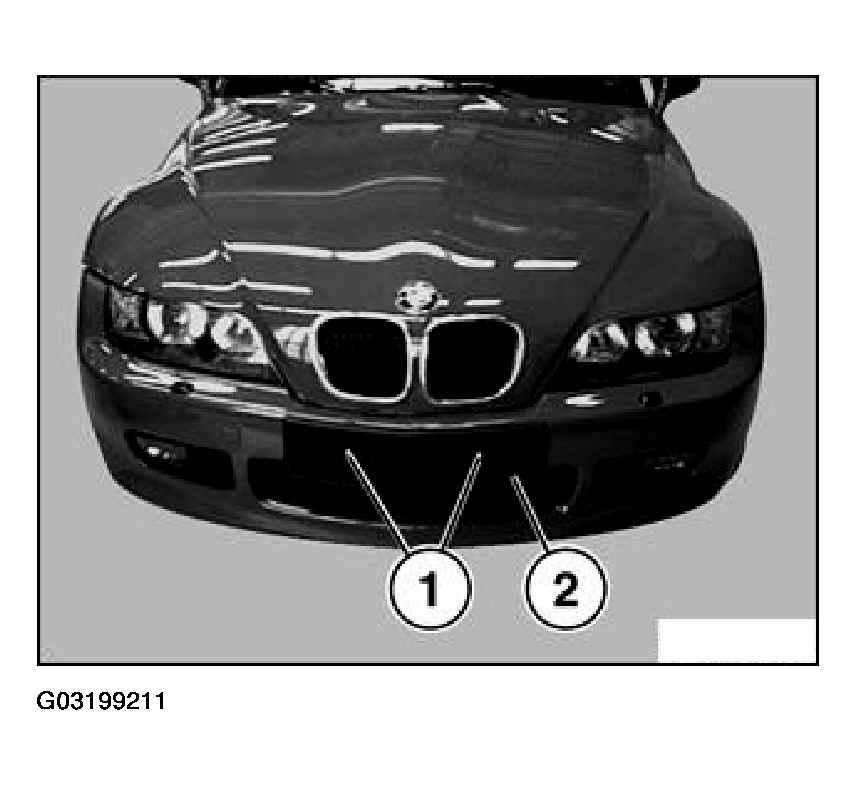

Unfasten screws (1) and remove license plate baseplate (2).

Fig 1: Removing License Plate Baseplate

Courtesy of BMW OF NORTH AMERICA, INC.

Version with headlight cleaning system:

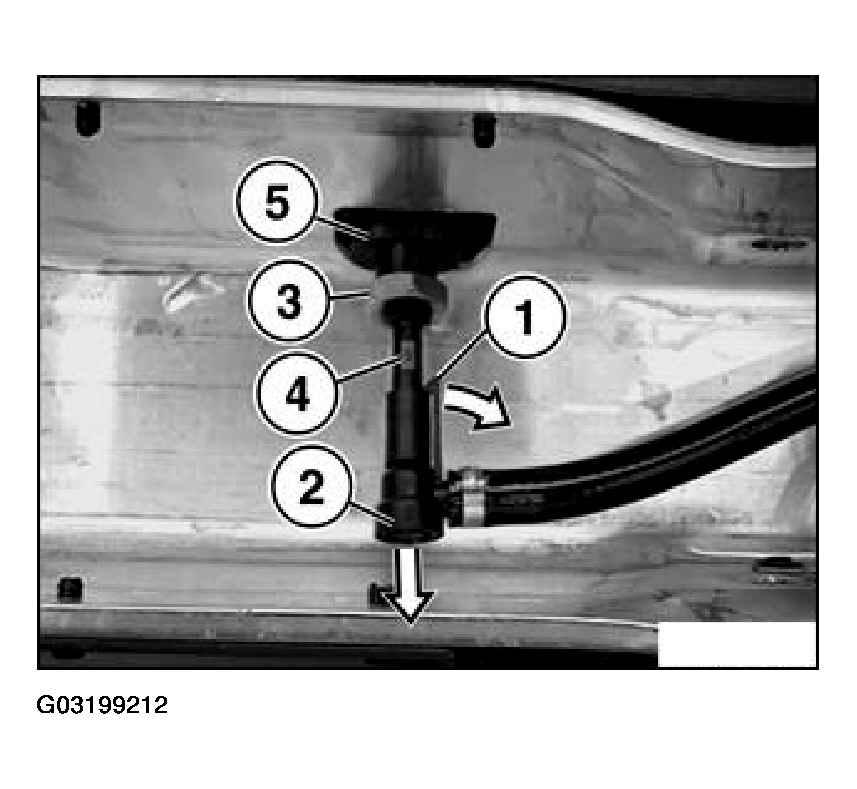

Lift out detent (1) and remove hose connection (2).

Unfasten nut (3).

Remove spray nozzle (4) and left/right clamping ring (5).

Fig 2: Removing Headlight Cleaning Components

Courtesy of BMW OF NORTH AMERICA, INC.

Version with headlight cleaning system:
