51 47 490 Removing and installing/replacing underbody protection, front (engine) (M Roadster, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten screws (1.. 2) and remove underbody protection (3).

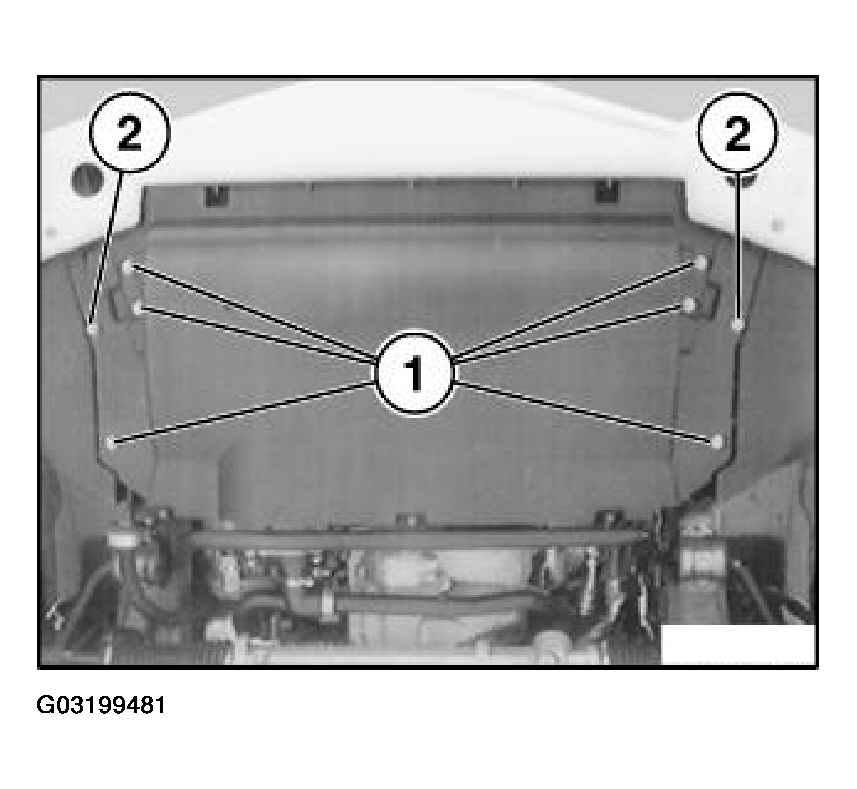

Fig 1: Removing Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.
