51 47 160 Removing and installing/replacing cover for CD changer/hi-fi amplifier (Z3 coupe, M coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove roller blind, refer to 51 47 145 Removing and installing/replacing roller sun blind (Z3 coupe, M coupe) .

Version with Harman Kardon speaker box:

If necessary, release expansion rivet (1) and remove cover (2).

Unclip cover (3) for amplifier at bottom backwards.

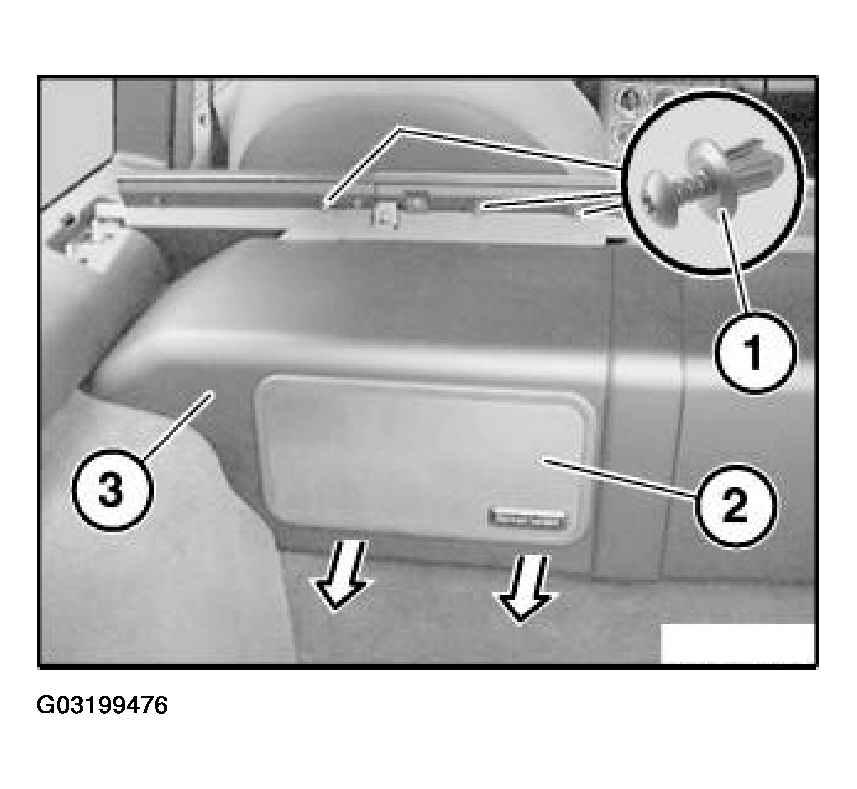

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Harman Kardon speaker box:
