51 47 160 Removing and installing/replacing cover for CD changer/hi-fi amplifier (Z3 coupe, M coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

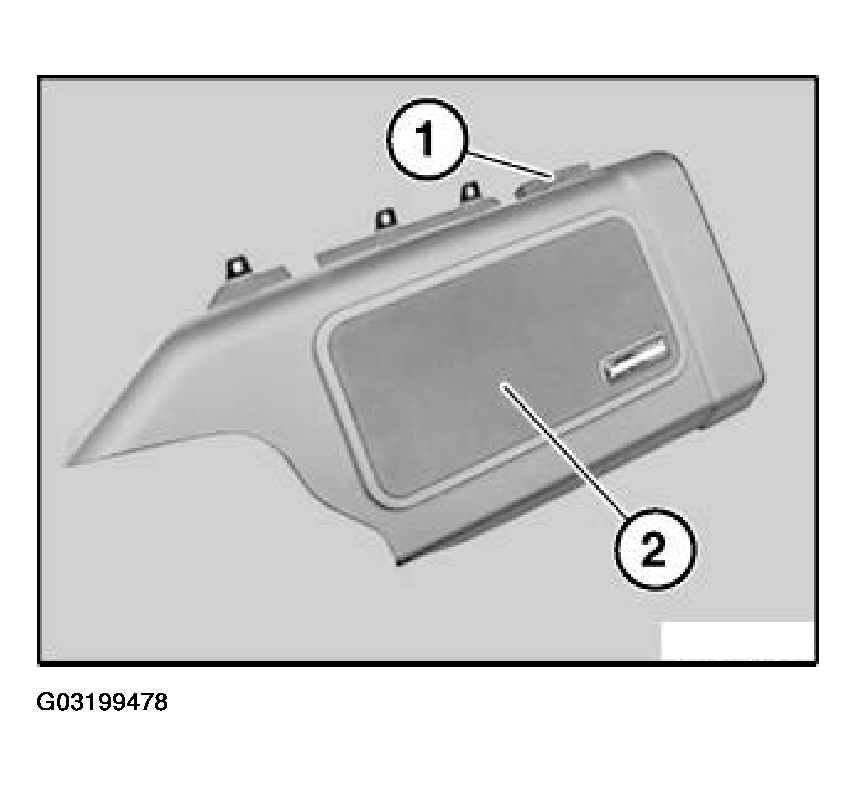

If necessary, replace faulty clips (1) on cover (2).

Fig 1: Removing Faulty Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Harman Kardon speaker box:

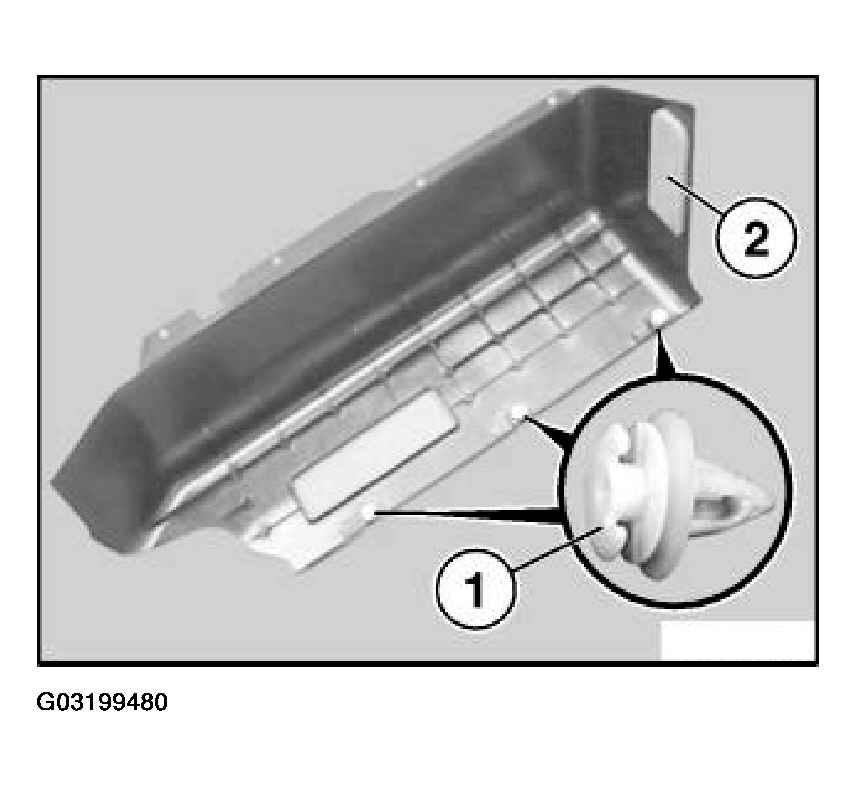

If necessary, replace foam (1) and (2).

Only replace:

Unclip cover (2).

Fig 1: Replacing Foam

Courtesy of BMW OF NORTH AMERICA, INC.

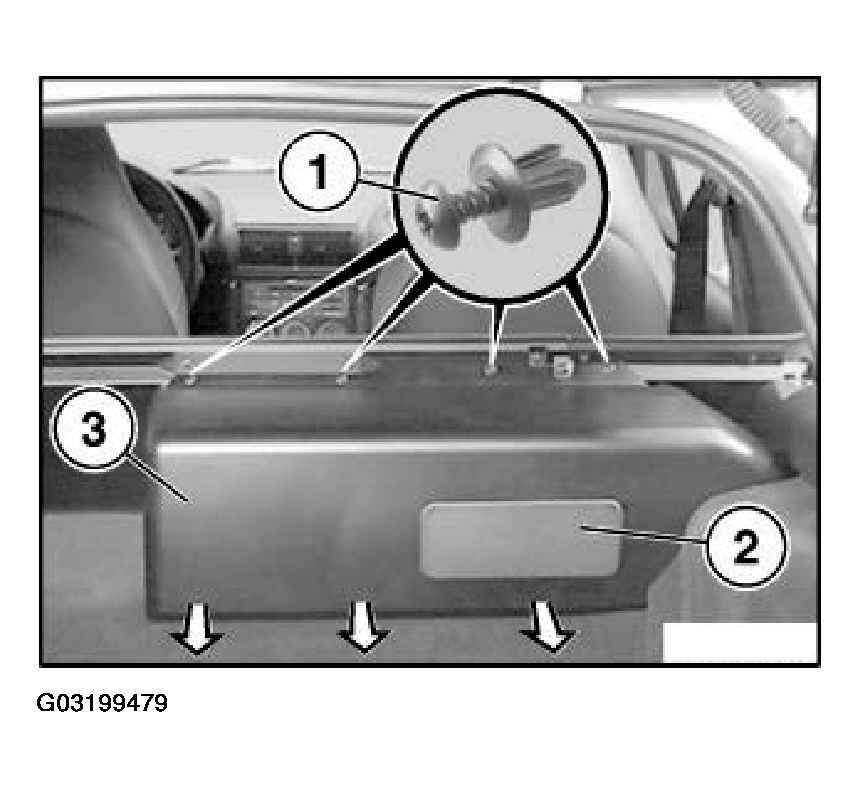

Release expansion rivet (1) and remove cover (2).

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (3) for amplifier at bottom backwards.

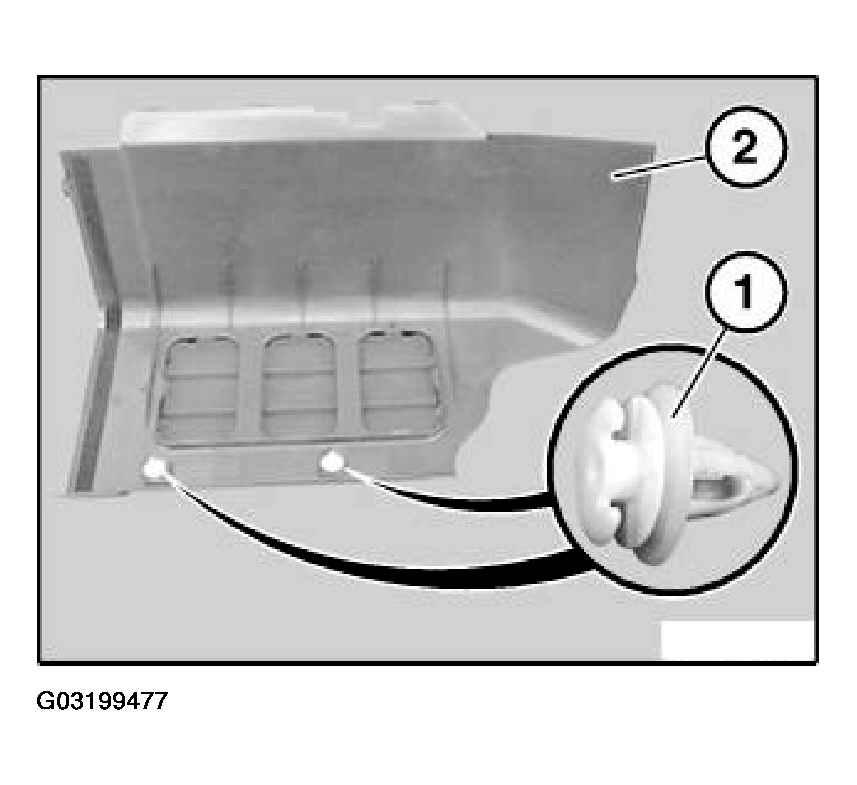

If necessary, replace faulty clips (1) and foam (2).

Fig 1: Removing Faulty Clips And Foam

Courtesy of BMW OF NORTH AMERICA, INC.
