51 47 155 Removing and installing/replacing breast in luggage compartment at rear left or right (Z3 coupe, M coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

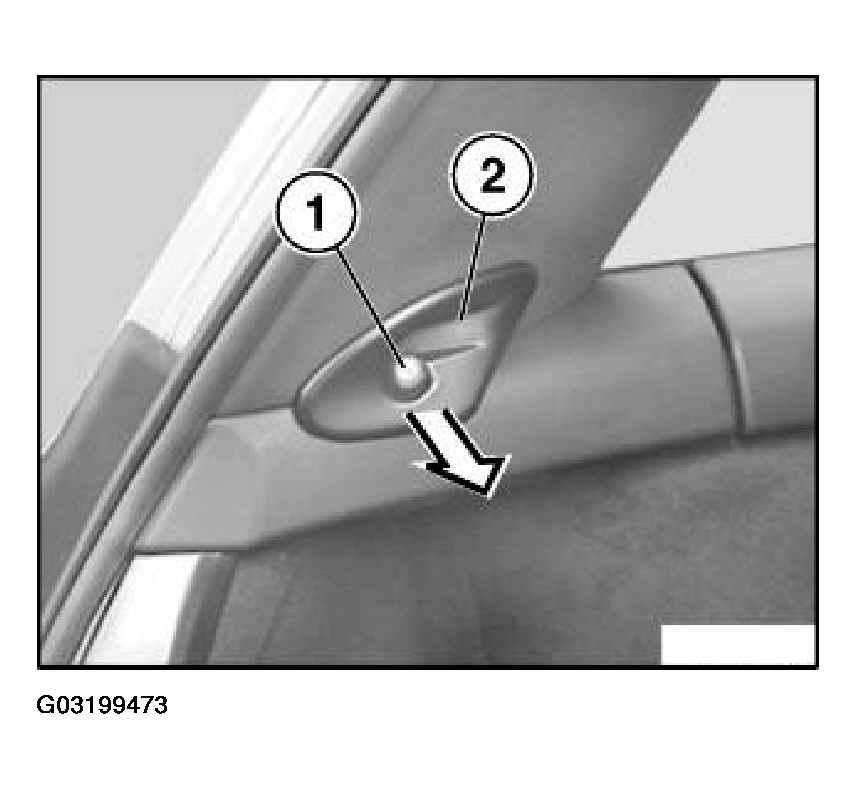

Release screw (1) and remove bracket (2) for roller sun blind.

Fig 1: Removing Bracket For Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

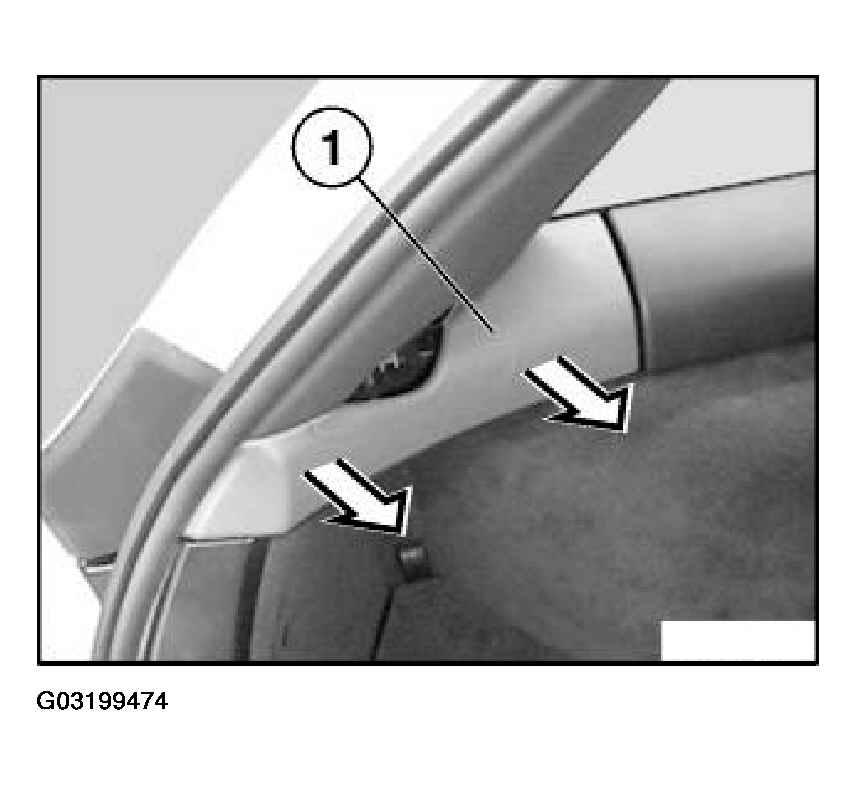

Detach breast (1) towards inside.

Fig 2: Removing Breast

Courtesy of BMW OF NORTH AMERICA, INC.
