51 47 151 Removing and installing/replacing left trunk wheel housing trim (Z3 coupe, M coupe): Notes
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Remove side finisher in luggage compartment at front left or right, refer to 51 47 154 Removing and installing side finisher in luggage compartment at front left or right (Z3 coupe, M coupe) .
Remove trim for rear roof pillar (C -pillar), refer to 51 43 251 Removing and installing/replacing panel for roof pillar at rear (C-pillar), left or right (Z3 coupe, M coupe) .
Remove trim for front luggage compartment floor, refer to 51 47 131 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM (Z3 COUPE, M COUPE)

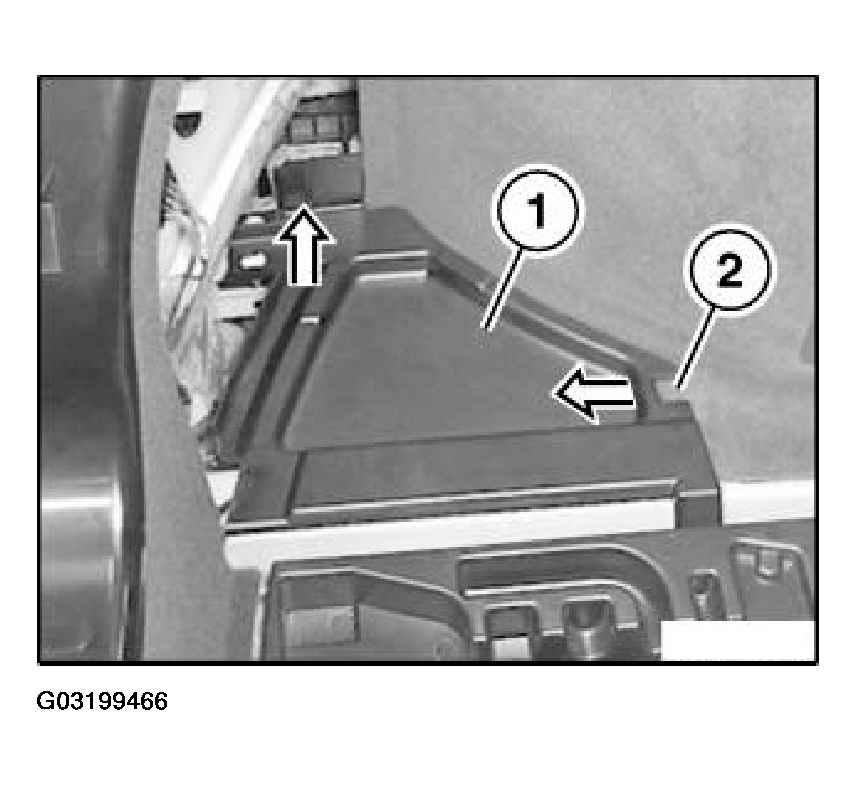

Unclip floor trim panel (1) upward, pull out of guide (2) toward rear and remove.
