51 47 151 Removing and installing/replacing left trunk wheel housing trim (Z3 coupe, M coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

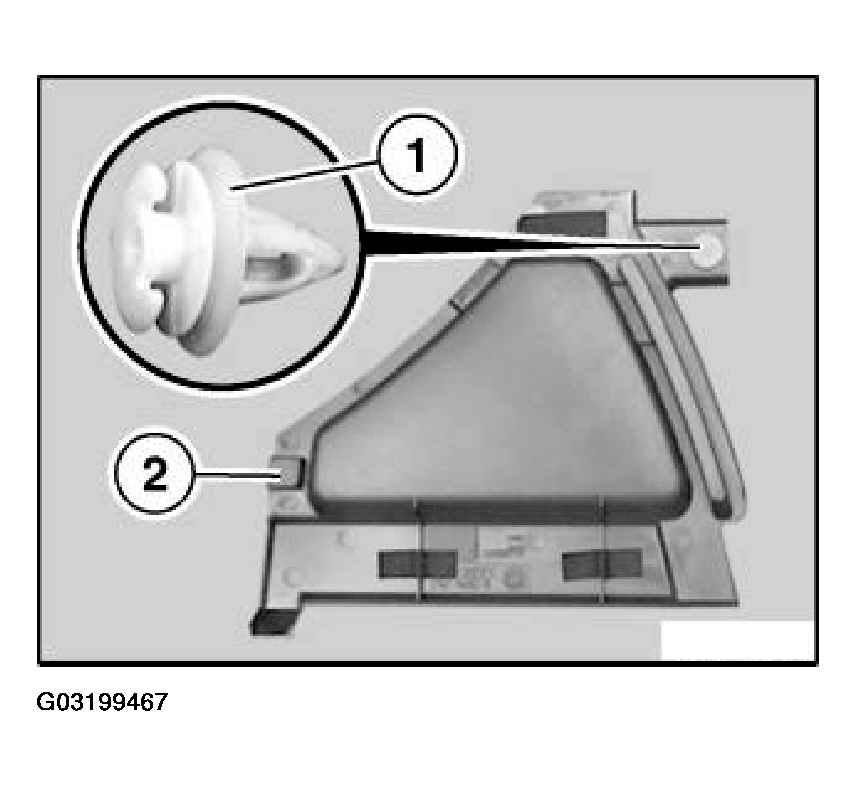

If necessary, replace defective clip (1).

The guide (2) must not be damaged.

Fig 1: Installing Clip

Courtesy of BMW OF NORTH AMERICA, INC.

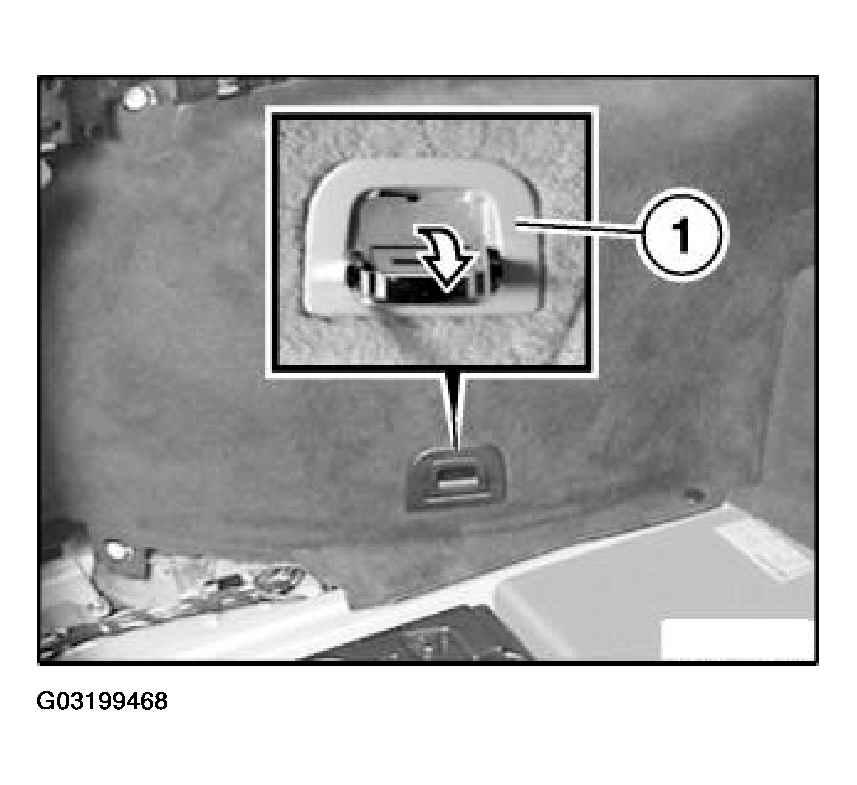

Lift lashing eye and lift out finisher (1).

Fig 2: Removing Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

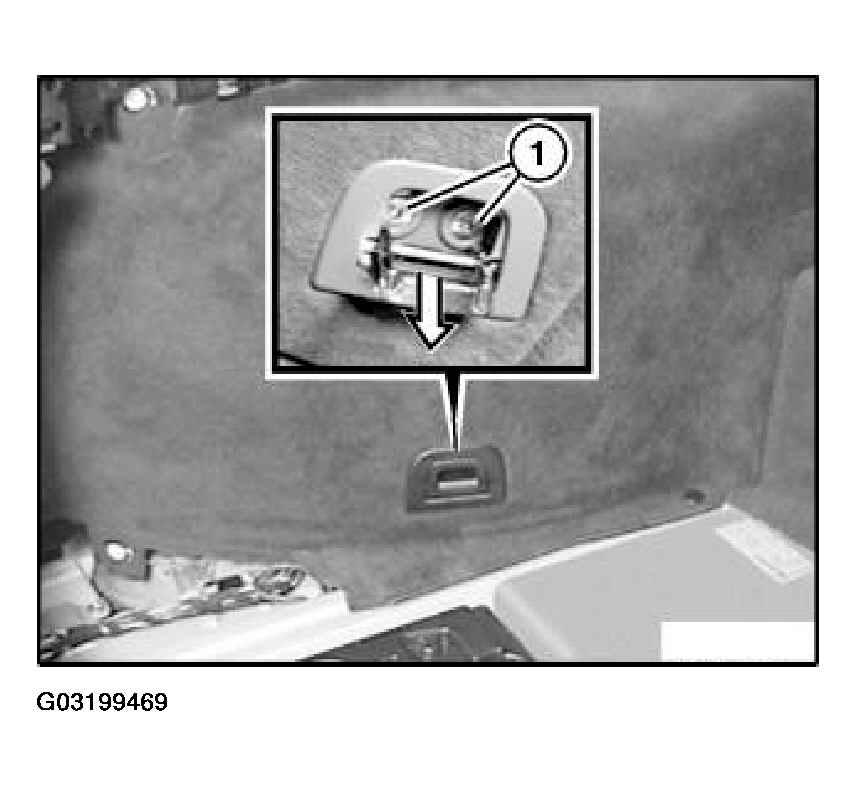

Lift lashing eye, unfasten screws (1) and take off lashing eye.

Fig 3: Removing Lashing Eye

Courtesy of BMW OF NORTH AMERICA, INC.

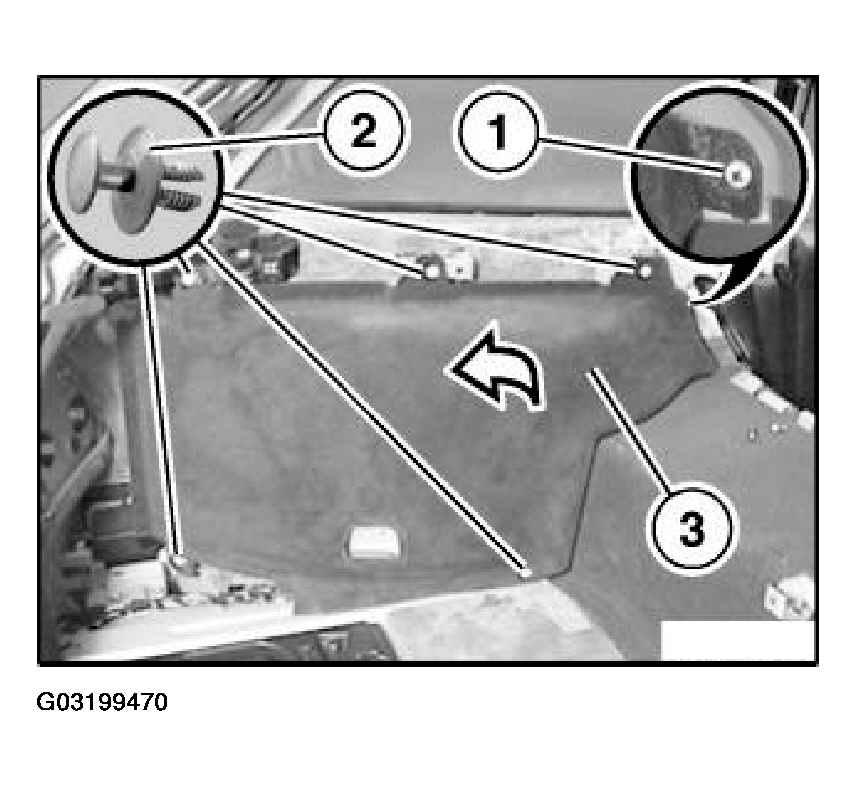

Unfasten screw (1) and expansion rivets (2).

Take out trunk wheel housing trim (3).

Fig 4: Removing Trunk Wheel Housing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
