51 47 101 Removing and installing/replacing luggage compartment floor trim panel (Z3 coupe, M coupe)

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

Fold corners (1) at grips inward and take out luggage compartment floor trim panel (2).

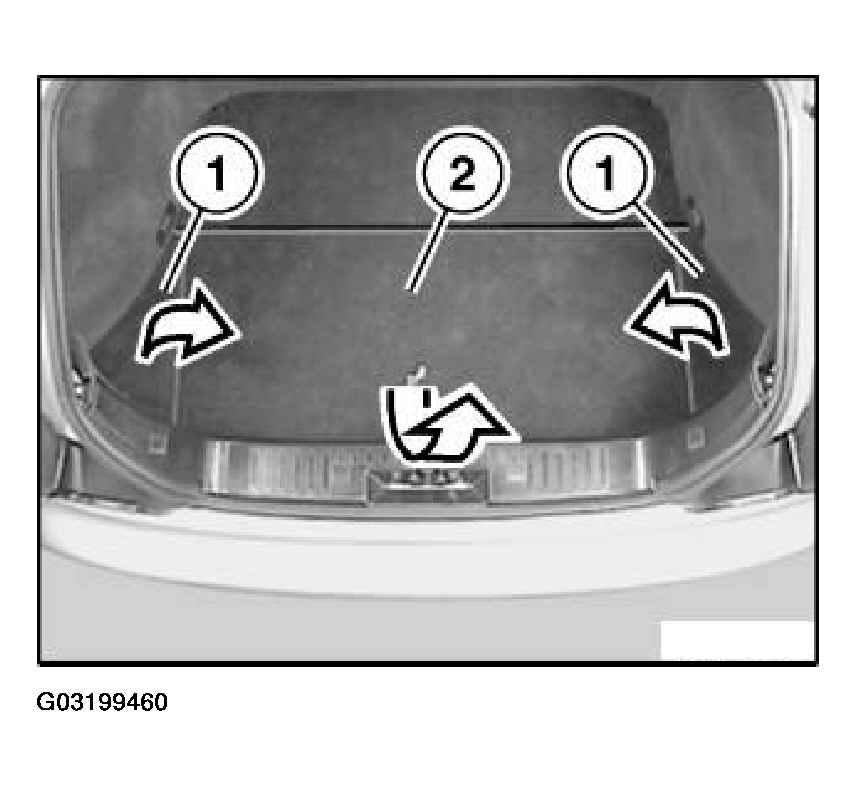

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
