51 47 080 Removing and installing/replacing finisher on B-pillar, left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Notes

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Remove finisher strip off front rocker panel, refer to 51 47 065 REMOVING AND INSTALLING/REPLACING COVER STRIP AT ENTRANCE, FRONT LEFT OR RIGHT (Z3 ROADSTER, M ROADSTER, Z3 COUPE, M COUPE)

Pull finisher strip (1) forwards to unclip.

If necessary, lift clips off panel.

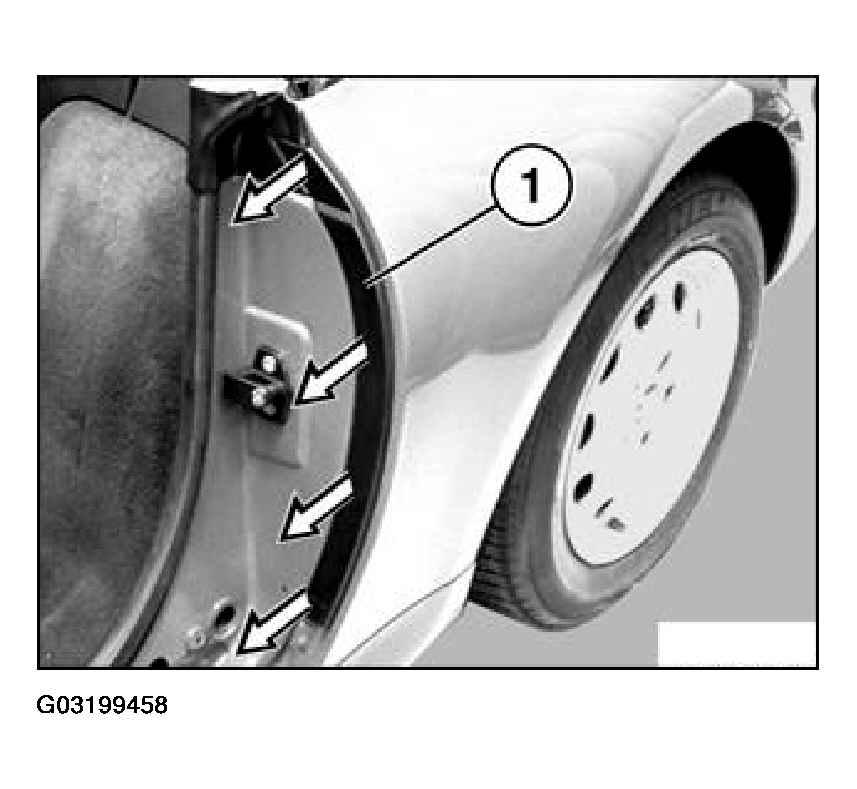

Fig 1: Removing Finisher Strip
G03199458Courtesy of BMW OF NORTH AMERICA, INC.
