51 47 080 Removing and installing/replacing finisher on B-pillar, left or right (Z3 Roadster, M Roadster, Z3 Coupe, M Coupe): Installation:

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Soak clips (1) in water for a short time.

Slide on clips (1).

If necessary, replace defective clips (1).

Guide (2) must not be damaged.

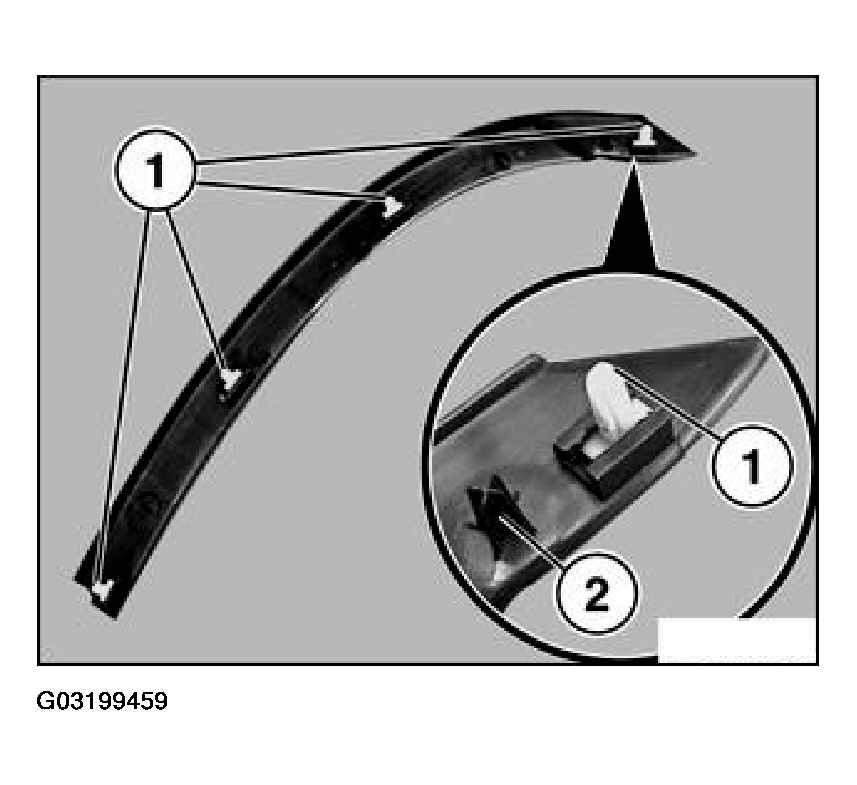

Fig 1: Installing Clips

Courtesy of BMW OF NORTH AMERICA, INC.
