51 49 000 Removing and installing or replacing trim for rear lid

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Open trunk lid.
Remove luggage compartment light in rear lid. Refer to 63 31 080 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT LIGHT .

Version with manual rear lid unlocking:

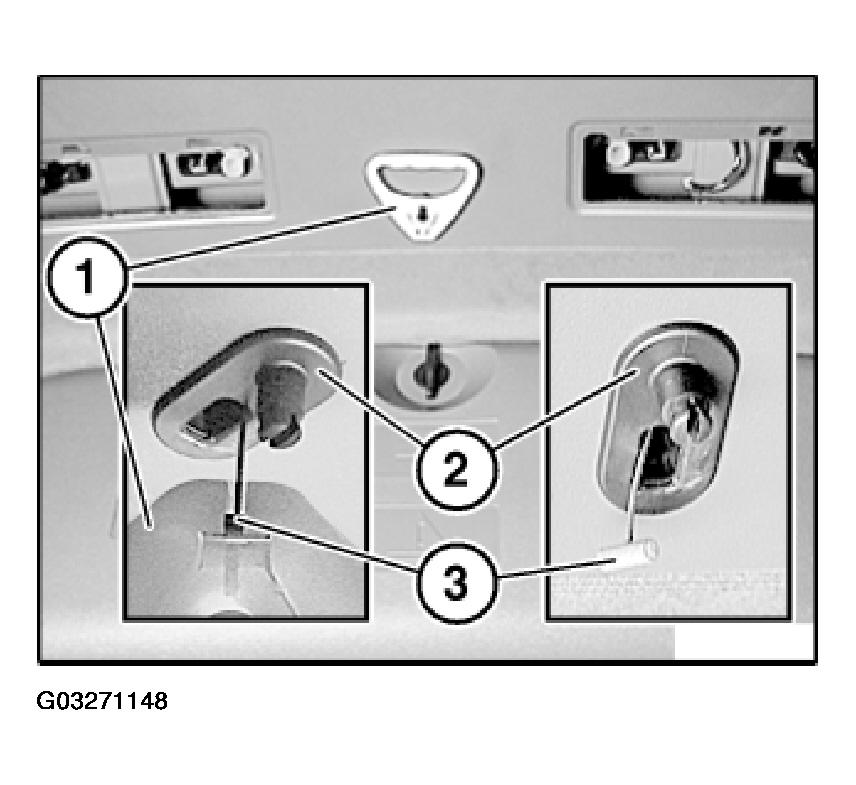

Detach handle (1) from clip (2).

Disconnect Bowden cable (3) from handle (1).

Installation:

Guide Bowden cable (3) through clip (2) and connect correctly in handle (1).

Fig 1: Identifying Handle And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

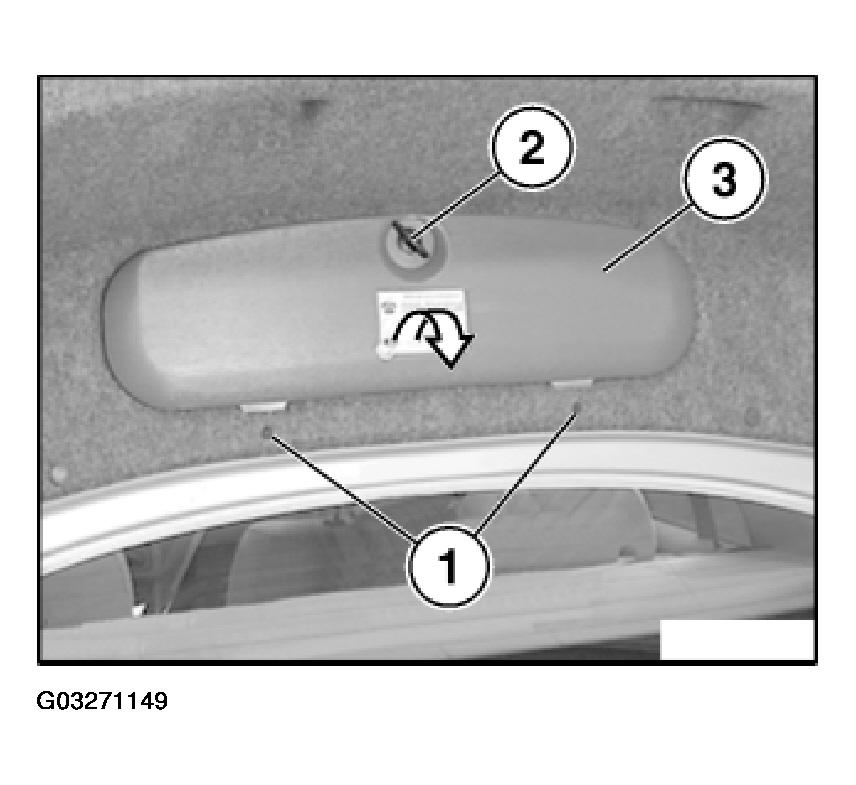

Remove screws (1) and (2).

Lever out retaining strap and detach tool kit (3).

Fig 2: Locating Screws For Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

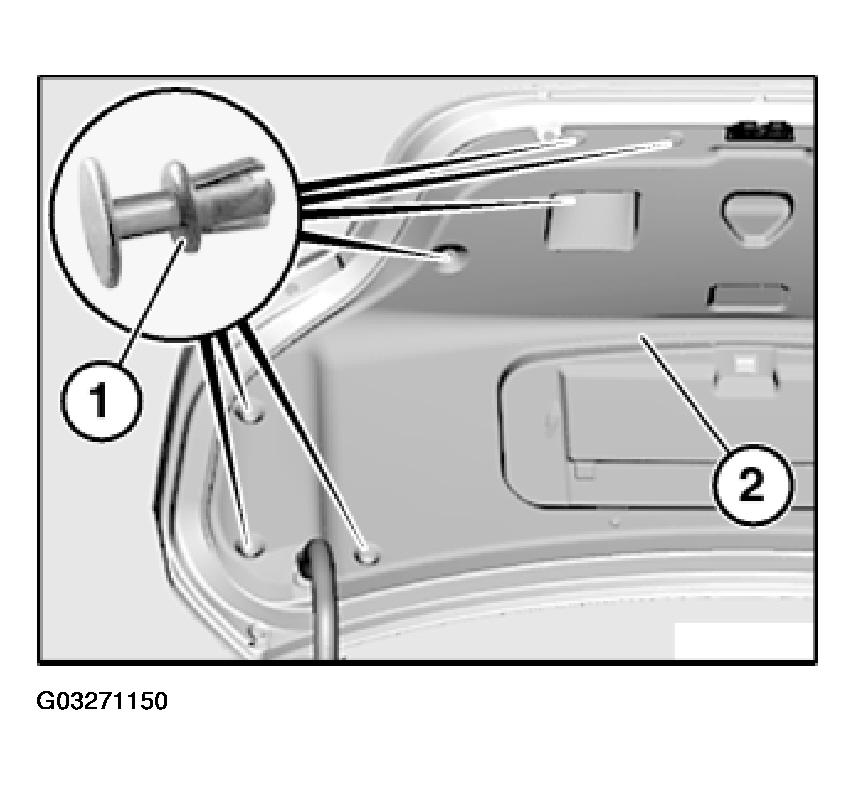

Release expansion rivets (1) on left and right.

Remove trim (2).

Fig 3: View Of Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
