51 22 370 Removing and installing/replacing cover at bottom left or right on rear door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

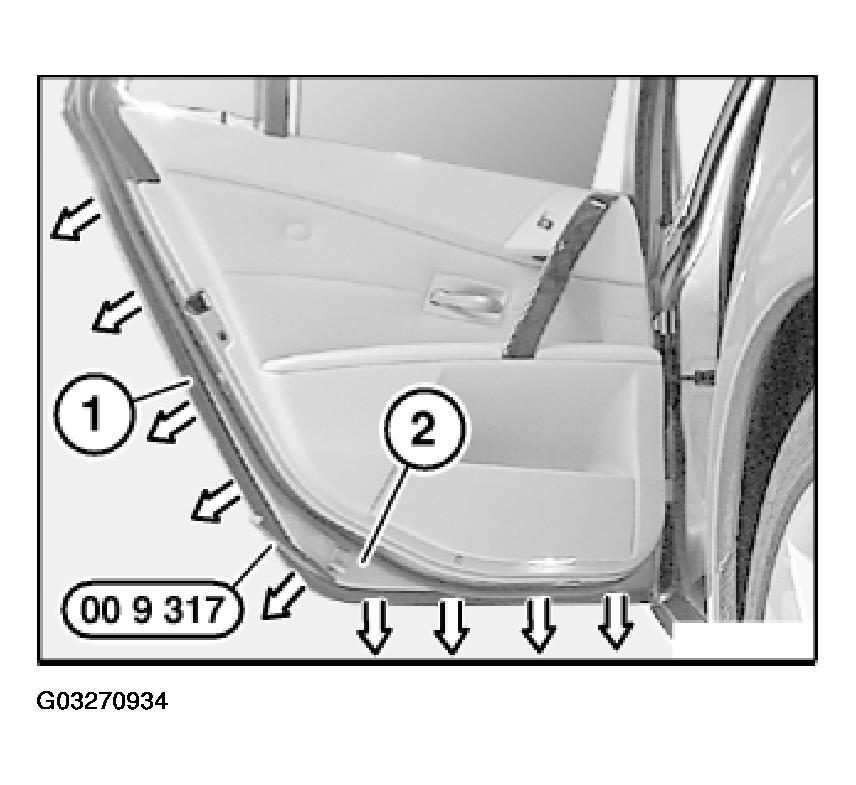

Pull off cover (1) with special tool 00 9 317 in direction of arrow from rear door (2).

Fig 1: Removing Cover With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

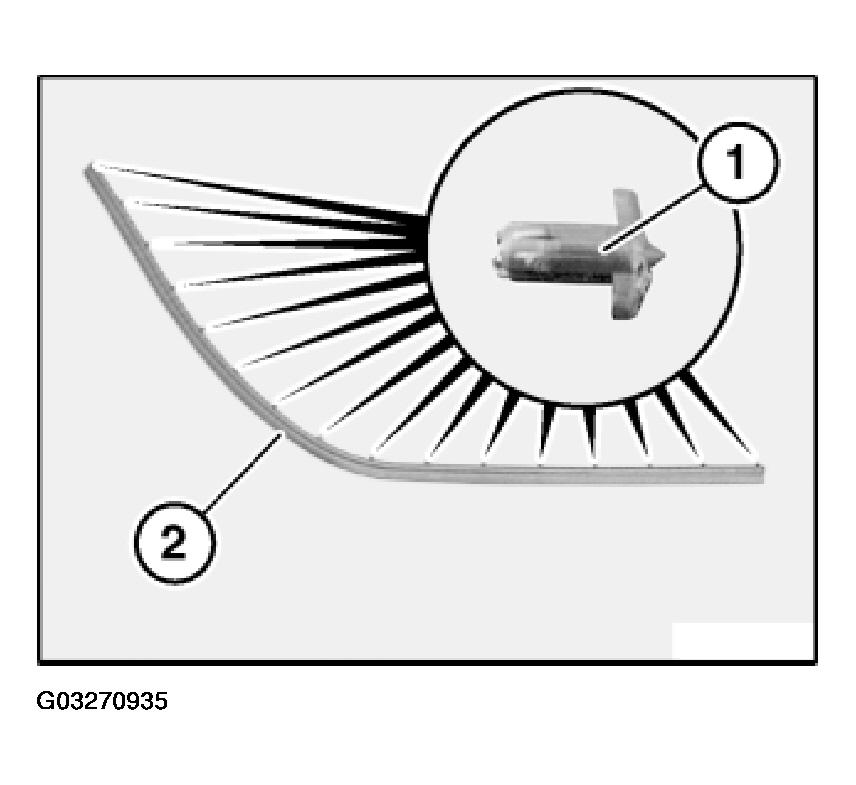

Clips (1) on cover (2) must not be damaged.

If necessary, replace clips (1).

Fig 2: Identifying Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.
