51 22 360 Replacing seal for door seam/roof frame on left or right rear door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

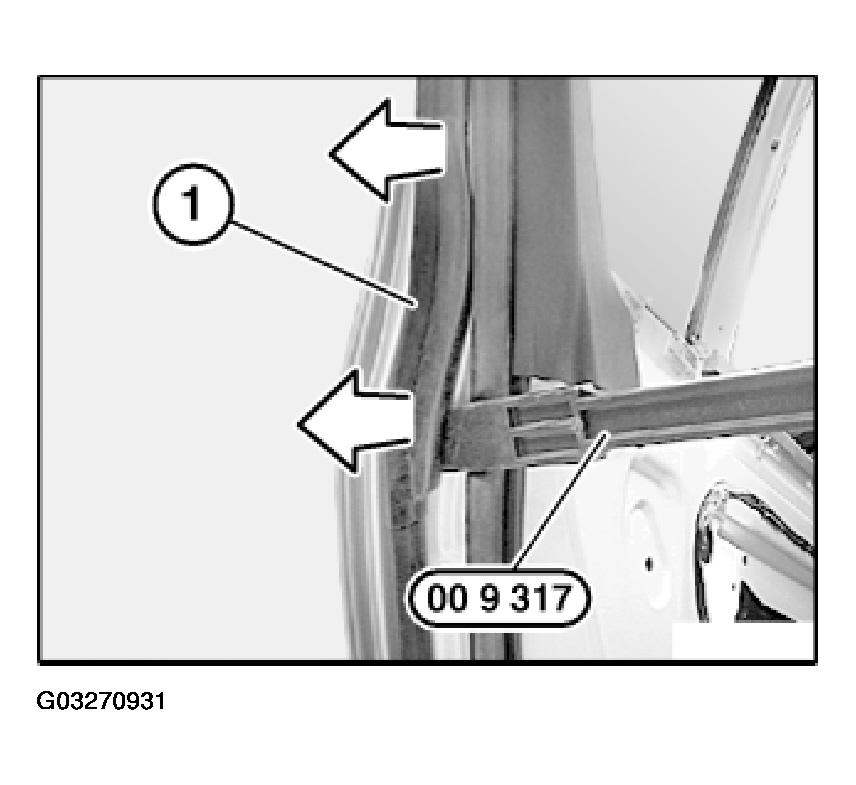

Lever out seal (1) at rear with special tool 00 9 317 in direction of arrow.

Fig 1: Removing Seal With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

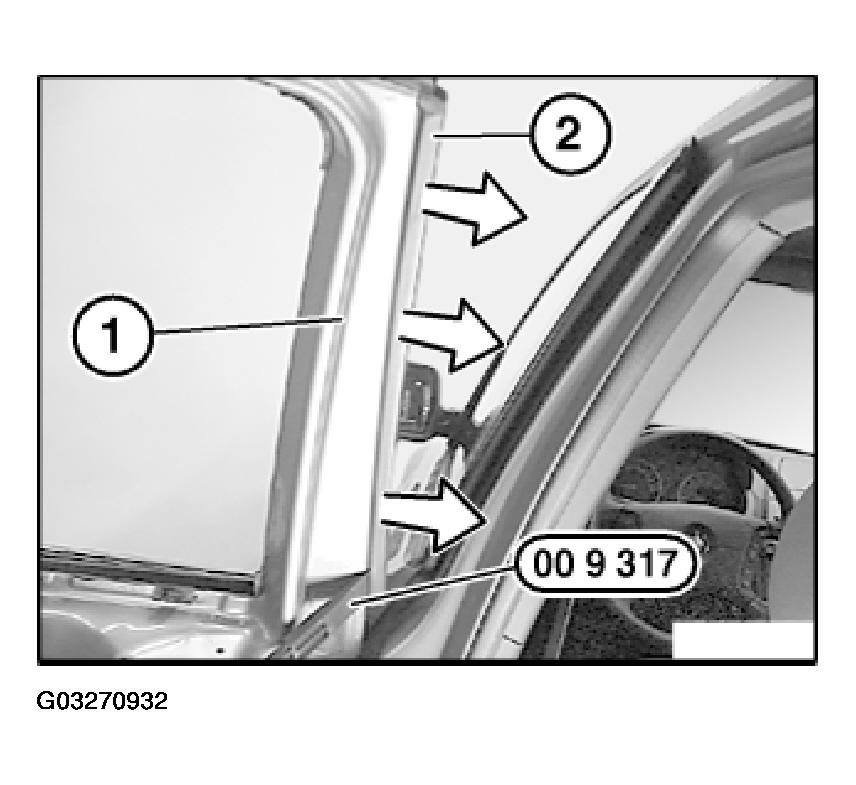

Lever out seal (1) on door window frame at front (2) with special tool 00 9 317.

Fig 2: Removing Seal On Door Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

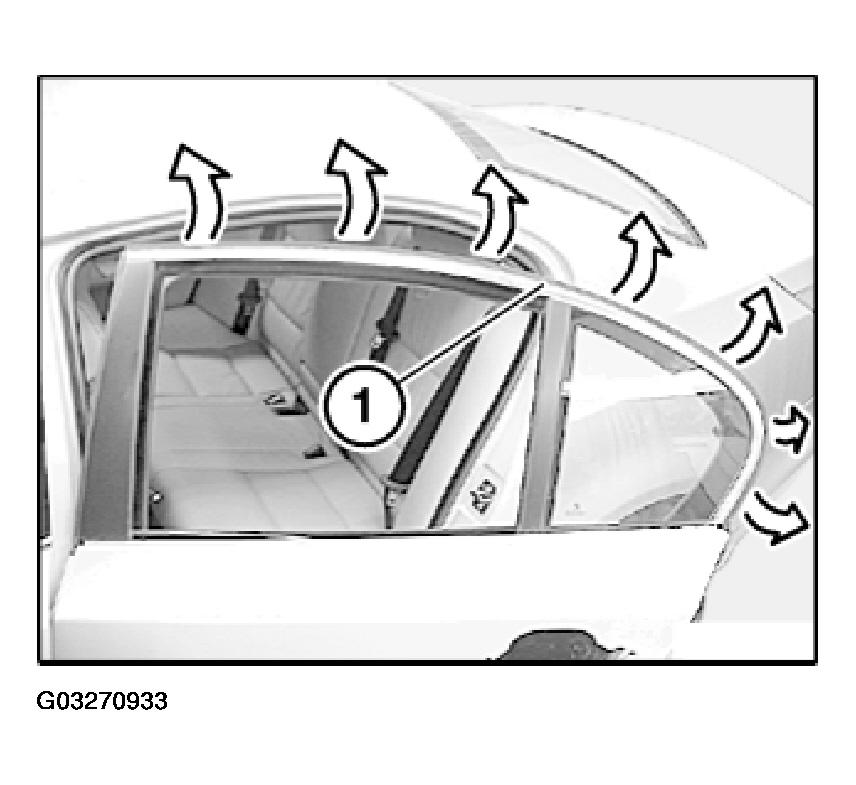

Starting at rear, pull off seal (1) towards front.

Fig 3: Removing Rear Door Seal

Courtesy of BMW OF NORTH AMERICA, INC.
