51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

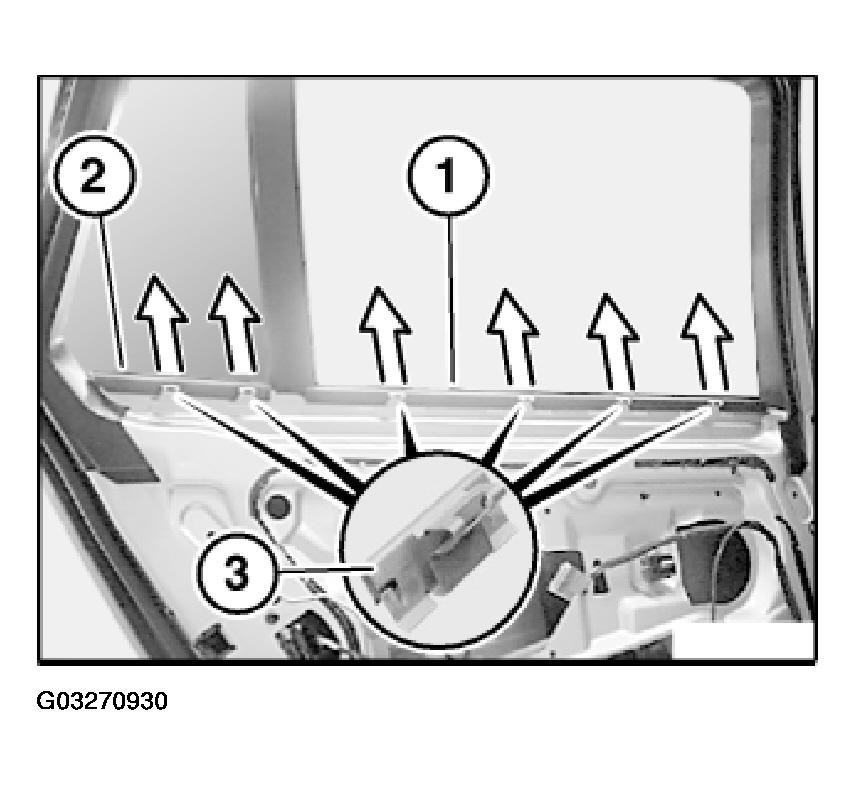

Pull window cavity cover strip at front (1) and rear (2) from rear door.

Installation:

If necessary, replace faulty clips (3).

Moisten window cavity cover strips (1 and 2) with water before fitting.

Fig 1: Locating Window Cavity Cover Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement With Security Version:

Cut front window cavity cover strip to length on side of fixed door window glass to 533 mm.

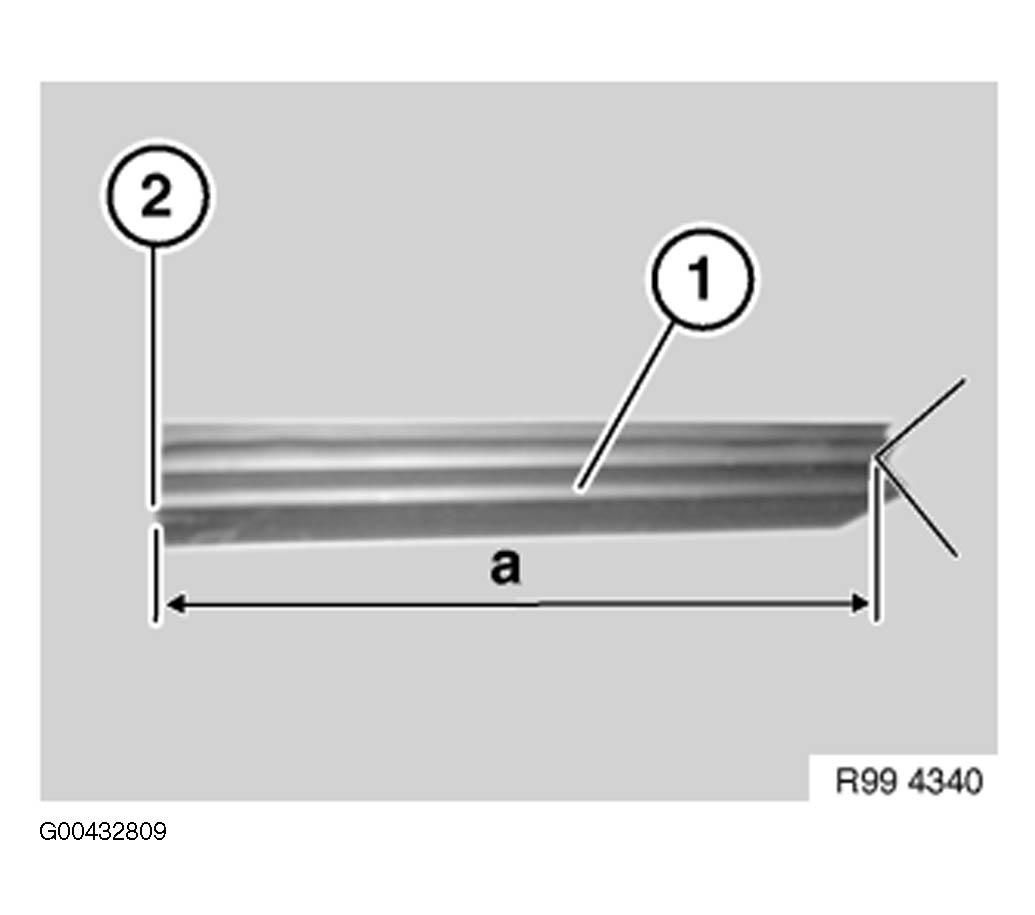

Cut rear window cavity cover strip (1) to length on straight side (2) to measurement a = 153 mm.

Fig 2: View Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
