51 22 300 Removing and installing/replacing window cavity cover strip on rear door on left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 324

IMPORTANT: Observe procedure for using special tool 00 9 324. Refer to 51 2. ... REMOVING WINDOW CAVITY COVER STRIP WITH SPECIAL TOOL 00 9 324 AT FRONT OR REAR .

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

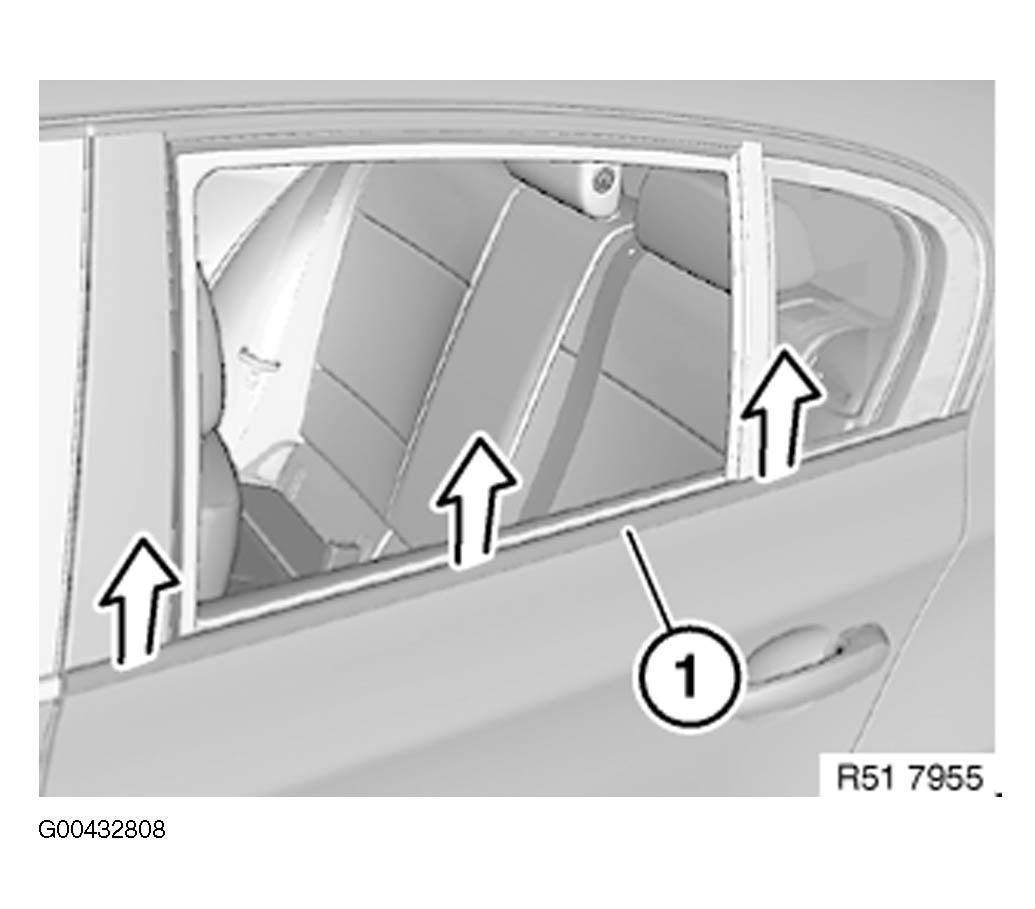

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

Fig 1: Removing Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

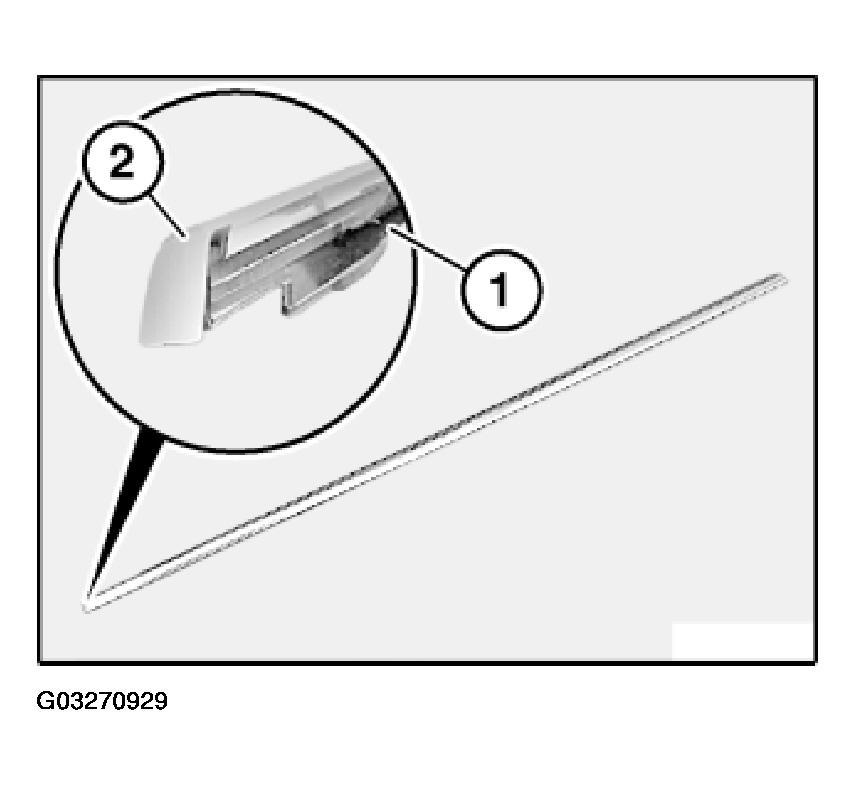

Seal (1) must be correctly fitted in chrome strip (2).

Fig 2: View Of Seal In Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.
