51 22 126 Removing and installing/replacing carrier for outside door handle on left or right rear door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove outside handle on rear door. Refer to 51 22 170 REMOVING AND INSTALLING/REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR .
Disconnect Bowden cable from door lock. Refer to 51 21 090 REMOVING AND INSTALLING/REPLACING DOOR LOCK IN LEFT OR RIGHT FRONT DOOR .
If necessary, remove side impact protection in rear door. Refer to 51 22 ... REMOVING AND INSTALLING/REPLACING SIDE IMPACT PROTECTION IN LEFT OR RIGHT REAR DOOR .

NOTE: Version with Comfort Access/CA: CA sensor (2) must not be damaged.

Unlock catches (2) on carrier (1).

Press carrier (1) behind door outer skin (3).

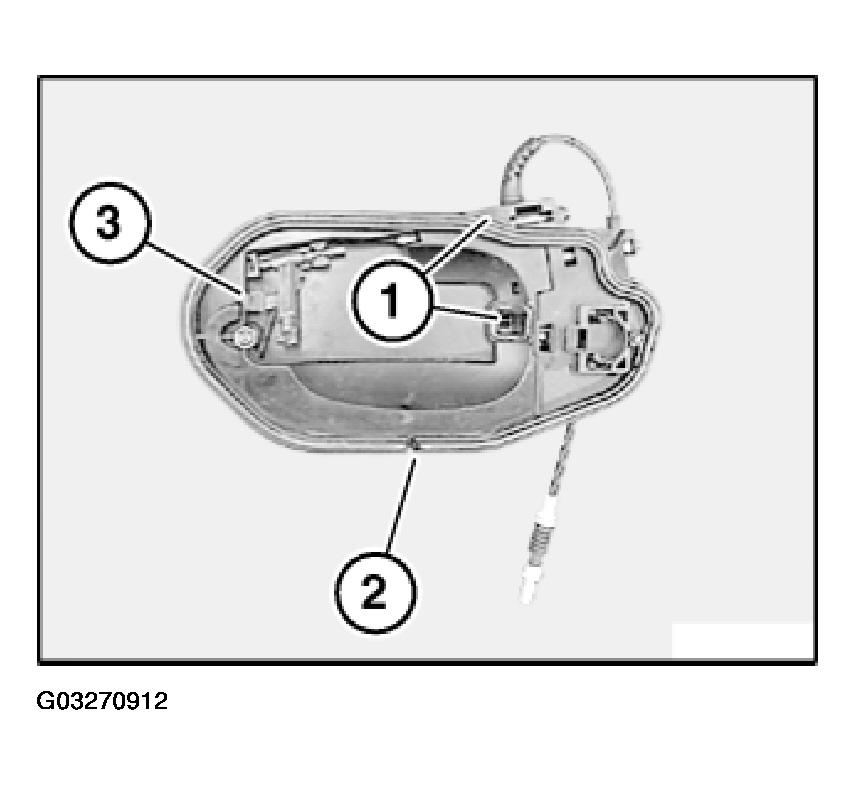

Fig 1: Identifying CA Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug on CA module.

Pull carrier (3) towards rear/top until screw (1) of sheet metal slot (2) is free.

Remove carrier (3) for outside door handle.

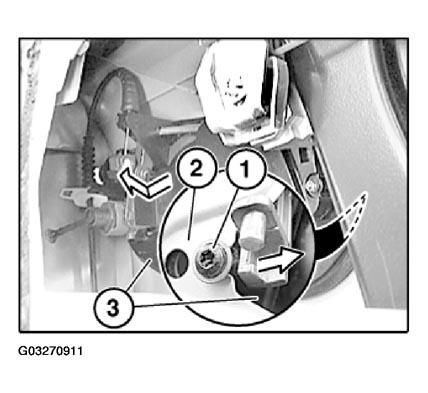

Fig 2: Removing Carrier For Outside Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on carrier (3) must not be damaged.

IMPORTANT: Water drainage channel (2) must not be fouled/clogged.

Replacement:

If necessary, remove Bowden cable for outside door handle. Refer to 51 22 233 REMOVING AND INSTALLING/REPLACING BOWDEN CABLE FOR OUTSIDE DOOR HANDLE ON LEFT OR RIGHT REAR DOOR .

Version with Comfort Access/CA:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .

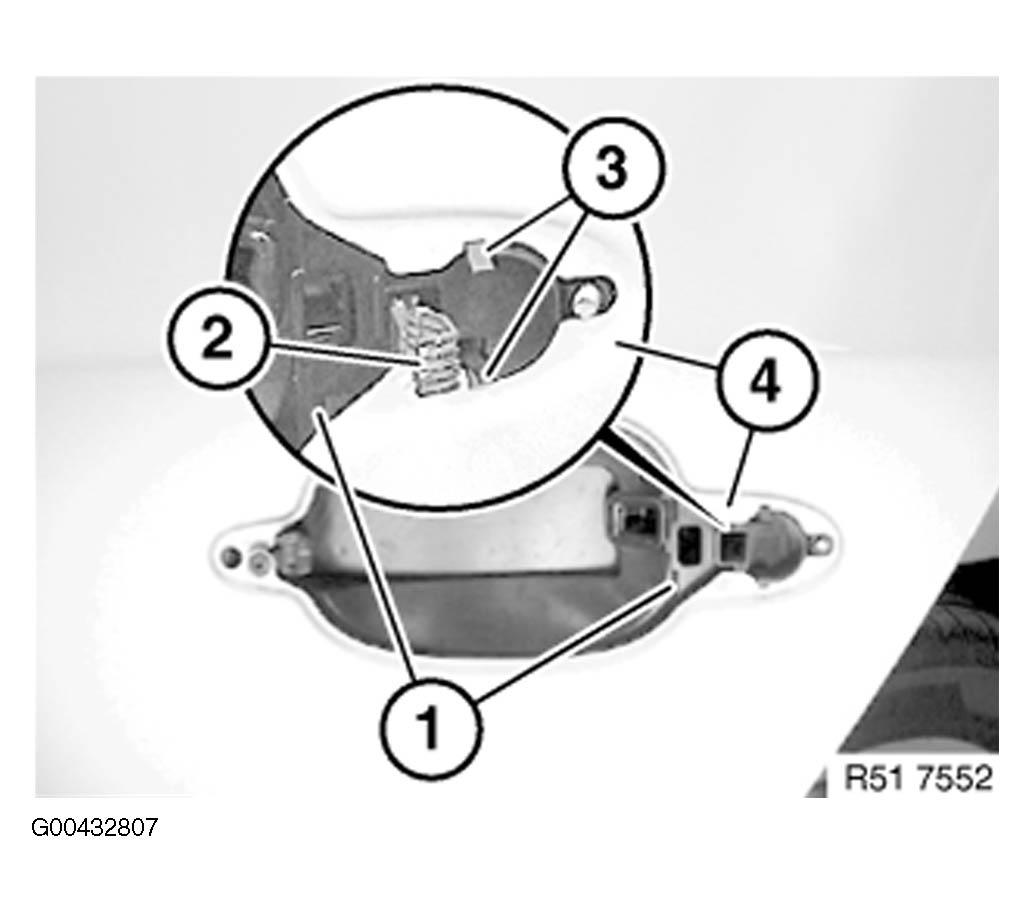

Fig 3: View Of Seals On Carrier
