51 22 001 Replacing door detent (lock striker), rear left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE & GENERAL INFORMATION - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

00 9 317

Operation up to "cover on rear door detent" is identical to:

Replacing front left or right door detent. Refer to 51 21 003 REPLACING DOOR DETENT (LOCK STRIKER), FRONT LEFT OR RIGHT .

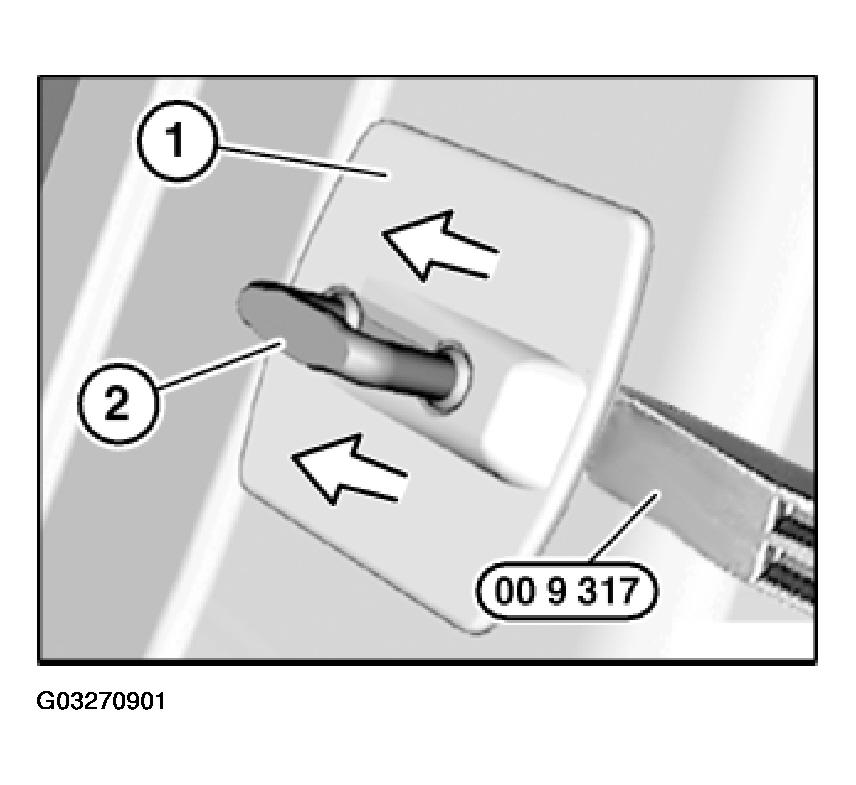

Unclip cover (1) with special tool 00 9 317 from door detent (2) and remove towards front.

Fig 1: Removing Cover With Special Tool From Door Detent

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

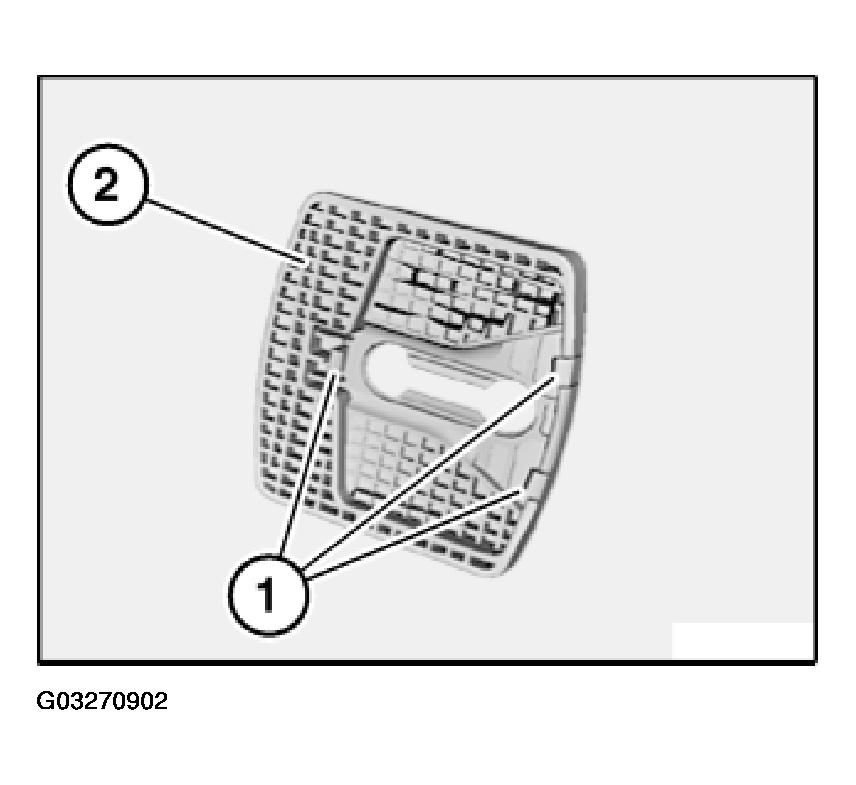

Catches (1) on cover (2) must not be damaged.

Fig 2: View Of Catches On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
