51 16 405 Removing and installing or replacing blind at side window of left or right rear door
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL .

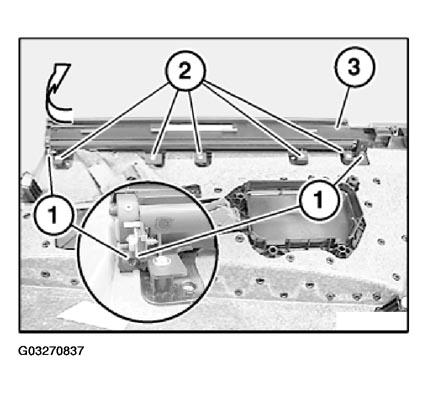

Release screws (1 and 2) and remove roller sun blind (3) in direction of arrow.
