51 16 400 Removing and installing/replacing roller sun blind on fixed side window of left or right rear door

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

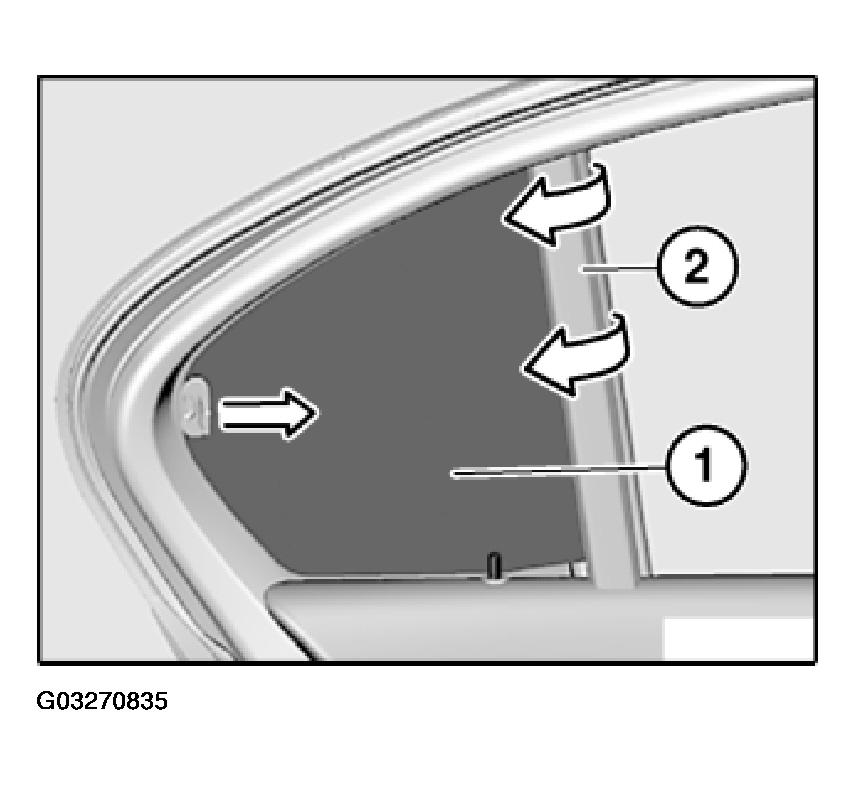

Retract roller sun blind (1).

Open side window.

Unclip holder (2) on roller sun blind (1) in direction of arrow.

Installation:

Holder (2) must not be damaged.

Fig 1: Retracting Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

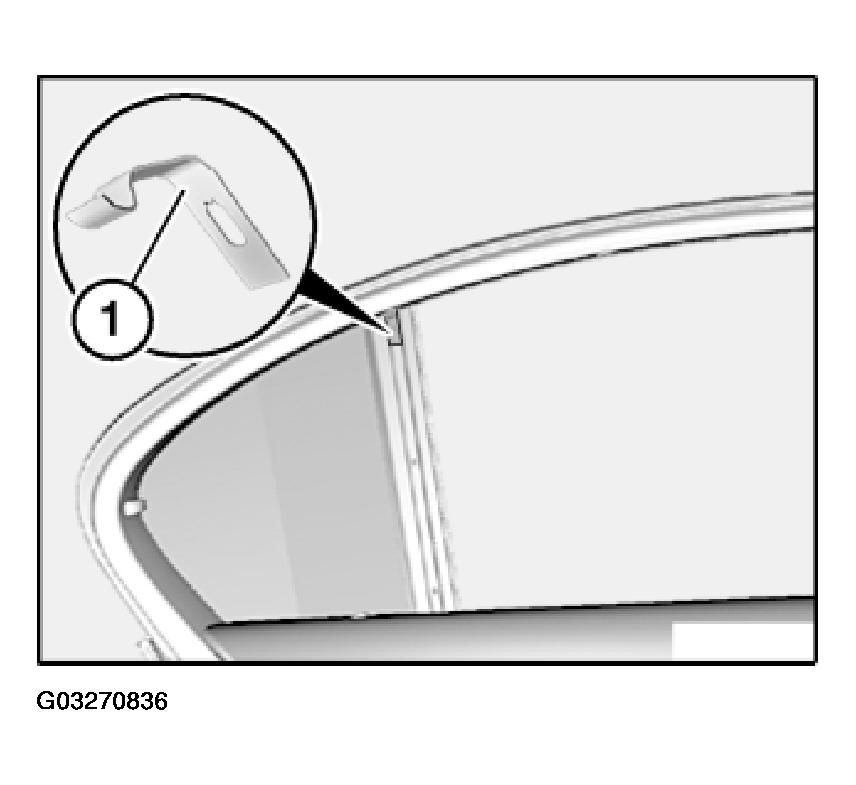

Snap roller sun blind into retaining clip (1).

Retaining clip (1) must not be damaged.

Fig 2: Snaping Roller Sun Blind Into Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.
